Main Control Cover - 3.5L GTDI: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC |
MERCON® LV |

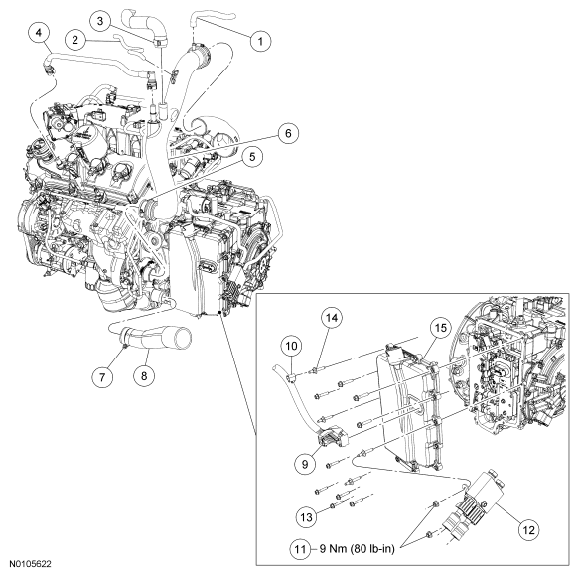

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake booster vacuum hose |
| 2 | - | Wastegate solenoid vacuum hose |
| 3 | - | LH bypass hose |
| 4 | - | Crankcase vent tube |
| 5 | - | LH turbocharger inlet hose clamp (2 required) |
| 6 | - | LH turbocharger inlet hose |
| 7 | - | LH turbocharger-to-Charge Air Cooler (CAC) hose clamp |
| 8 | - | LH turbocharger-to-CAC hose |
| 9 | 7A488 | Connector - transaxle harness |
| 10 | 14A169 | Retainer - transaxle harness |
| 11 | W520101 | Nuts - transmission fluid cooler thermal cooler bypass valve |
| 12 | 7H322 | Valve - transmission fluid cooler thermal bypass |
| 13 | 7J289 | Bolt - main control cover (11 required) |
| 14 | W708442 | Studbolt - main control cover (3 required) |
| 15 | 7G004 | Cover - main control |
