Main Control Valve Body: Notes

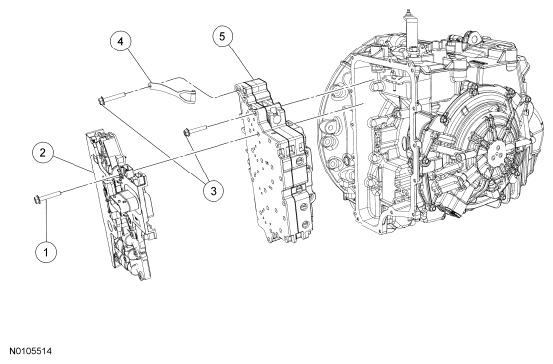

Fig 1: Exploded View Of Main Control Valve Body
G06260006Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7J291 Bolt - solenoid body
2 7Z369 Solenoid body
3 7J291 Bolts - valve body
4 7E332 Manual valve detent spring
5 7A100 Valve body
