Clockspring Internal Paddle Shifter Circuits

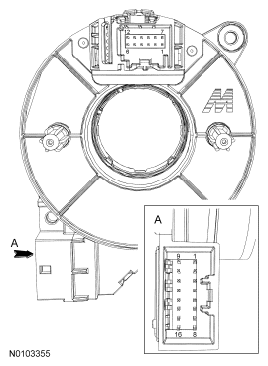

Fig 1: Clockspring Internal Paddle Shifter Circuits Diagram
G06258749Courtesy of FORD MOTOR CO.
Clockspring Pin Number C218B End Component Side Clockspring Pin Number C218A End Component Side Circuit Function
6 3 Upshift signal
2 7 Ground supplied from PCM
12 11 Downshift signal
