Selector Lever Bezel: Installation

All vehicles

1. Install the selector lever boot on the selector lever bezel.
   Fig 1: Locating Selector Lever Boot

   Courtesy of FORD MOTOR CO.
2. Install the selector lever trim ring on the selector lever bezel and check that the 4 tabs are latched on the selector lever bezel.
   Fig 2: Locating PRNDL Trim Ring Tabs

   Courtesy of FORD MOTOR CO.
3. If equipped, route the TCS wiring harness through the selector lever bezel. Connect the lighting electrical connector, PRNDL illumination electrical connector and grade assist button electrical connector, if equipped and position the selector lever knob and bezel in place on the selector lever and the center console.
   Fig 3: Locating Lighting Electrical Connector, PRNDL Illumination Electrical Connector And Grade Assist Button Electrical Connector

   Courtesy of FORD MOTOR CO.

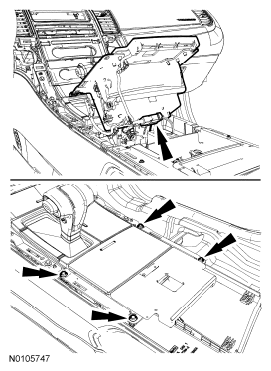

4. Install the 4 selector lever bezel screws.
   Fig 4: Locating Selector Lever Bezel Screws

   Courtesy of FORD MOTOR CO.
5. Connect the storage compartment lighting electrical connector, position the storage compartment on the center console and install the 4 screws.
   Fig 5: Locating Storage Compartment Lighting Electrical Connector And Storage Compartment Screws

   Courtesy of FORD MOTOR CO.
6. Connect the electrical connectors and install the 2 center console trim panels.
   Fig 6: Locating Center Console Trim Panels And Electrical Connectors

   Courtesy of FORD MOTOR CO.

   Vehicles equipped with paddle shifters

7. Position the selector lever knob on the selector lever.

   All vehicles

8. Install the 2 selector lever knob screws.
   Fig 7: Locating Selector Lever Knob Screws

   Courtesy of FORD MOTOR CO.
9. Slide the selector lever knob bezel up and install it on the selector lever bezel knob.
   Fig 8: Sliding Selector Lever Knob Bezel Down

   Courtesy of FORD MOTOR CO.
