Selector Lever Bezel: Removal

All vehicles

1. Slide the selector lever knob bezel down to access the 2 selector lever knob screws.
   Fig 1: Sliding Selector Lever Knob Bezel Down

   Courtesy of FORD MOTOR CO.
NOTE: If equipped with a Transmission Control Switch (TCS), do not pull the selector lever knob off of the selector lever.
Fig 2: Locating Selector Lever Knob Screws
Courtesy of FORD MOTOR CO.
2. Remove the 2 selector lever knob screws.

   Vehicles equipped with paddle shifters

3. Remove the selector lever knob.

   All vehicles

4. Pull up on the 2 center console trim panels and remove the 2 trim panels from the center console. Disconnect the electrical connectors and remove the trim panels.

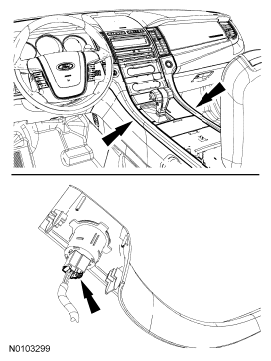

   Fig 3: Locating Center Console Trim Panels And Electrical Connectors

   Courtesy of FORD MOTOR CO.
5. Remove the 4 screws and remove the storage compartment from the center console. Disconnect the lighting electrical connector and remove the storage compartment.

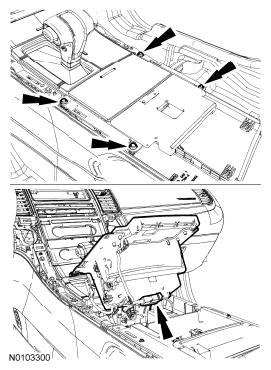

   Fig 4: Locating Storage Compartment Screws And Lighting Electrical Connector

   Courtesy of FORD MOTOR CO.
6. Remove the 4 selector lever bezel screws.
   Fig 5: Locating Selector Lever Bezel Screws

   Courtesy of FORD MOTOR CO.
7. Position the selector lever bezel and the selector lever knob off of the selector lever and the center console. Disconnect the lighting electrical connector, PRNDL illumination electrical connector and grade assist button electrical connector, if equipped and remove the selector lever knob and bezel.
   Fig 6: Locating Lighting Electrical Connector, PRNDL Illumination Electrical Connector And Grade Assist Button Electrical Connector

   Courtesy of FORD MOTOR CO.
8. Release the 4 tabs and remove the PRNDL trim ring off of the selector lever bezel.
   Fig 7: Locating PRNDL Trim Ring Tabs

   Courtesy of FORD MOTOR CO.
9. Remove the selector lever boot from the selector lever bezel.
   Fig 8: Locating Selector Lever Boot

   Courtesy of FORD MOTOR CO.
