Child Safety Seat Tether Anchor - LATCH: Notes

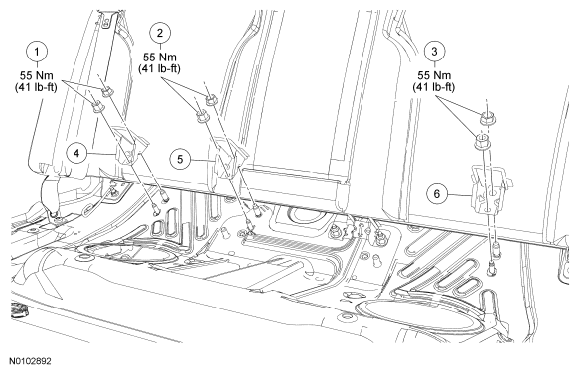

Fig 1: Child Safety Seat Tether Anchor Related Replacement Components With Torque Specifications -- Latch
| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH lower anchors and tethers for children nuts |
| 2 | - | Center lower anchors and tethers for children nuts |
| 3 | - | LH lower anchors and tethers for children nuts |
| 4 | - | RH lower anchors and tethers for children |
| 5 | - | Center lower anchors and tethers for children |
| 6 | - | LH lower anchors and tethers for children |
