Selector Lever - Paddle Shift: Removal

NOTE: This procedure shows removal and installation of the LH paddle shifter. Removal and installation of the RH paddle shifter is similar.

Remove the driver air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

NOTE: Steering wheel shown in illustration turned clockwise to remove the LH paddle shifter. When removing the RH paddle shifter, turn the steering wheel in the opposite direction.

Turn the steering wheel far enough to access the inner paddle shifter screw.
- Turn the steering wheel clockwise if removing the LH paddle shifter.
- Turn the steering wheel counterclockwise if removing the RH paddle shifter.

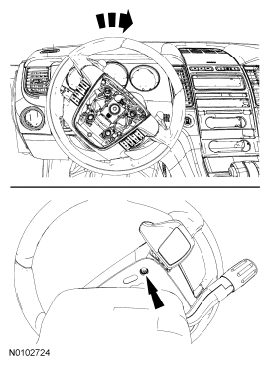

  Fig 1: Locating Inner Paddle Shifter Screw
  Courtesy of FORD MOTOR CO.
Using a suitable tool, gently pry the bottom of the paddle shifter cover up and remove the paddle shifter cover.

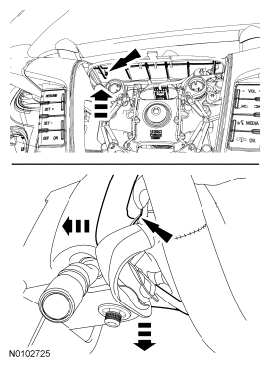

Fig 2: Locating Paddle Shifter Cover
Courtesy of FORD MOTOR CO.
Remove the 2 paddle shifter screws.

Fig 3: Locating Paddle Shifter Screws
Courtesy of FORD MOTOR CO.
Push up on the inside of the back steering wheel trim cover to release the retaining tab from the front steering wheel bezel. Position aside the back steering wheel trim cover and remove the paddle shifter from the steering wheel.

Fig 4: Releasing Retaining Tab From Front Steering Wheel Bezel
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector and remove the paddle shifter.

Fig 5: Locating Paddle Shifter Electrical Connector
Courtesy of FORD MOTOR CO.
