Steering Column: Notes
NOTE:

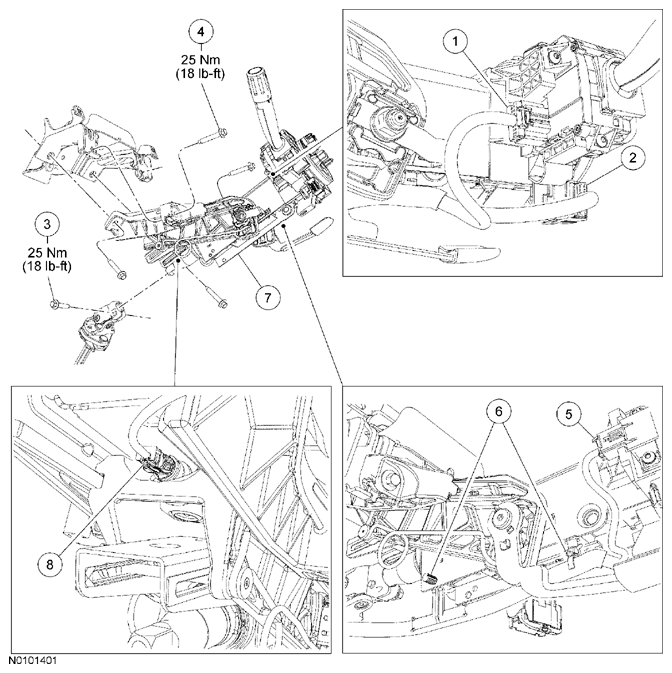

Hydraulic Power Assist Steering (HPAS) steering column shown in illustration, Electronic Power Assist Steering (EPAS) steering column similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Multifunction switch electrical connector (part of 14401) |
| 2 | - | Clockspring electrical connector (part of 14401) |
| 3 | W712961 | Steering column shaft-to-steering column bolt |
| 4 | W712833 | Steering column bolt (4 required) |
| 5 | - | Steering wheel rotation sensor electrical connector (part of 14401) Hydraulic Power Assist Steering (HPAS) vehicles only) |
| 6 | - | Pin-type retainers (part of 14401) |
| 7 | 3C529 | Steering column |
| 8 | - | Collapsible steering column module electrical connector (part of 14401) |
