Strut and Spring Assembly: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Silicone Brake Caliper Grease and Dielectric Compound XG-3-A |
ESE-M1C171-A |

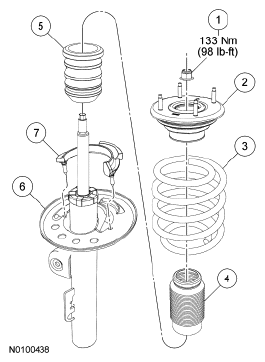

| Item | Part Number | Description |
|---|---|---|
| 1 | W713968 | Strut rod nut |
| 2 | 18183 | Upper strut mount |
| 3 | 5310 | Spring |
| 4 | 18A047 | Dust boot |
| 5 | 18198 | Jounce bumper |
| 6 | 18124 | Strut |
| 7 | 5415 | Lower spring isolator |
