Wheel Speed Sensor - Rear: Notes
NOTE:

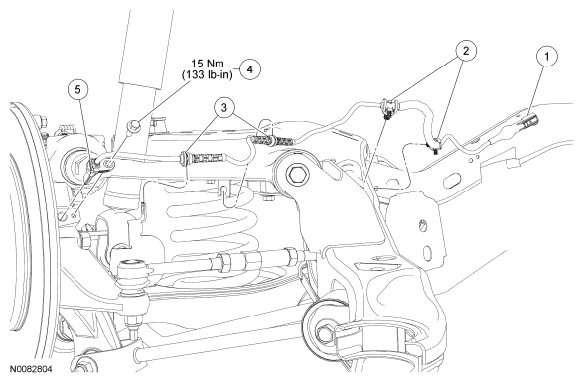

LH side shown in illustration, RH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wheel speed sensor electrical connector (part of 2C190) |
| 2 | - | Wheel speed sensor pin-type retainers (part of 2C190) |
| 3 | - | Wheel speed sensor harness retainers (part of 2C190) |
| 4 | W505255 | Wheel speed sensor bolt |
| 5 | 2C190 | Wheel speed sensor |
