Desiccant Bag: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
PAG Refrigerant Compressor Oil (R-134a Systems)
YN-12-D
WSH-M1C231-B

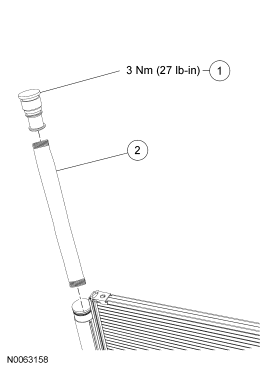

Fig 1: Exploded View Of Desiccant Bag With Torque Specification
GF0032178Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Receiver/drier plug (part of 19E989 kit)
2 19E989 Receiver/drier desiccant bag
