In-Vehicle Temperature and Humidity Sensor: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

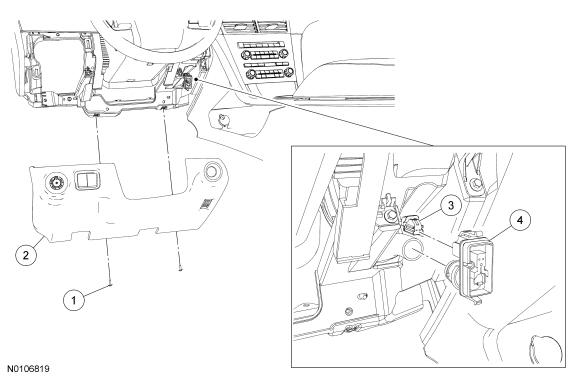

| Item | Part Number | Description |
|---|---|---|
| 1 | N808453 | Steering column opening trim panel screw (2 required) |
| 2 | 7404459 | Steering column opening trim panel |
| 3 | - | In-vehicle temperature sensor electrical connector (part of 14401) |
| 4 | 19C734 | In-vehicle temperature sensor |
