Restraints Control Module (RCM): Notes

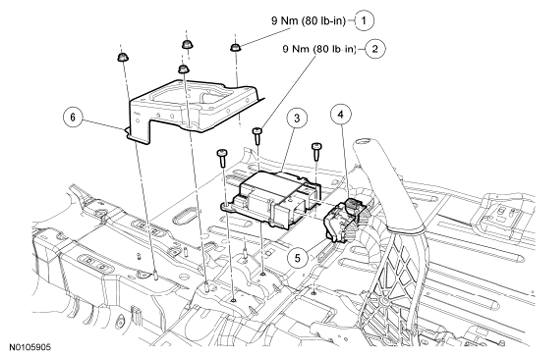

Fig 1: Exploded View Of Restraints Control Module (RCM) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W702751	Selector lever stabilizer nut (4 required)
2	W704265	Restraints Control Module (RCM) bolt (3 required)
3	14B321	RCM
4	-	Small RCM electrical connector (part of 14401)
5	-	Large RCM electrical connector (part of 14A005)
6	7L257	Selector lever stabilizer
