Exhaust System - Exploded View

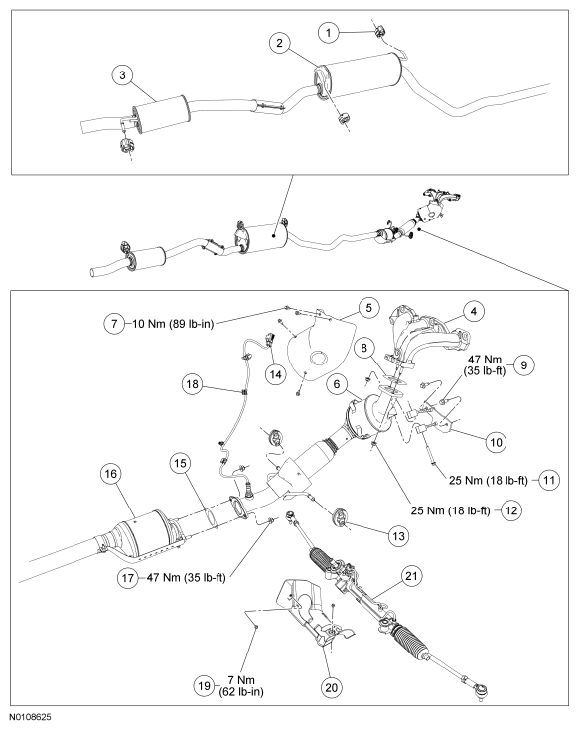

Fig 1: Exploded View Of Exhaust System With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5A262	Muffler and tailpipe exhaust hanger isolator (3 required)
2	-	Muffler (part of 5E292)
3	-	Resonator (part of 5E292)
4	9430	Exhaust manifold
5	5K282	Catalytic converter heat shield
6	5F297	Catalytic converter
7	W500210	Catalytic converter heat shield bolt (4 required)
8	9451	Gasket
9	W500232	Engine support bracket-to-engine block bolt (2 required)
10	5A204	Engine support bracket
11	W500316	Engine support bracket-to-catalytic converter bolt
12	W520102	Exhaust manifold-to-catalytic converter nut (2 required)
13	5A262	Catalytic converter exhaust hanger isolator (2 required)
14	14A464	Catalyst Monitor Sensor (CMS) electrical connector
15	9451	Gasket
16	-	Underbody catalytic converter (part of 5E292)
17	W520103	Catalytic converter-to-muffler and tailpipe nut (2 required)
18	-	CMS wiring retainer (4 required)
19	W505140	Steering gear heat shield bolt (2 required)
20	3C567	Steering gear heat shield
21	3A500	Steering gear
