Wiper/Washer Switch: Schematic

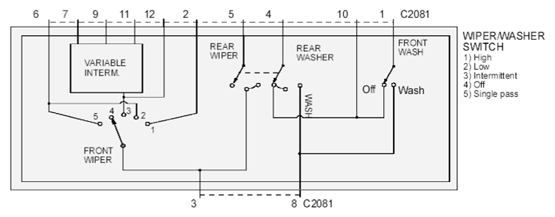

Fig 1: Wiper/Washer Switch - Component Testing
G07909349Courtesy of FORD MOTOR CO.
