Power Steering Fluid Cooler: Notes
SPECIAL TOOLS
| Disconnect Tool, Spring Lock Coupling 310-041 |

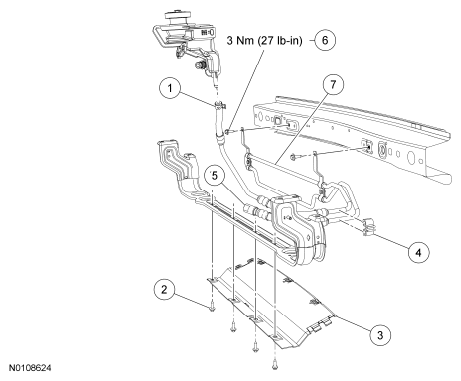

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A713 | Return/cooler hose |
| 2 | W702846 | Radiator sight shield retainer (4 required) |
| 3 | 8310 | Lower radiator sight shield |
| 4 | - | Pressure and return line retainer (part of 3A713) |
| 5 | 3493 | Cooler line |
| 6 | W701107 | Power steering cooler bolt (2 required) |
| 7 | 3493 | Power steering cooler |
