Steering Gear: Notes
SPECIAL TOOLS
| Adapter for 204-592 204-592/1 |
|
| Separator, Ball Joint 204-592 |

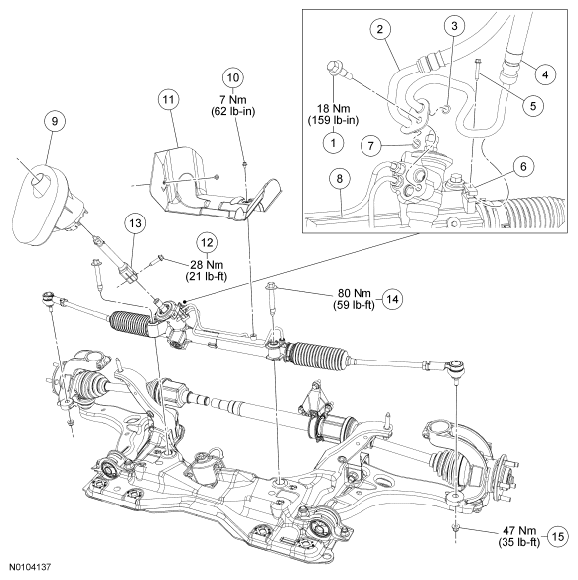

| Item | Part Number | Description |
|---|---|---|
| 1 | W704331 | Steering line clamp plate bolt |
| 2 | 3A713 | Return hose |
| 3 | 3F886 | O-ring seal |
| 4 | 3A719 | Pressure line |
| 5 | W704373 | Steering line-to-steering gear retainer bolt |
| 6 | W702164 | Steering line-to-steering gear retainer |
| 7 | 3F886 | O-ring seal |
| 8 | 3A500 | Steering gear |
| 9 | 3D677 | Dash seal |
| 10 | W505140 | Steering gear heat shield bolt (2 required) |
| 11 | 3C567 | Steering gear heat shield |
| 12 | W702825 | Lower steering column shaft-to-steering gear bolt |
| 13 | 3N997 | Lower steering column shaft |
| 14 | W702859 | Steering gear bolt (2 required) |
| 15 | W520203 | Outer tie-rod end nut (2 required) |
