Steering Column Shroud: Notes

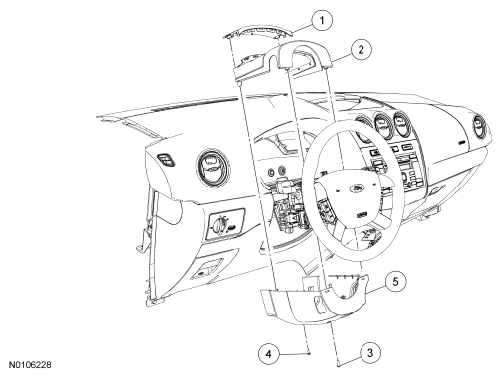

Fig 1: Identifying Steering Column Shroud Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	046B54	Upper steering column extension cover
2	3530A	Upper steering column shroud
3	W505963	Lower steering column shroud front screw
4	W706203	Lower steering column shroud rear screw
5	3533B	Lower steering column shroud
