Removal and Installation

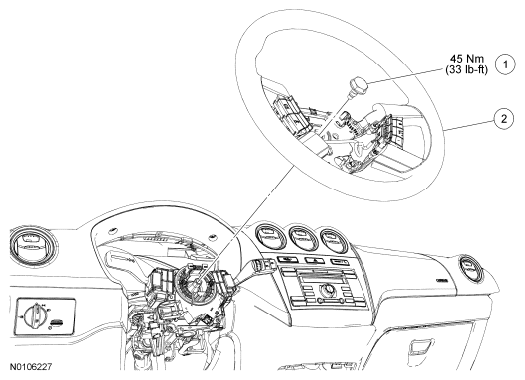

Fig 1: Identifying Steering Wheel And Bolt

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705985	Steering wheel bolt
2	3600	Steering wheel

NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected or damage to the clockspring may result. If there is evidence that the steering column has rotated, the clockspring must be removed and recentered. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

Remove the driver air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
Turn the steering wheel to the straight-ahead position and turn the ignition switch to the OFF position.
If equipped, disconnect the steering wheel switches electrical connector.

Fig 2: Locating Steering Wheel Switches Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the steering wheel bolt.
- To install, tighten to 45 Nm (33 lb-ft).
Remove the steering wheel.
Tape the clockspring center rotor to the outer housing to keep it from rotating.

Fig 3: Locating Tape Clockspring Center Rotor To Outer Housing
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
