Steering Gear Boot: Notes
SPECIAL TOOLS
| Boot Clamp Pliers 205-D067 (D87P-1098-A) or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

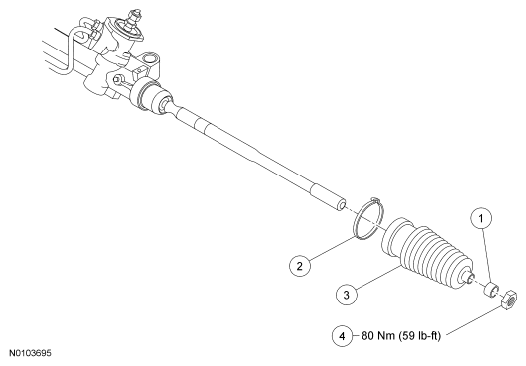

| Item | Part Number | Description |
|---|---|---|
| 1 | E863084 | Outer bellows boot clamp |
| 2 | 3C650 | Inner bellows boot clamp |
| 3 | 3K661 | Steering gear bellows boot |
| 4 | W520606 | Tie-rod jam nut |
