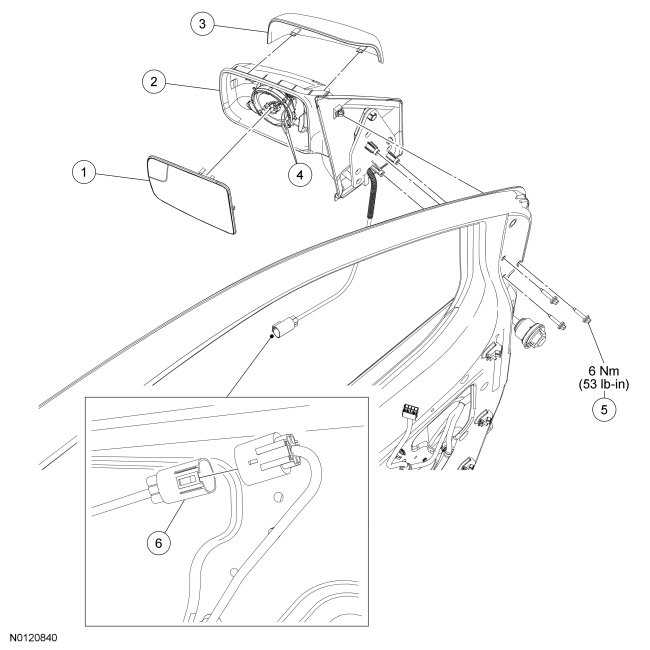

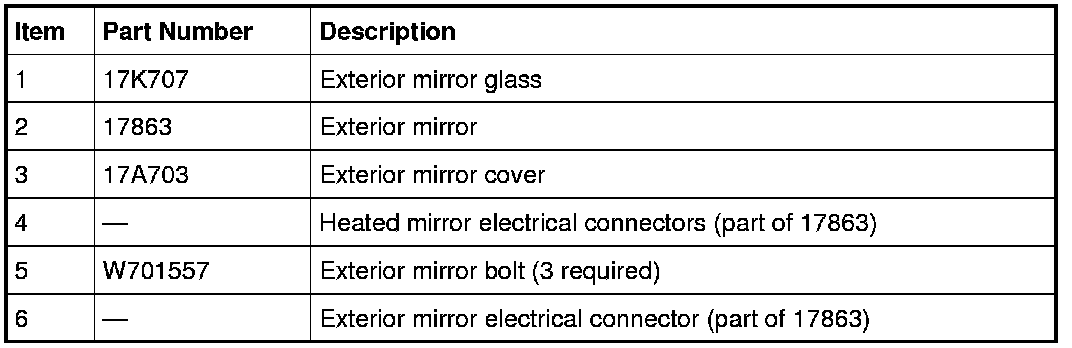

Exterior Mirrors - Exploded View
Exterior
Mirrors
- Exploded View
NOTE:
LH side shown, RH side similar.
