Home
>>
Ford
>>
2012
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Power Outlet
>>
C2033 Power Point, Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

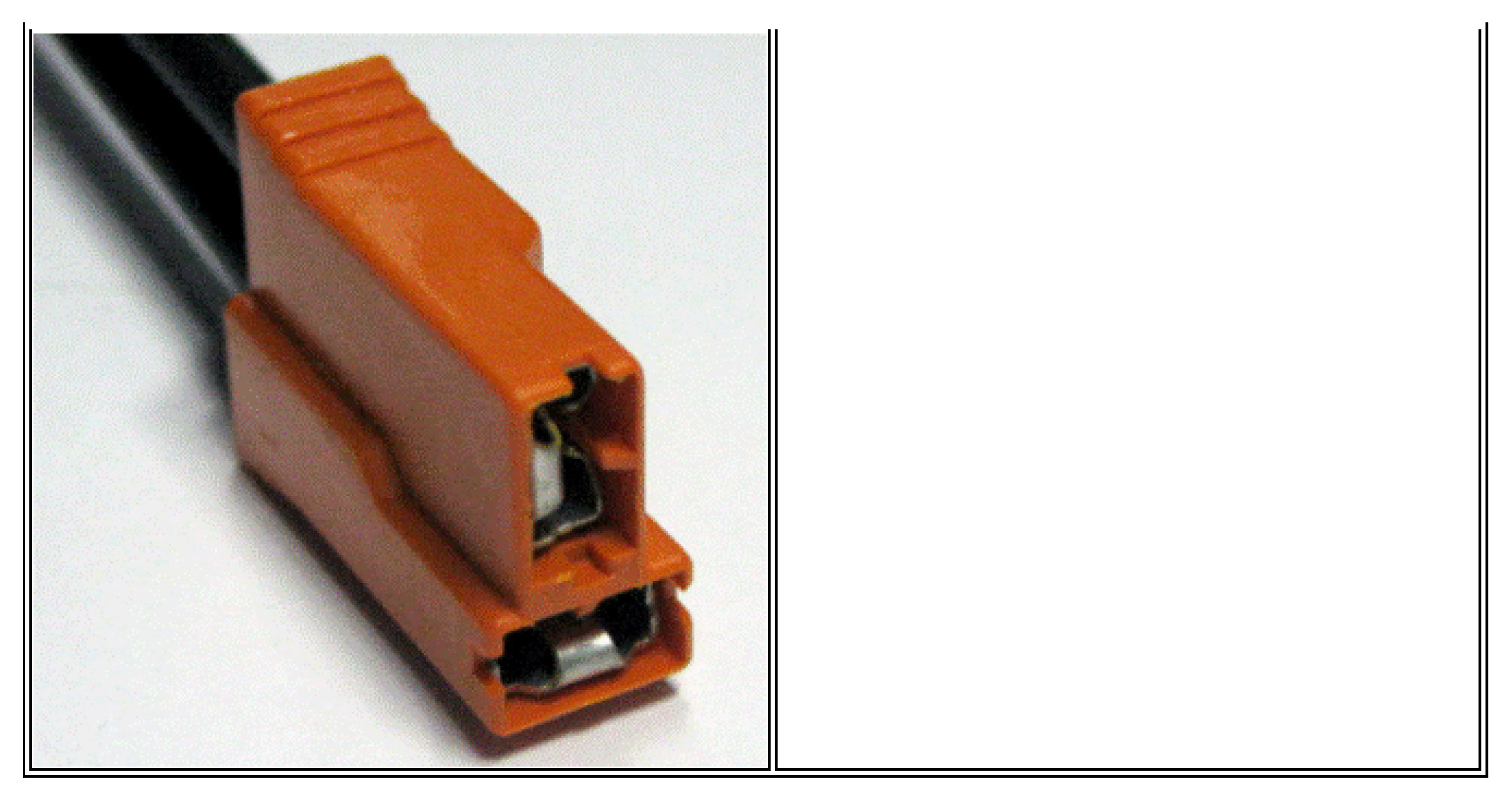

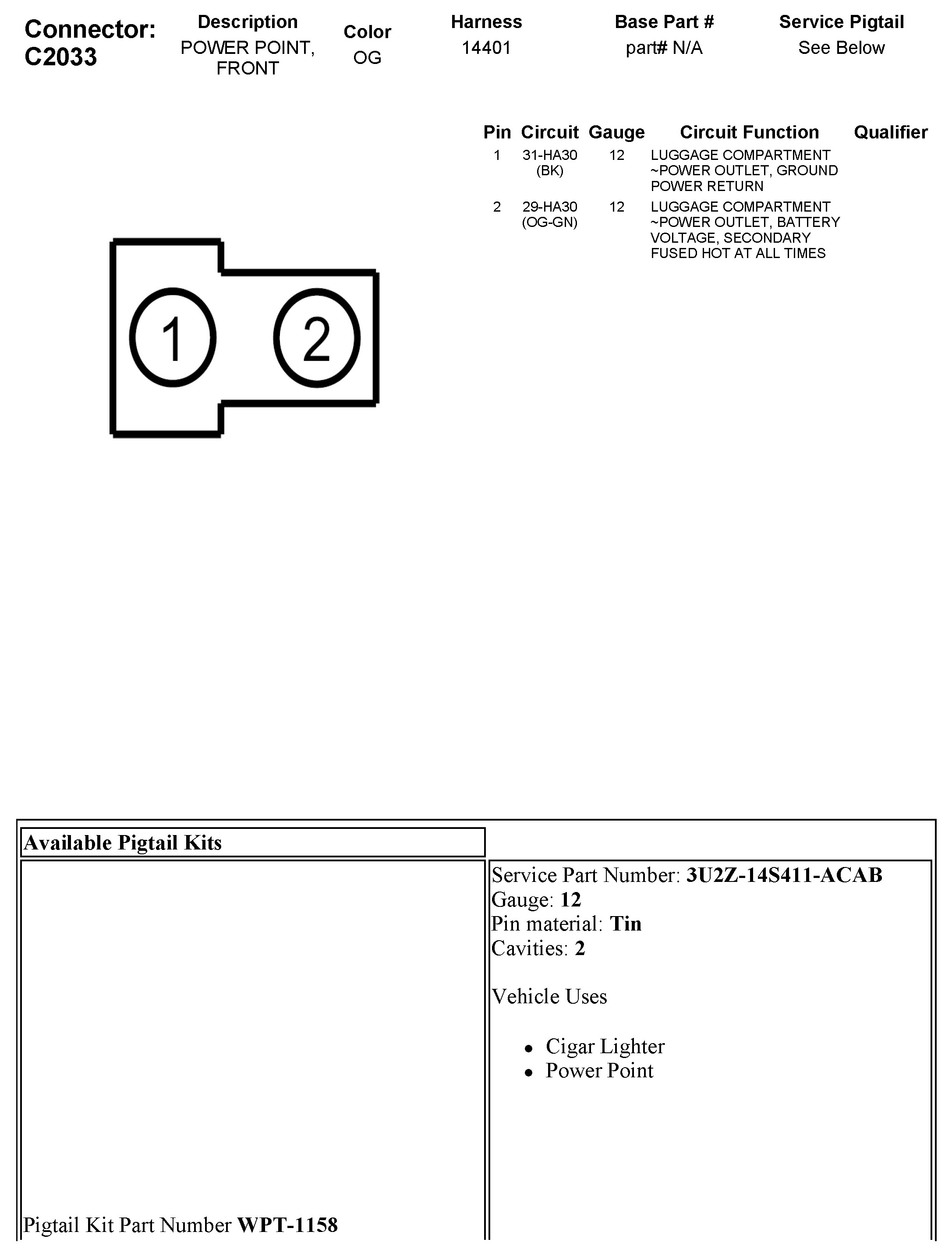

C2033 Power Point, Front
