LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Ford
>>
2012
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
C3509 Block Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

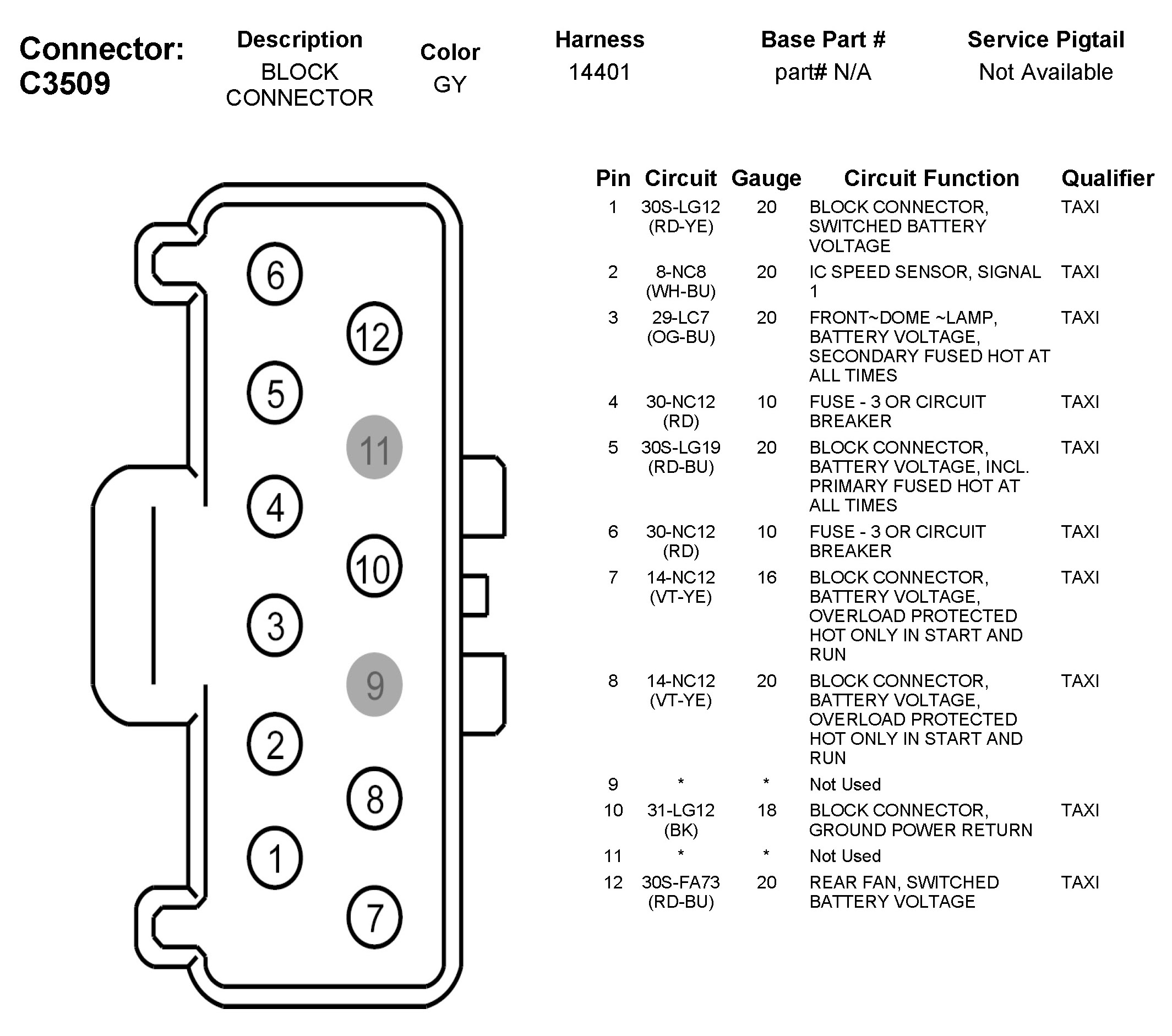

C3509 Block Connector
