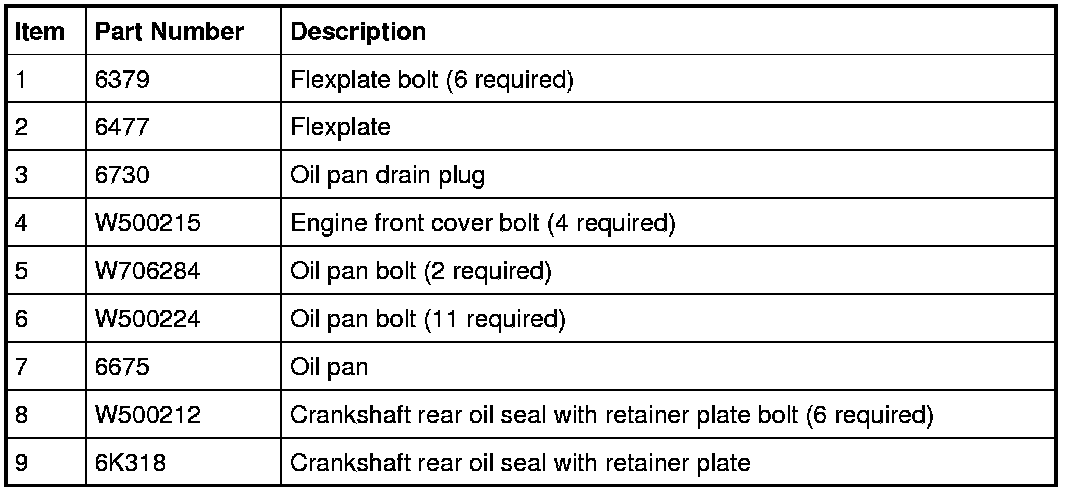

Lower End Components - Exploded View




Lower End Components - Exploded View

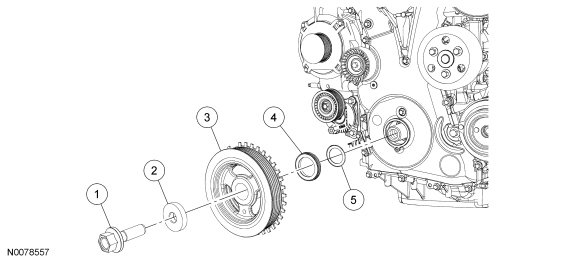

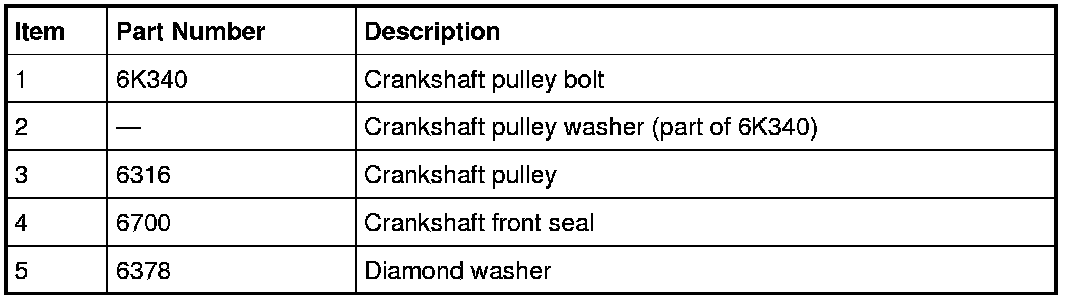

Crankshaft Pulley and Crankshaft Front Seal

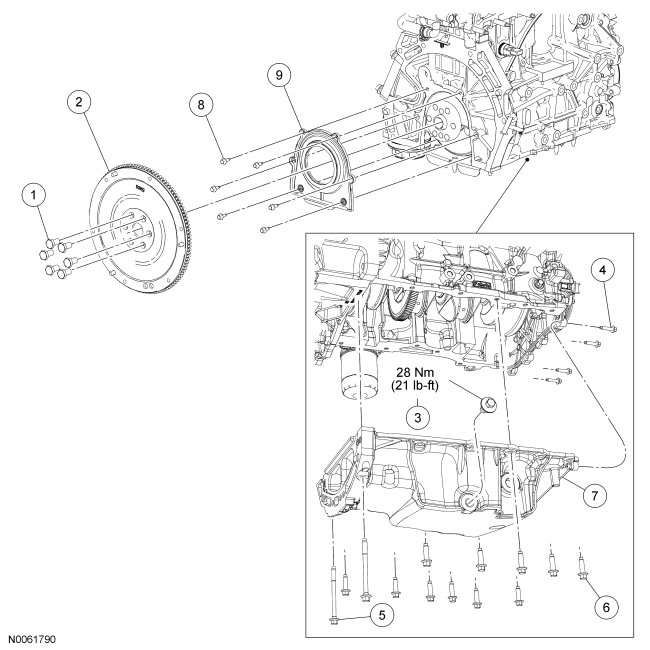

Flexplate and Crankshaft Rear Seal With Retainer Plate
