Fog/Driving Lamp: Service and Repair

Fog Lamp

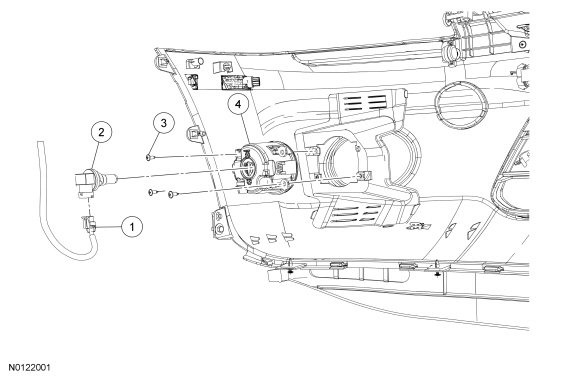

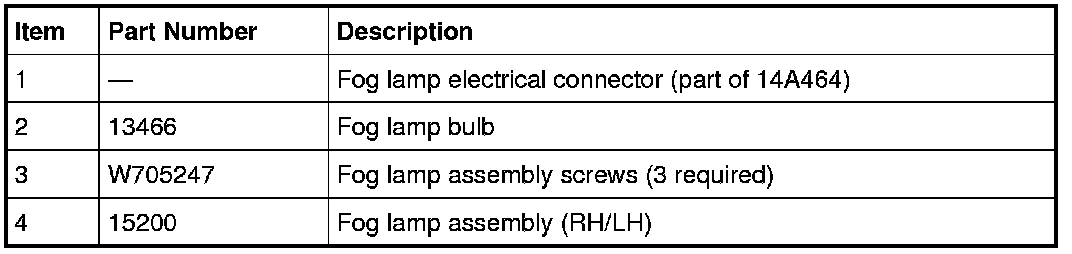

Removal and Installation

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the fog lamp electrical connector.

3. Remove the fog lamp assembly screws and remove the fog lamp assembly.

4. To install, reverse the removal procedure.
