Turn Signals: Service and Repair

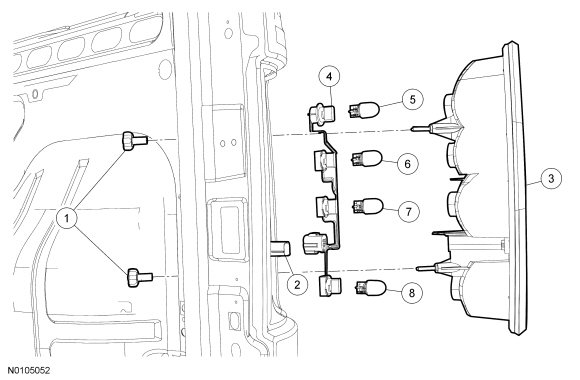

Rear Lamp Assembly

NOTE: The rear door is shown removed for clarity.









Removal and Installation

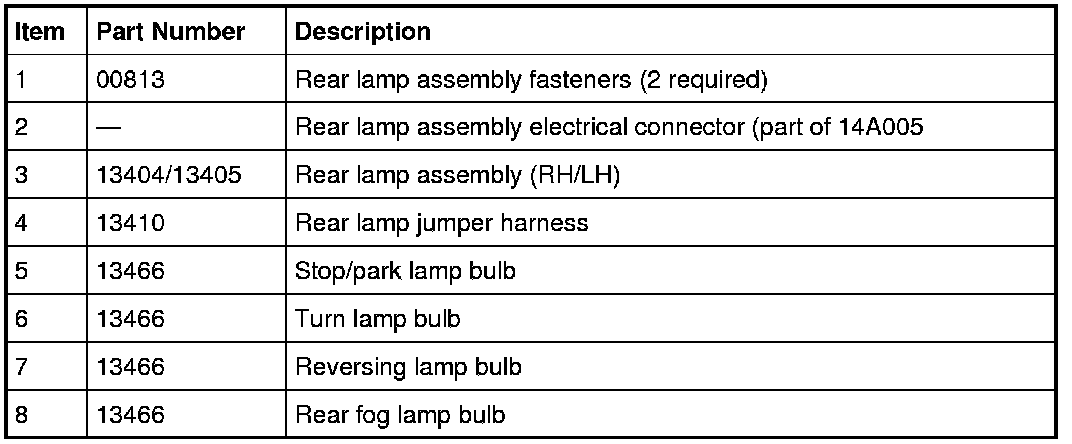

1. Remove the 2 fasteners and the rear lamp assembly.
- Disconnect the electrical connector.


2. If necessary, remove the bulb from the bulb holder.

3. To install, reverse the removal procedure.
