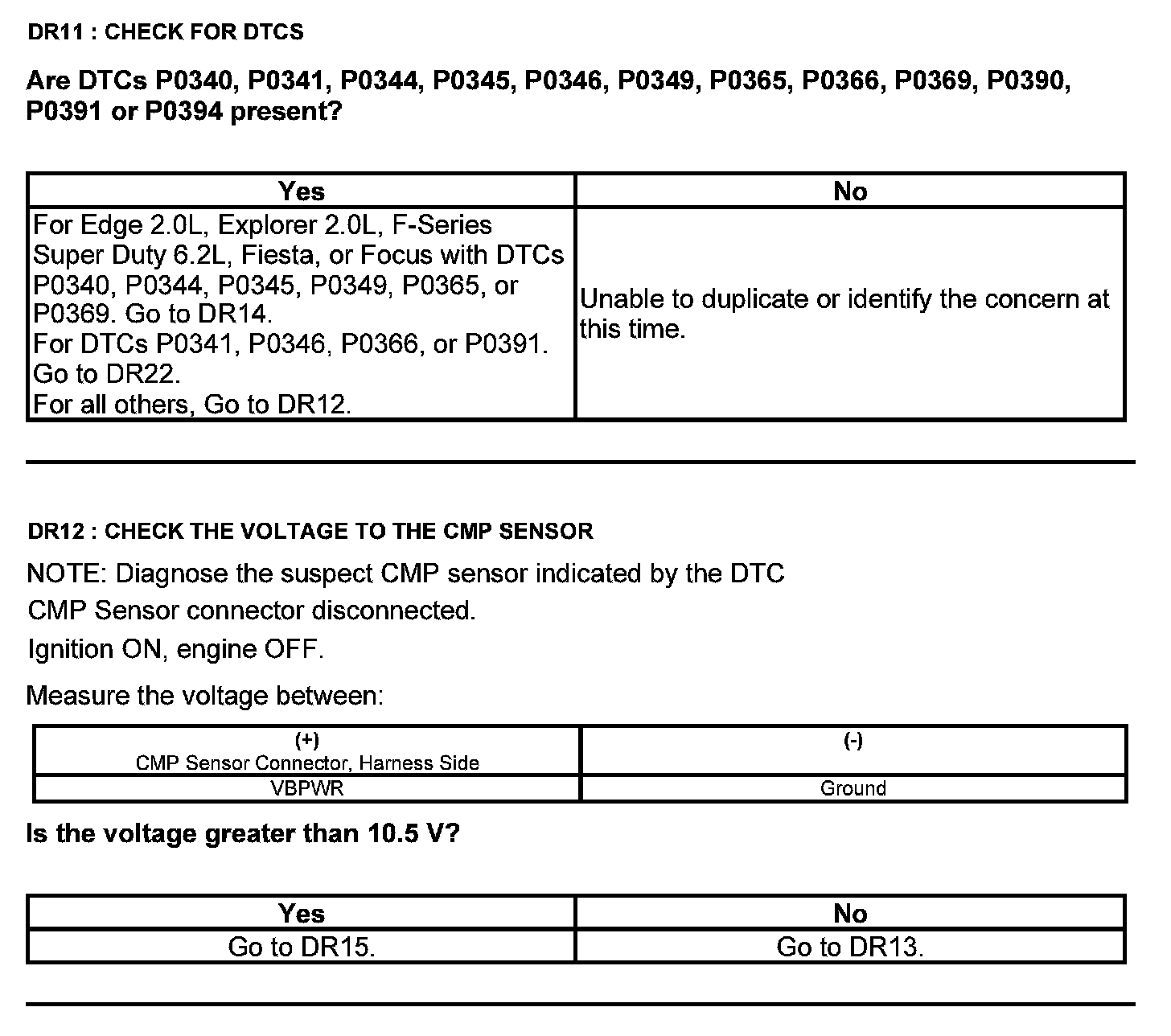

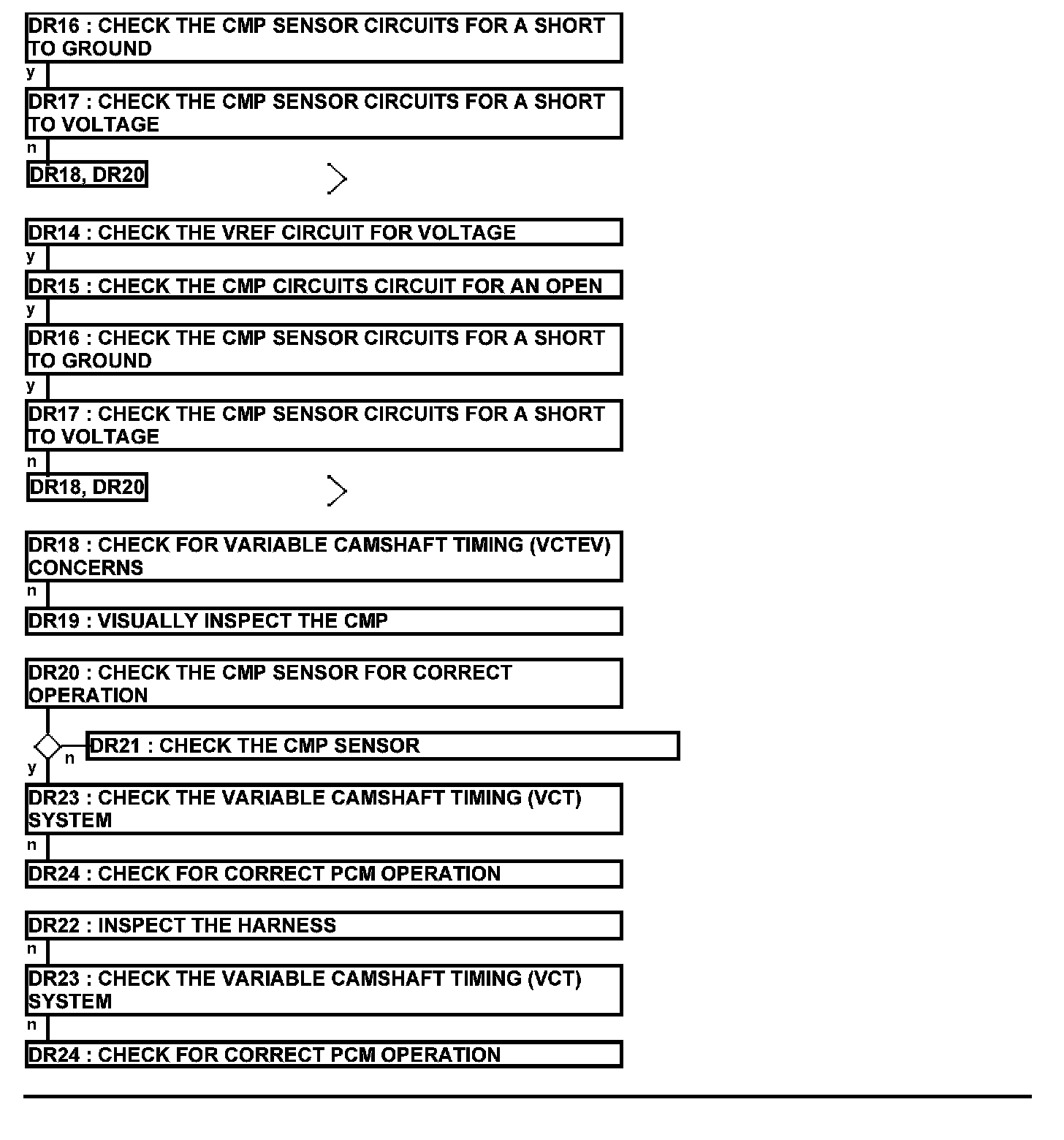

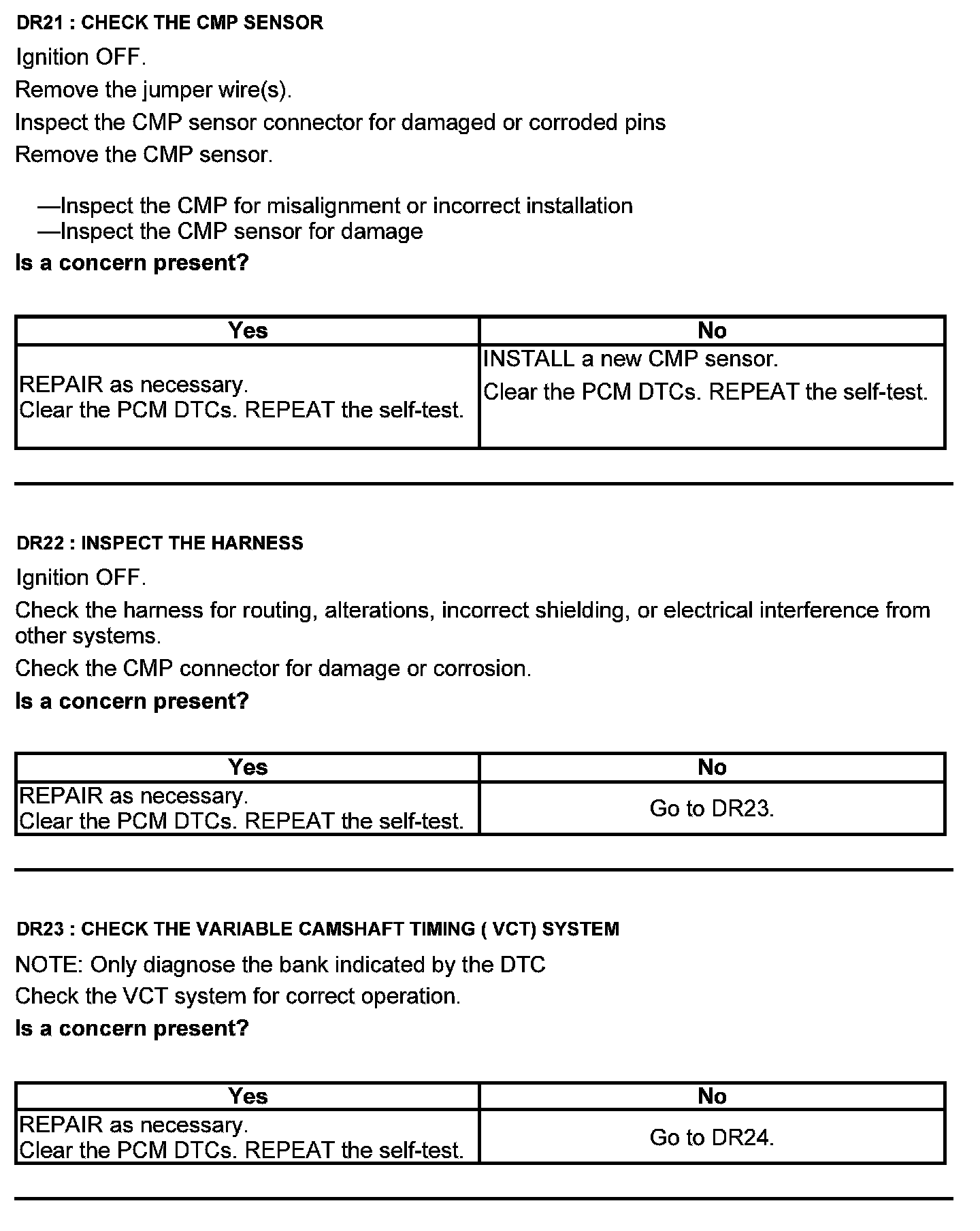

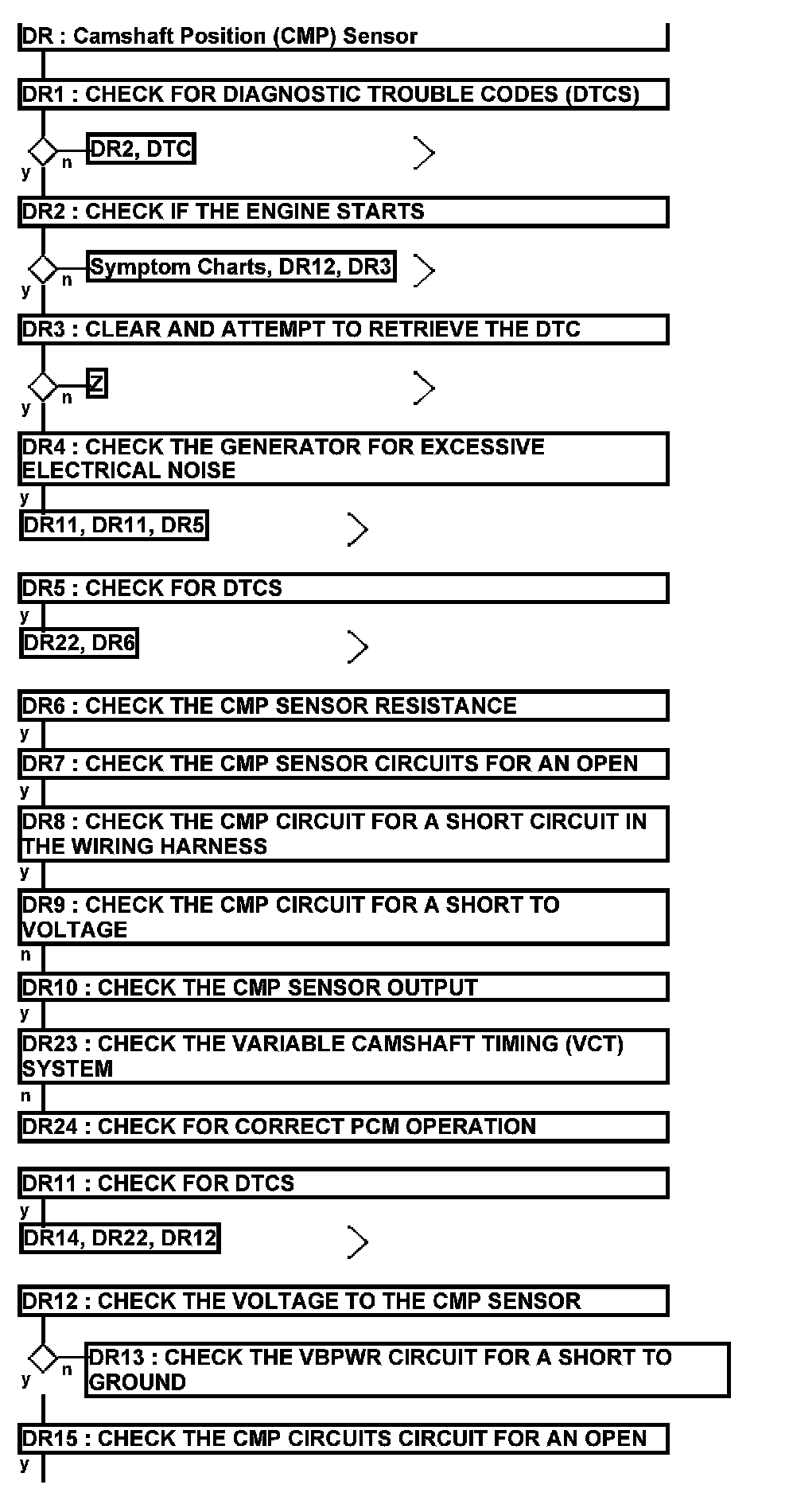

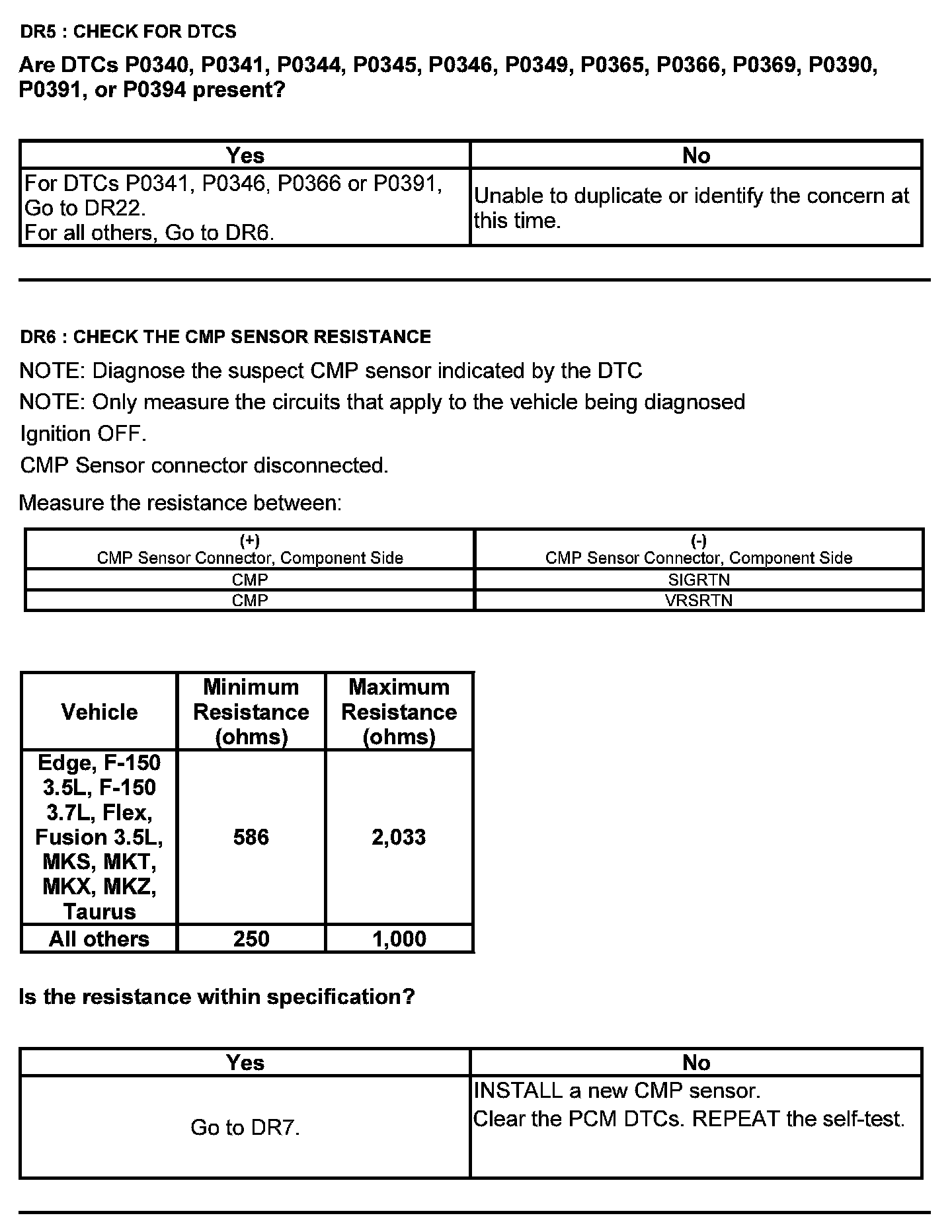

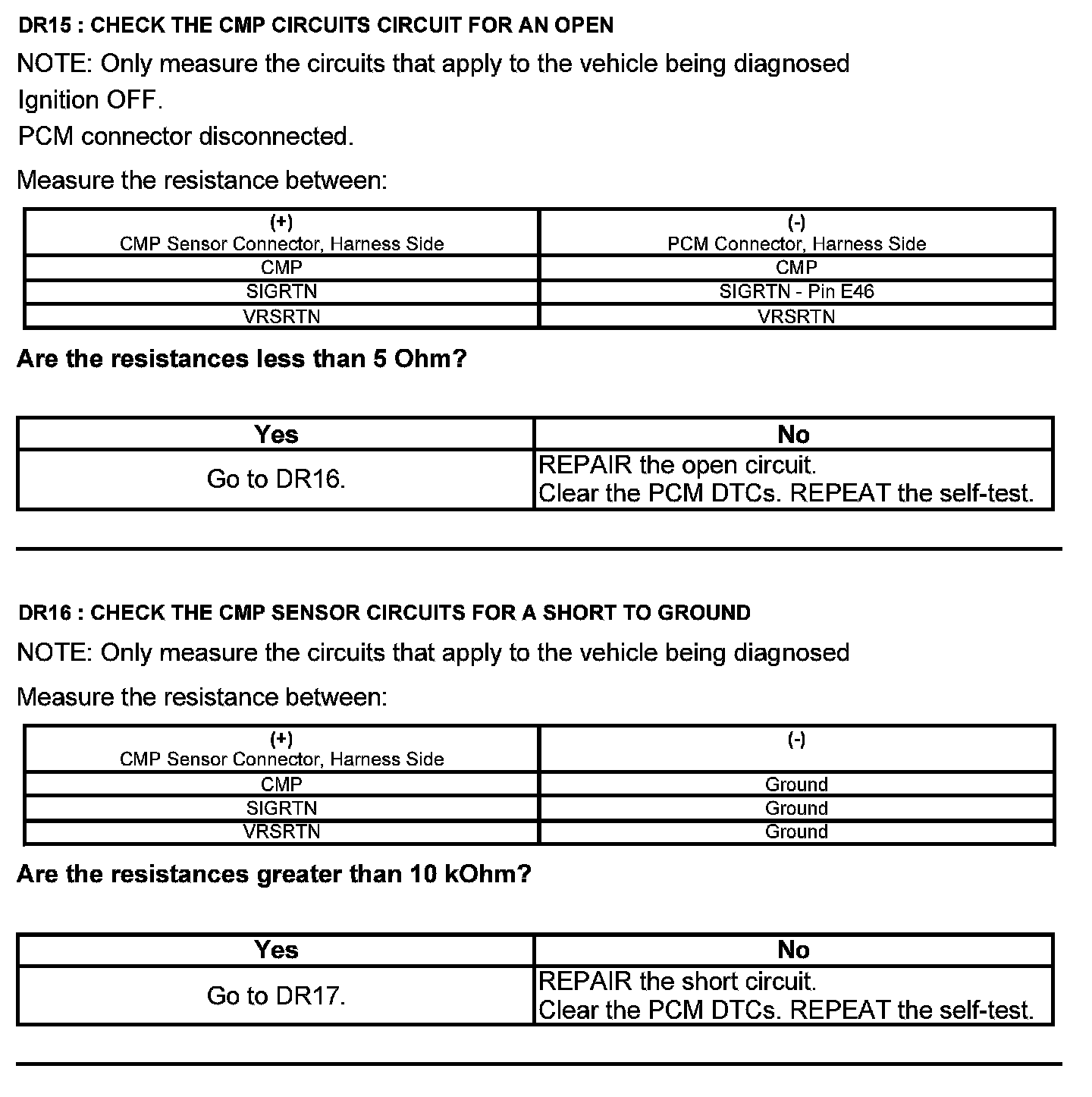

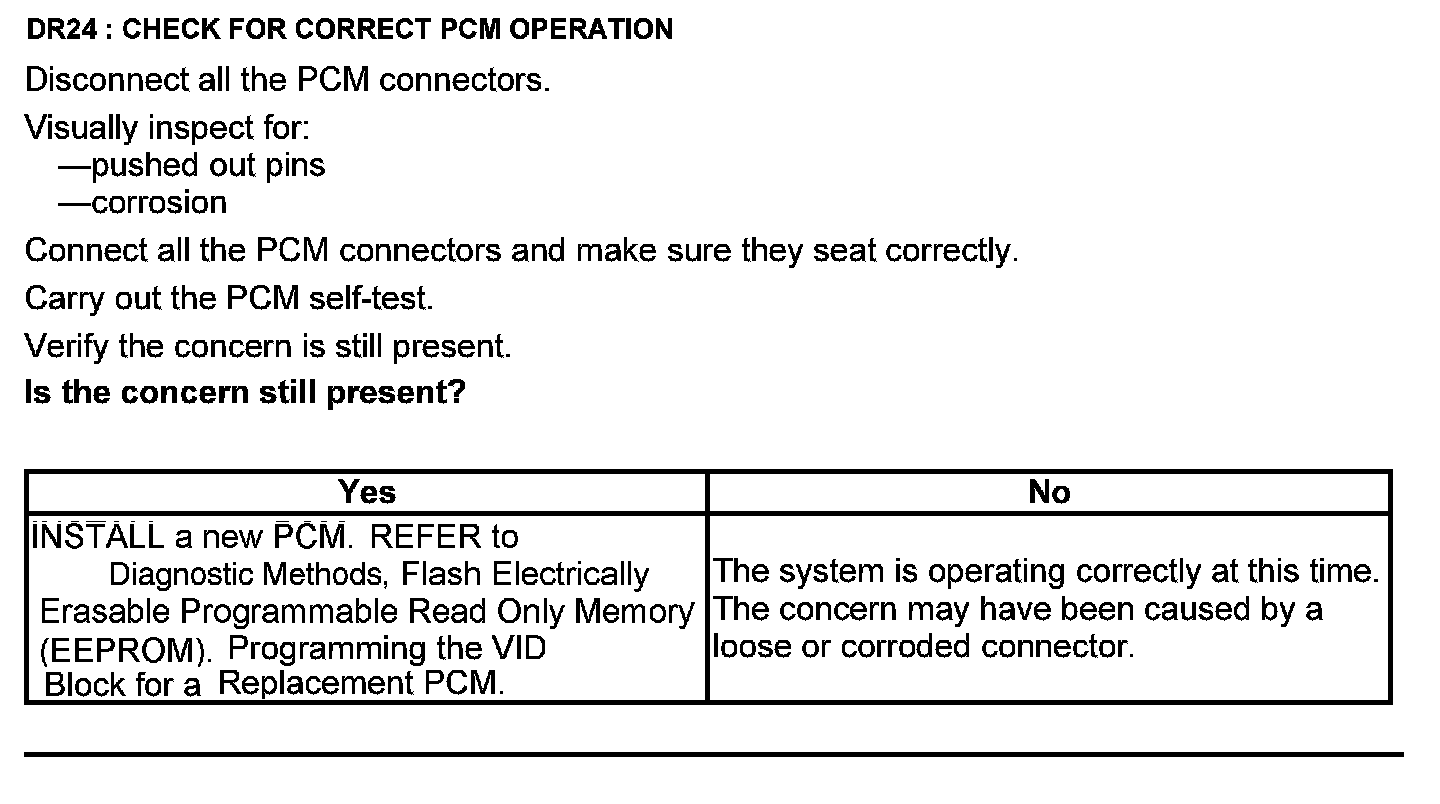

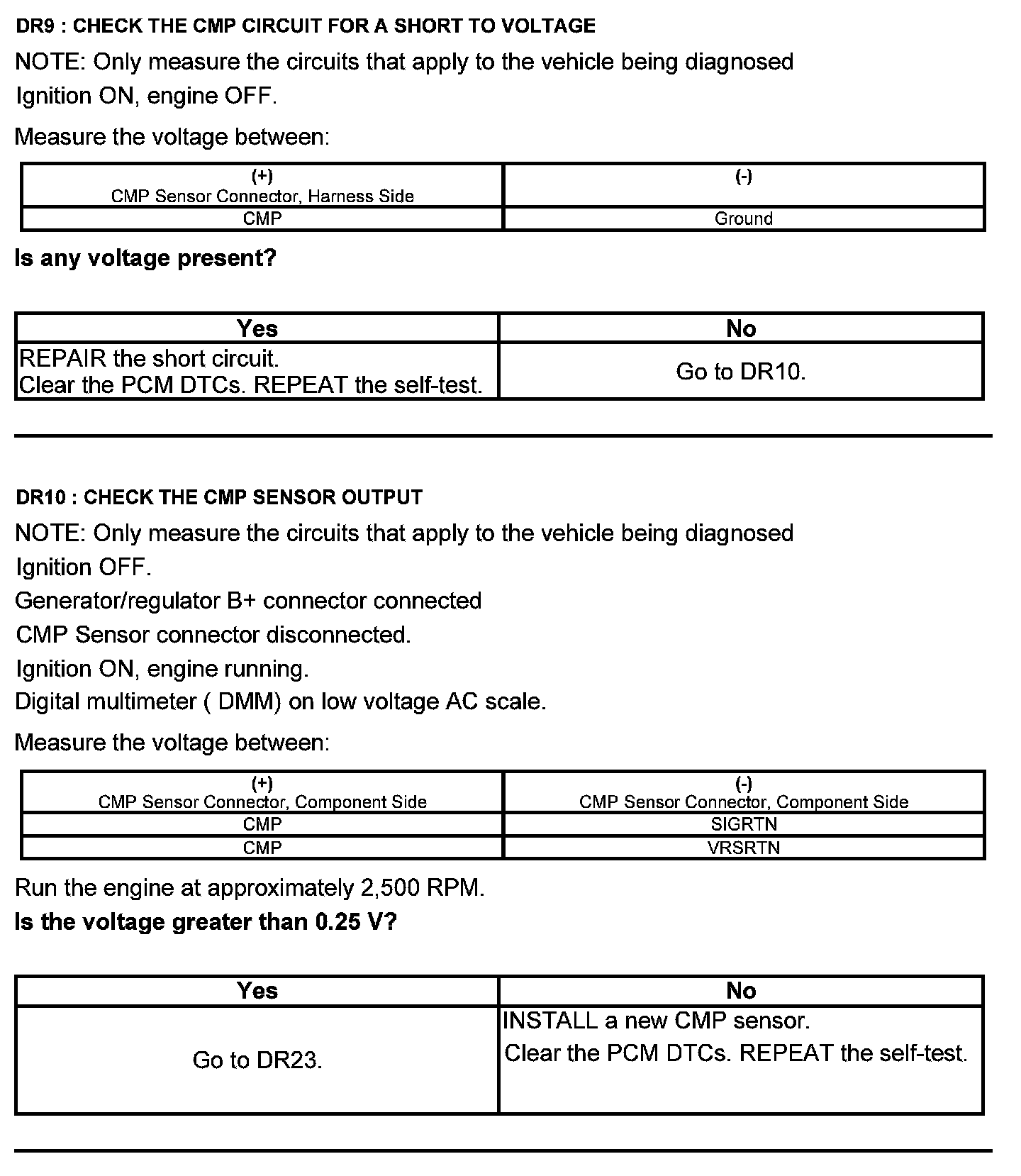

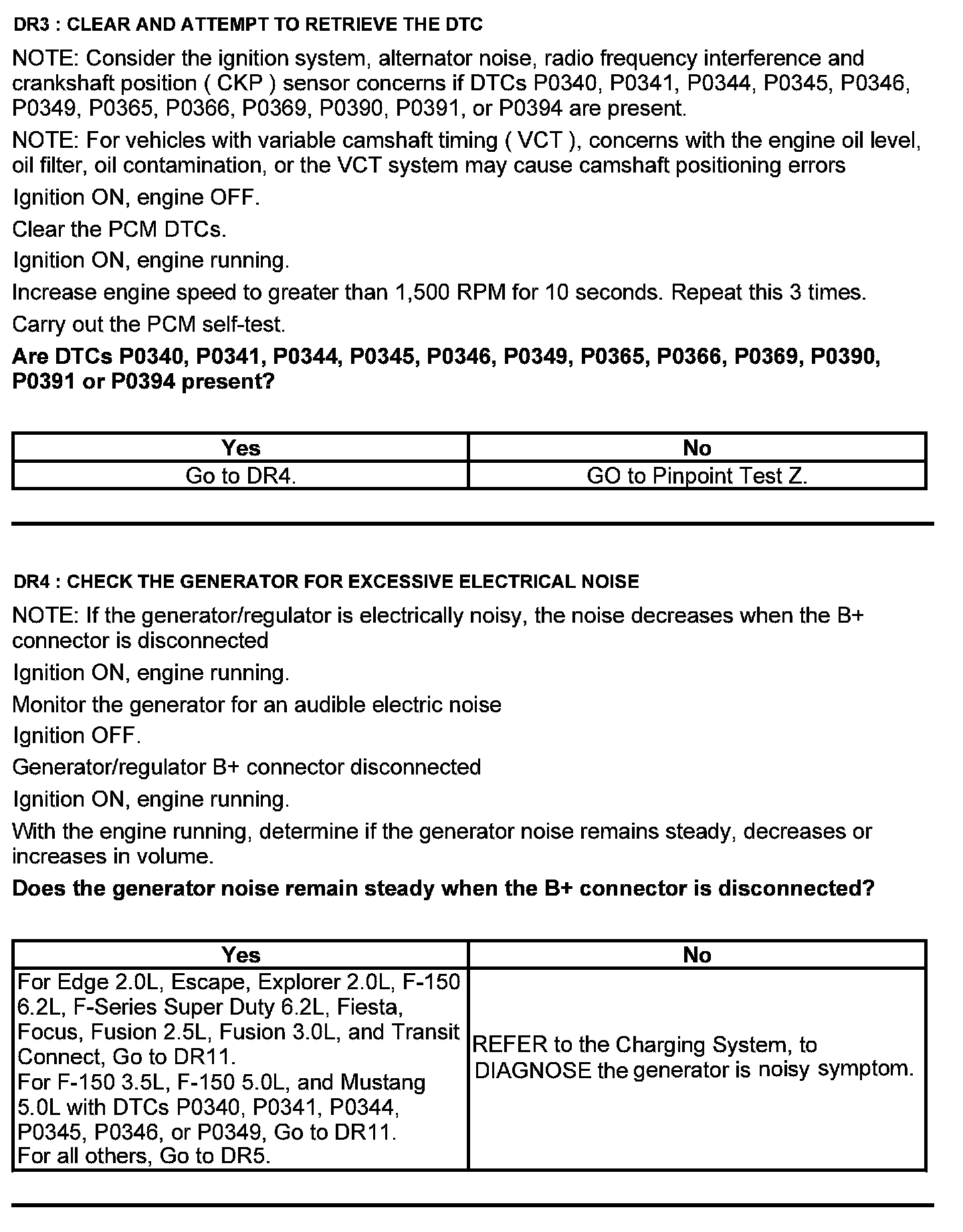

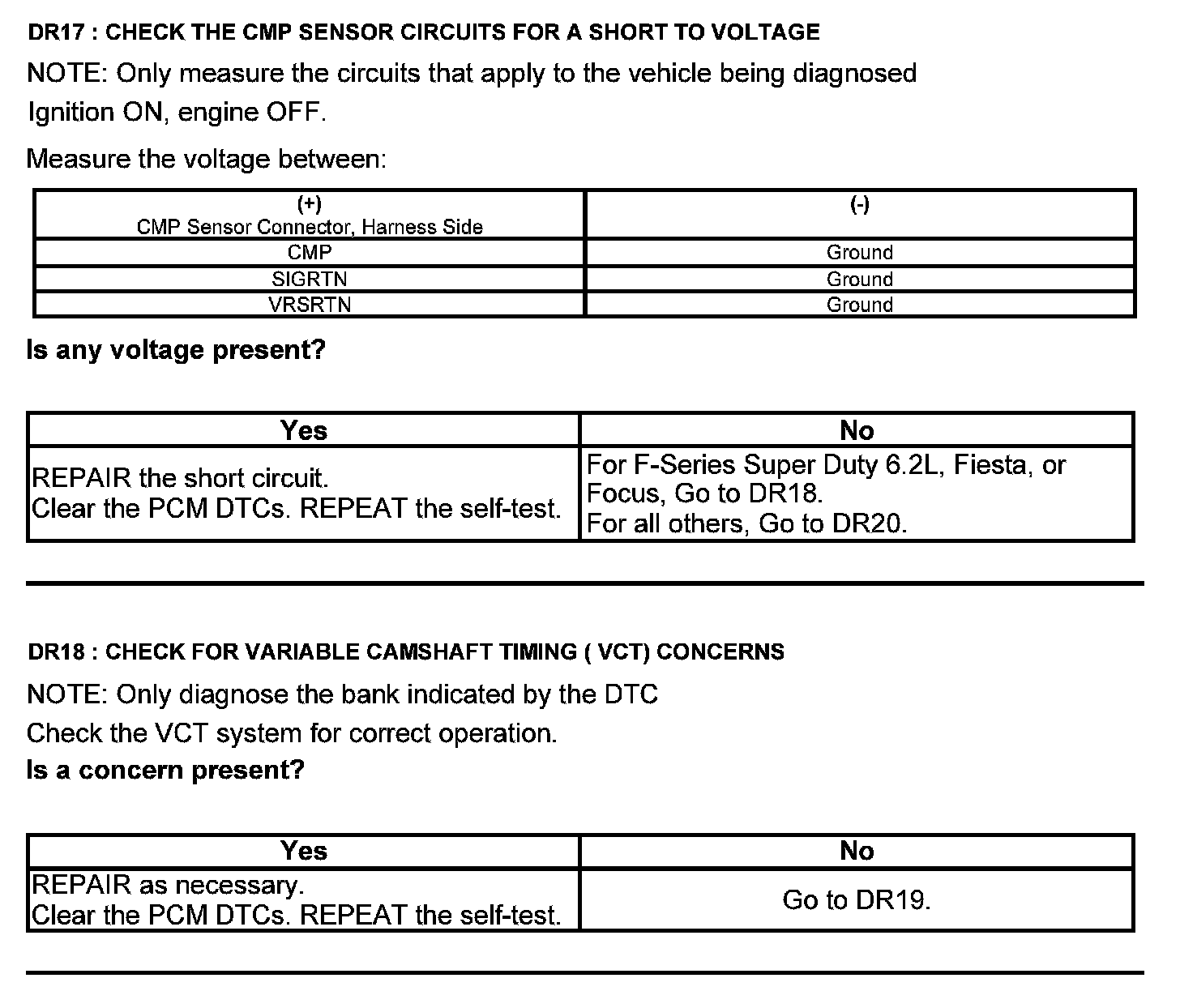

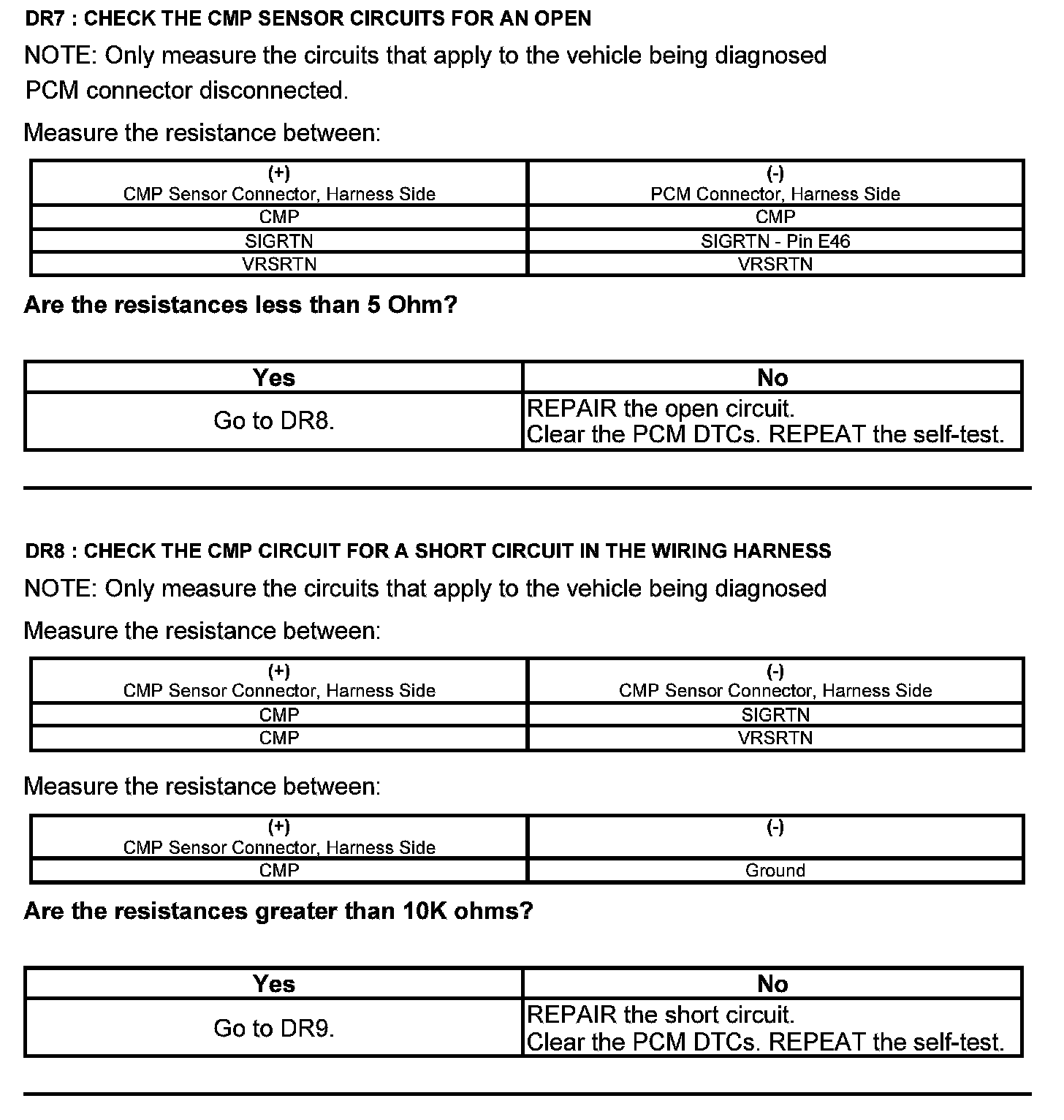

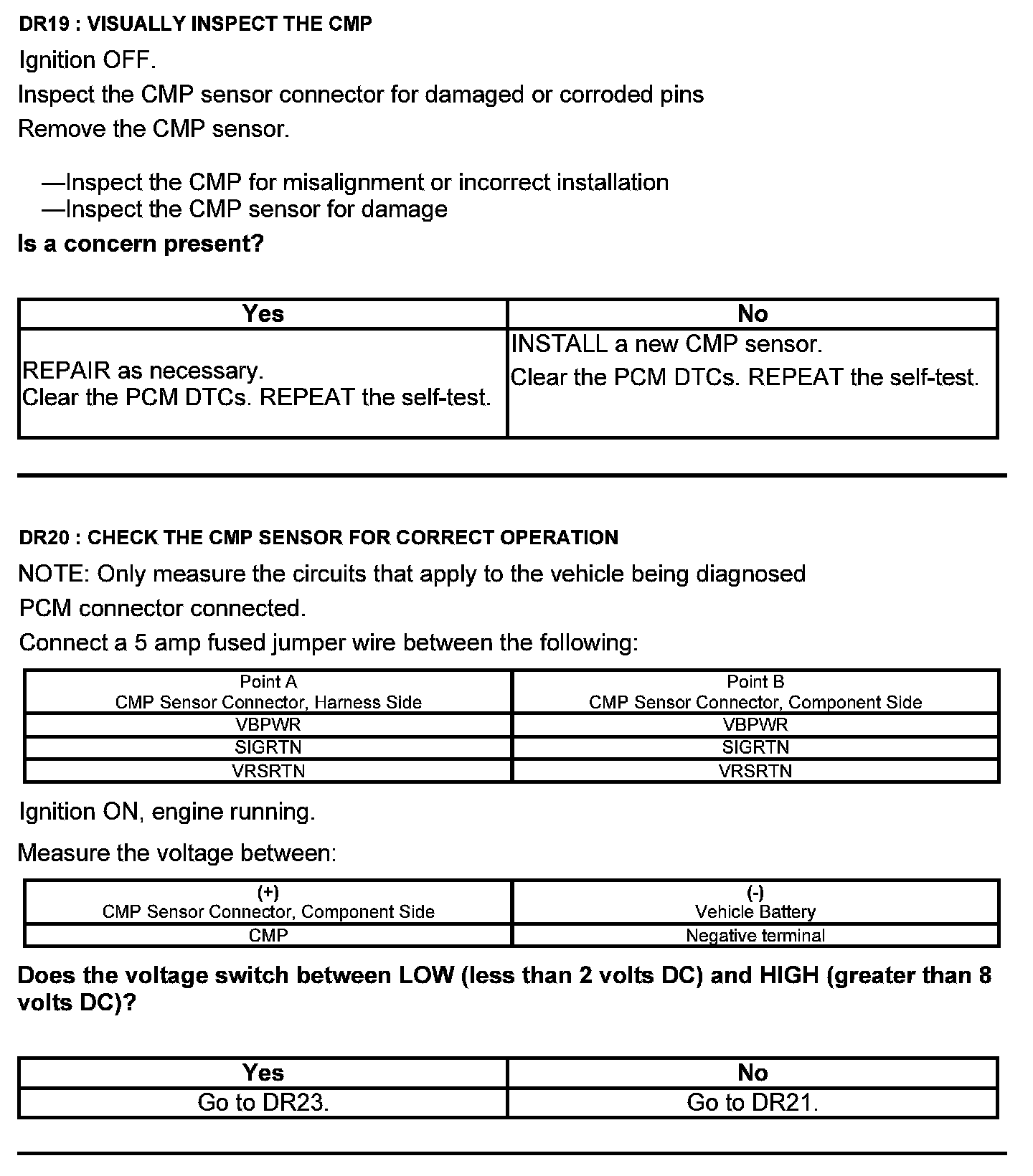

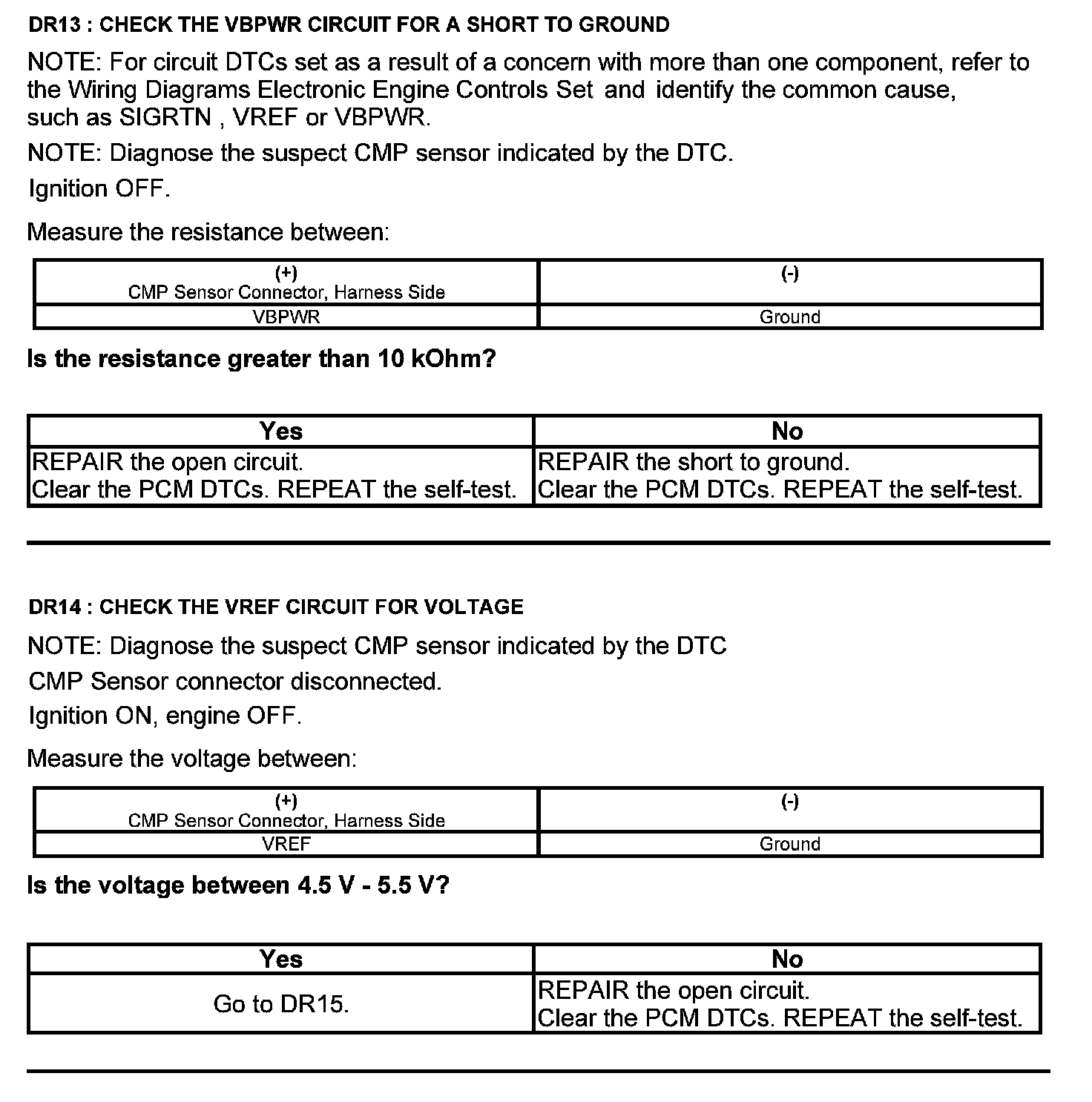

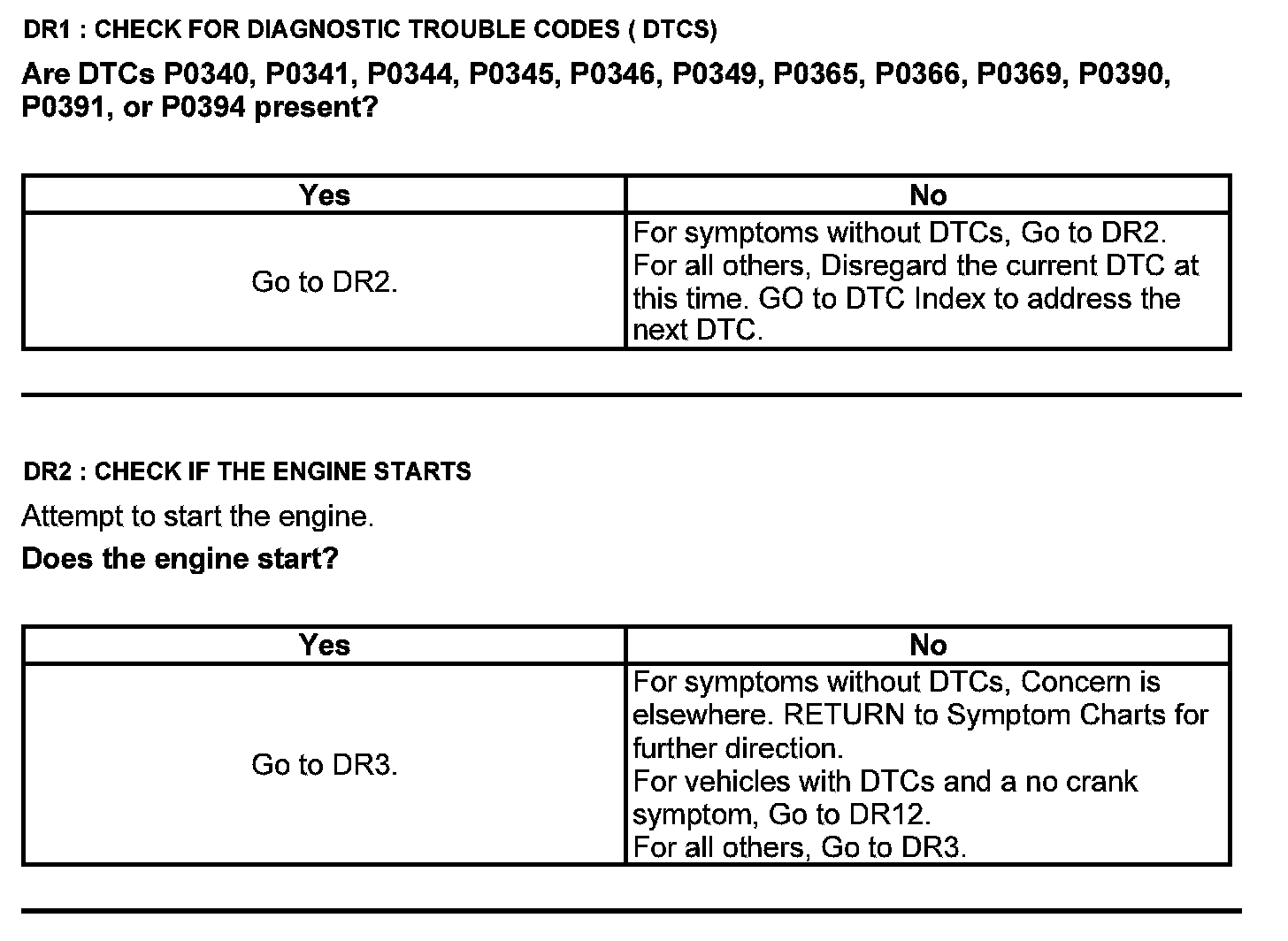

Test DR: Camshaft Position (CMP) Sensor

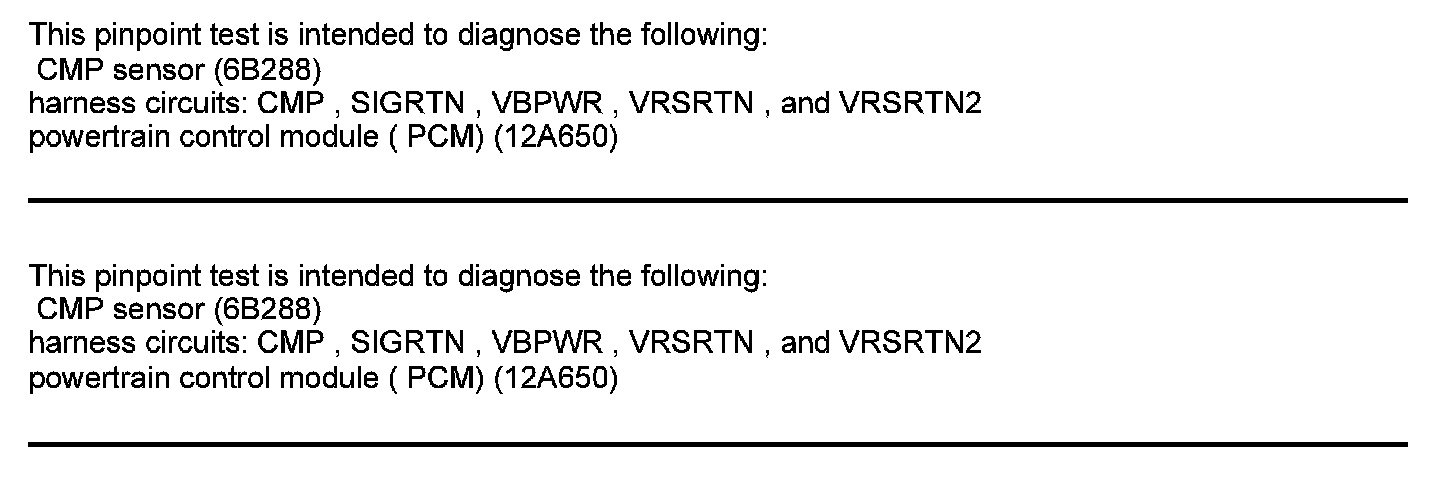

Camshaft Position (CMP) Sensor

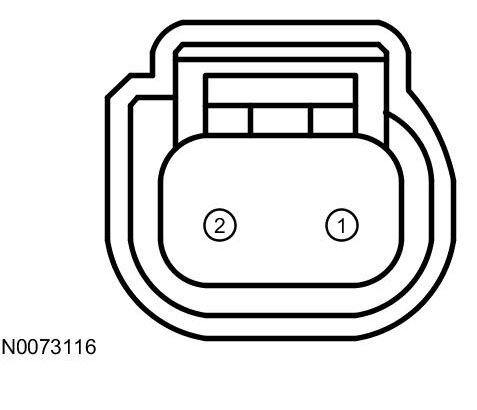

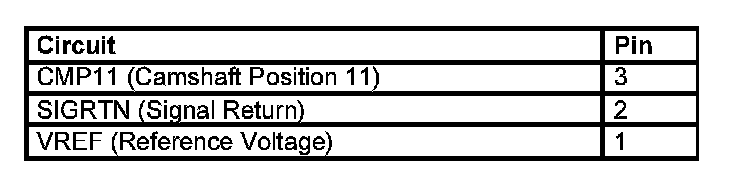

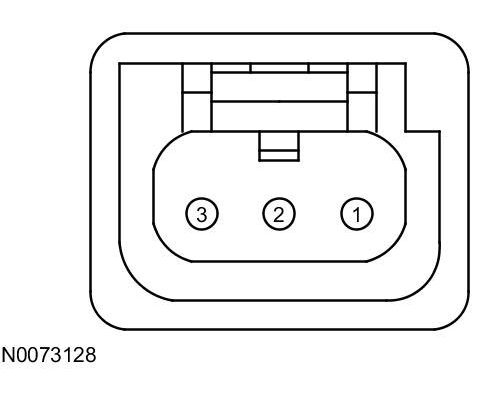

Camshaft Position 11 (CMP11) Sensor Connector





Harness Side

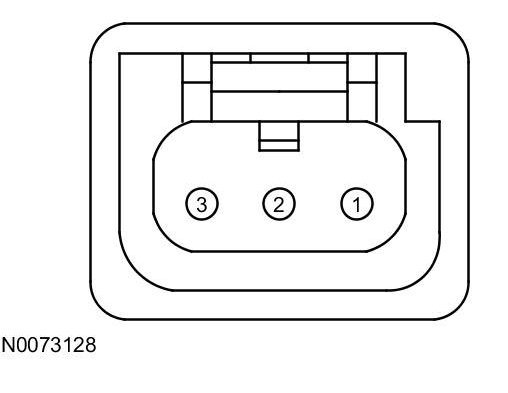

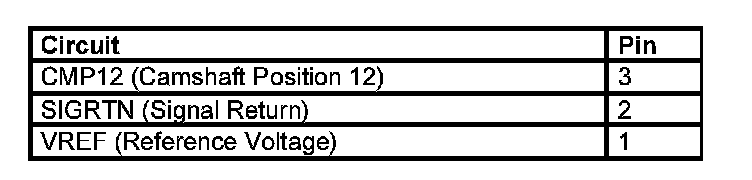

Camshaft Position 12 (CMP12) Sensor Connector





Harness Side

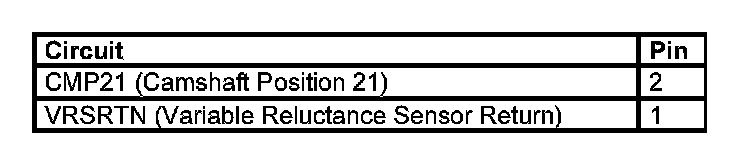

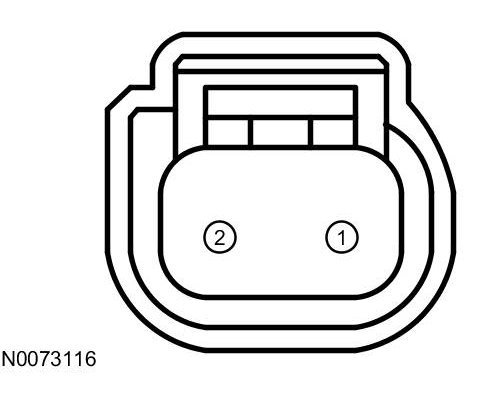

Camshaft Position 21 (CMP21) Sensor Connector





Harness Side

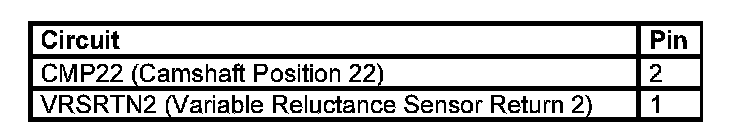

Camshaft Position 22 (CMP22) Sensor Connector





Harness Side

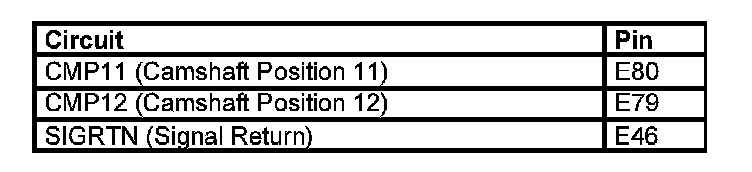

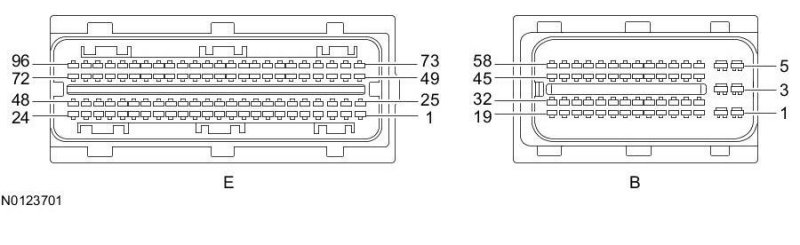

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference values.




Harness Side
