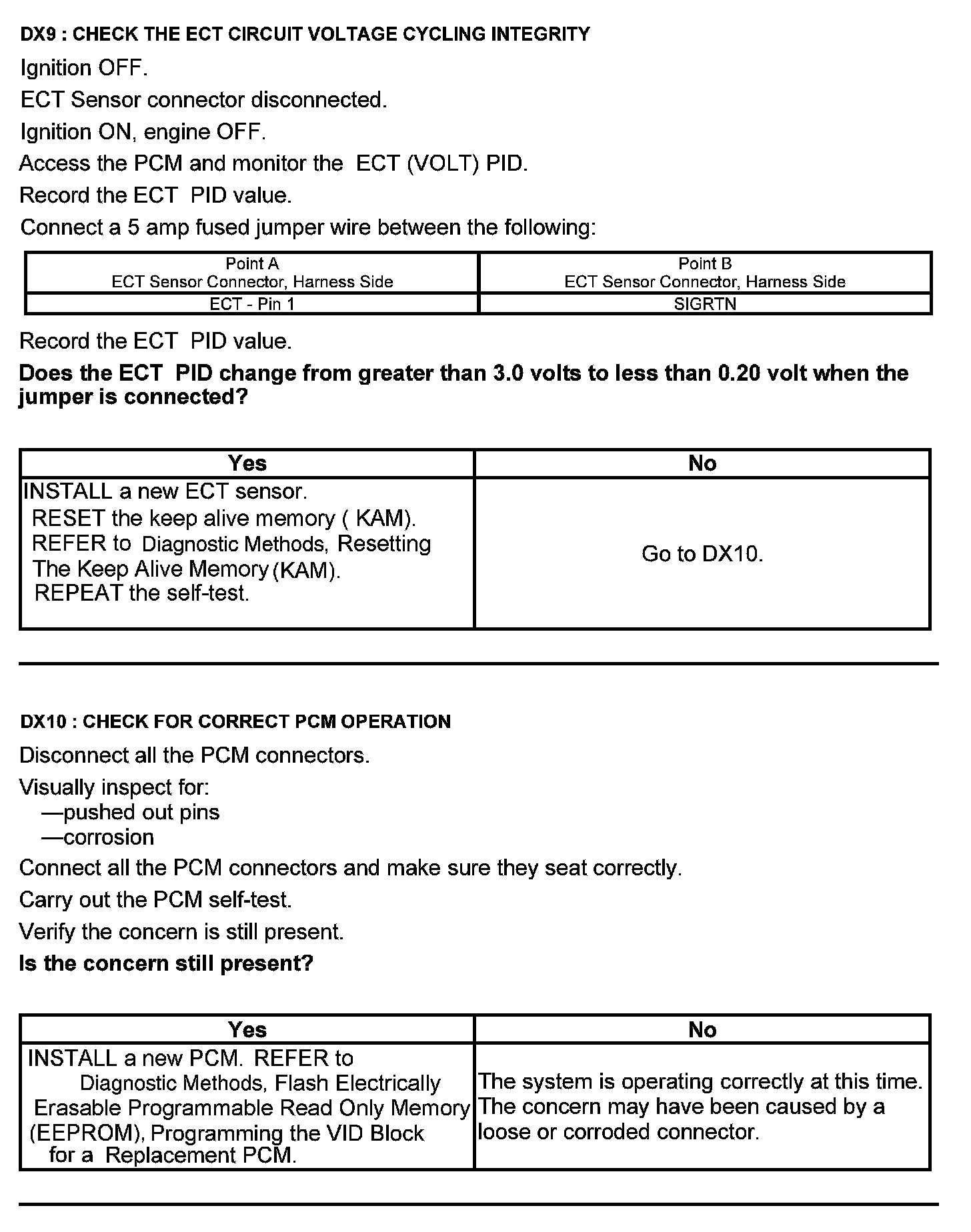

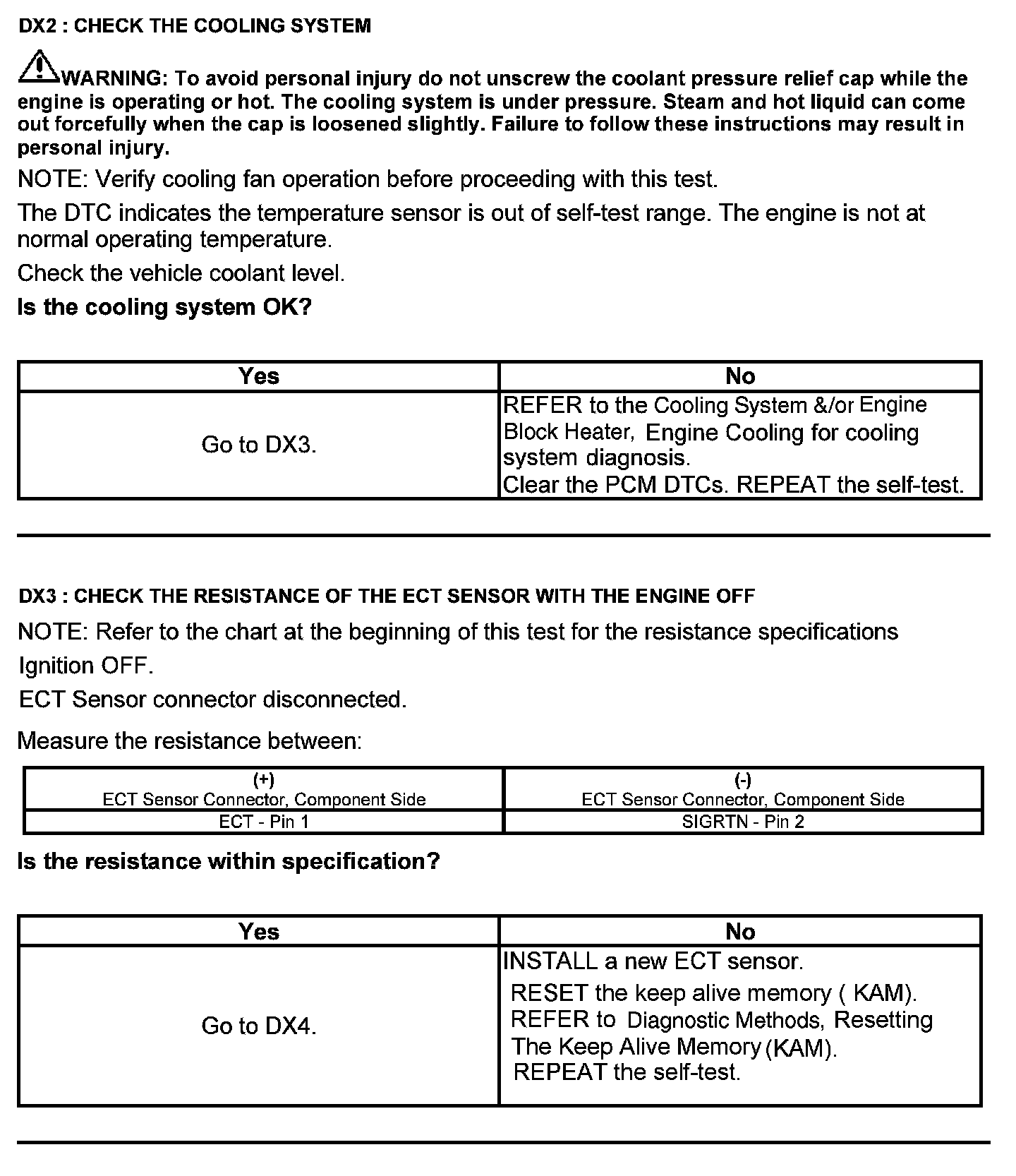

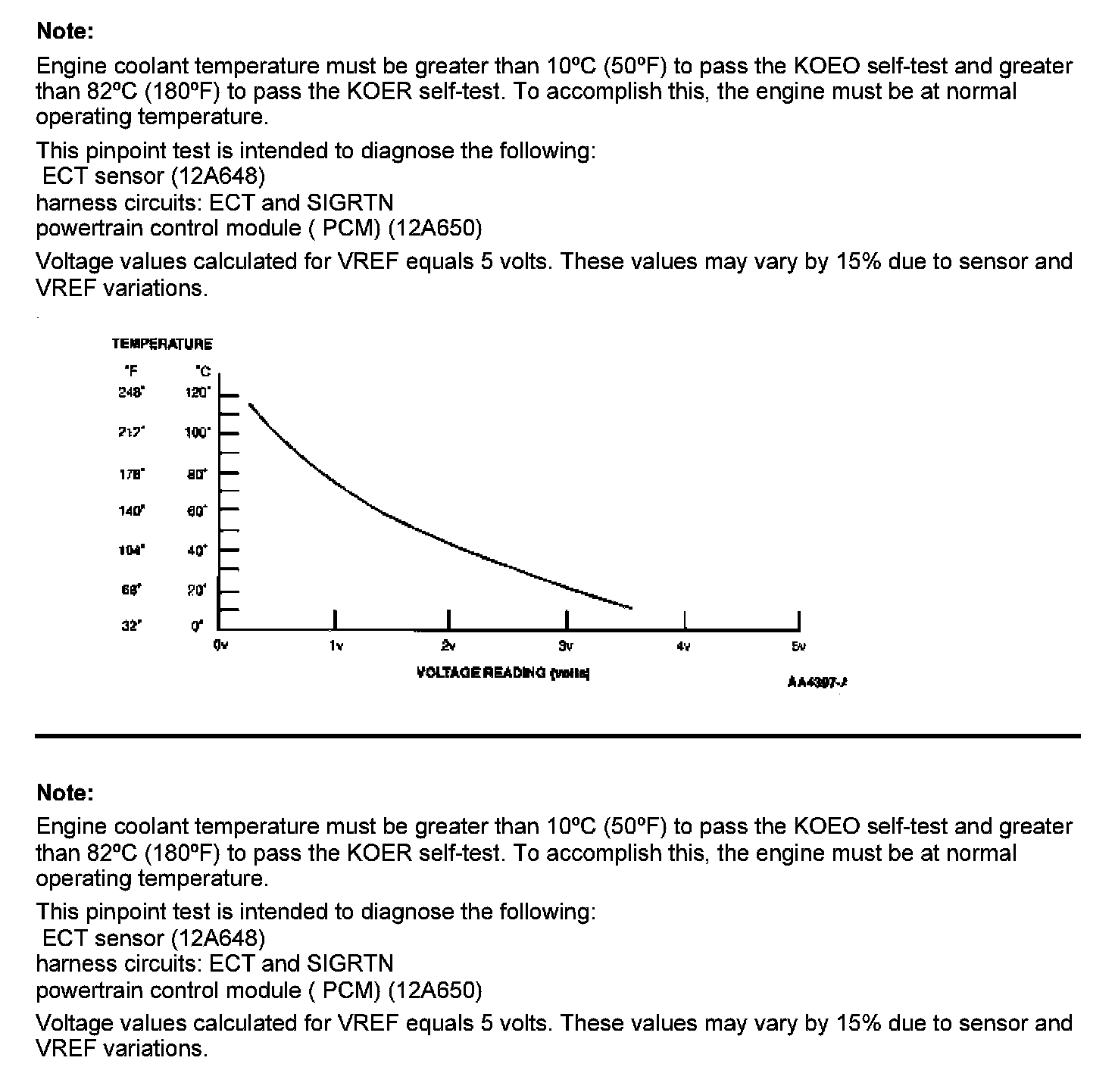

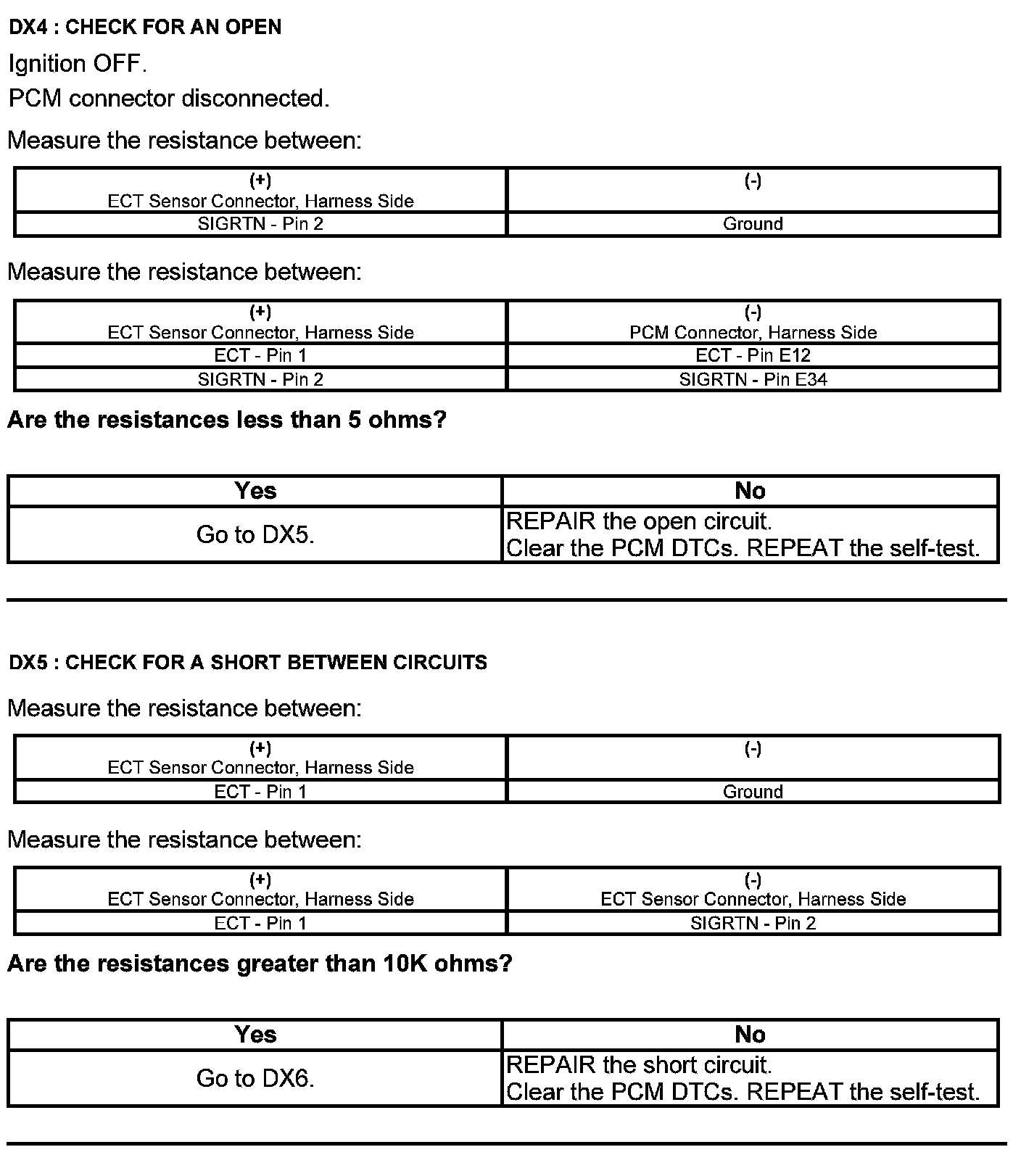

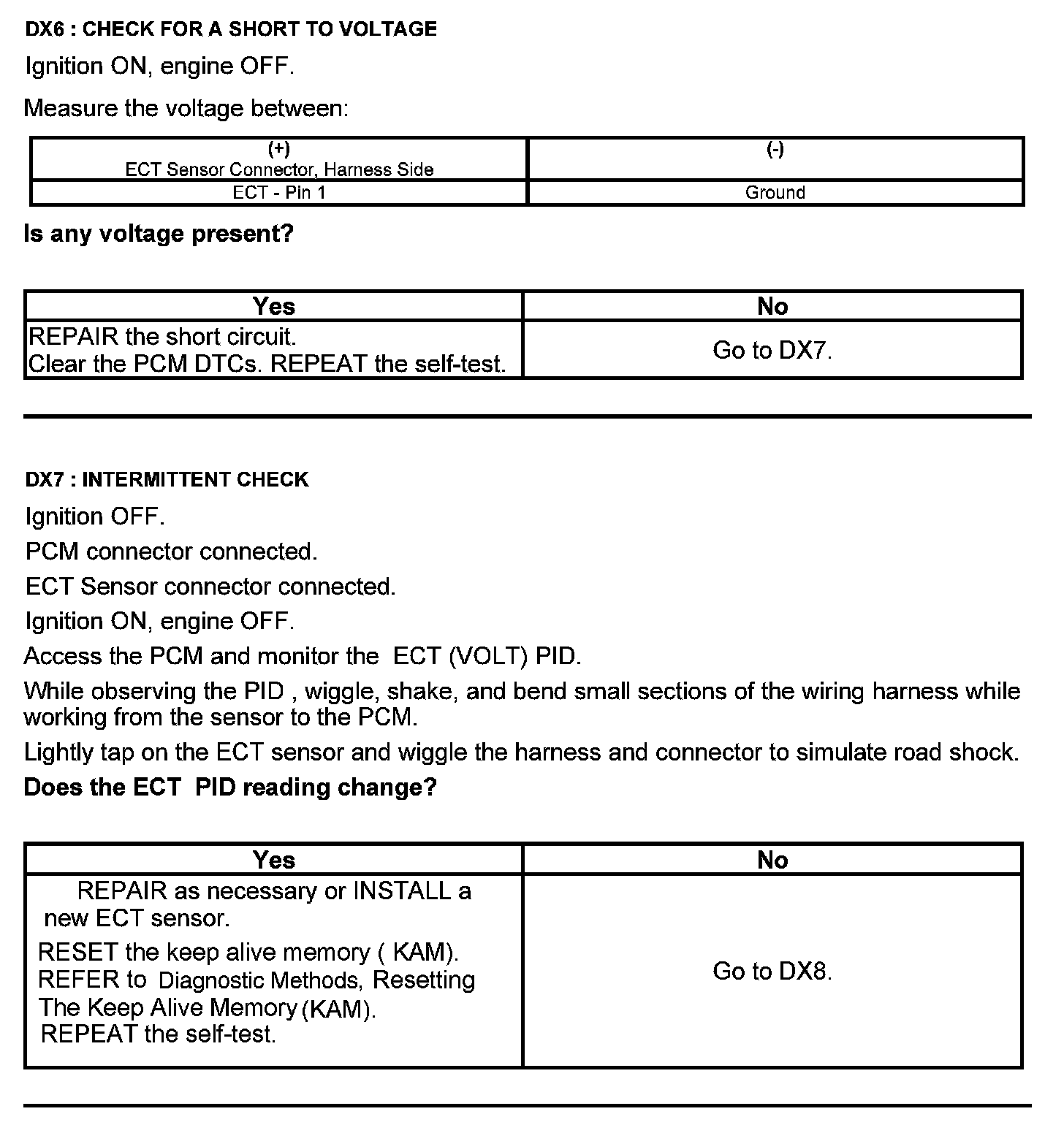

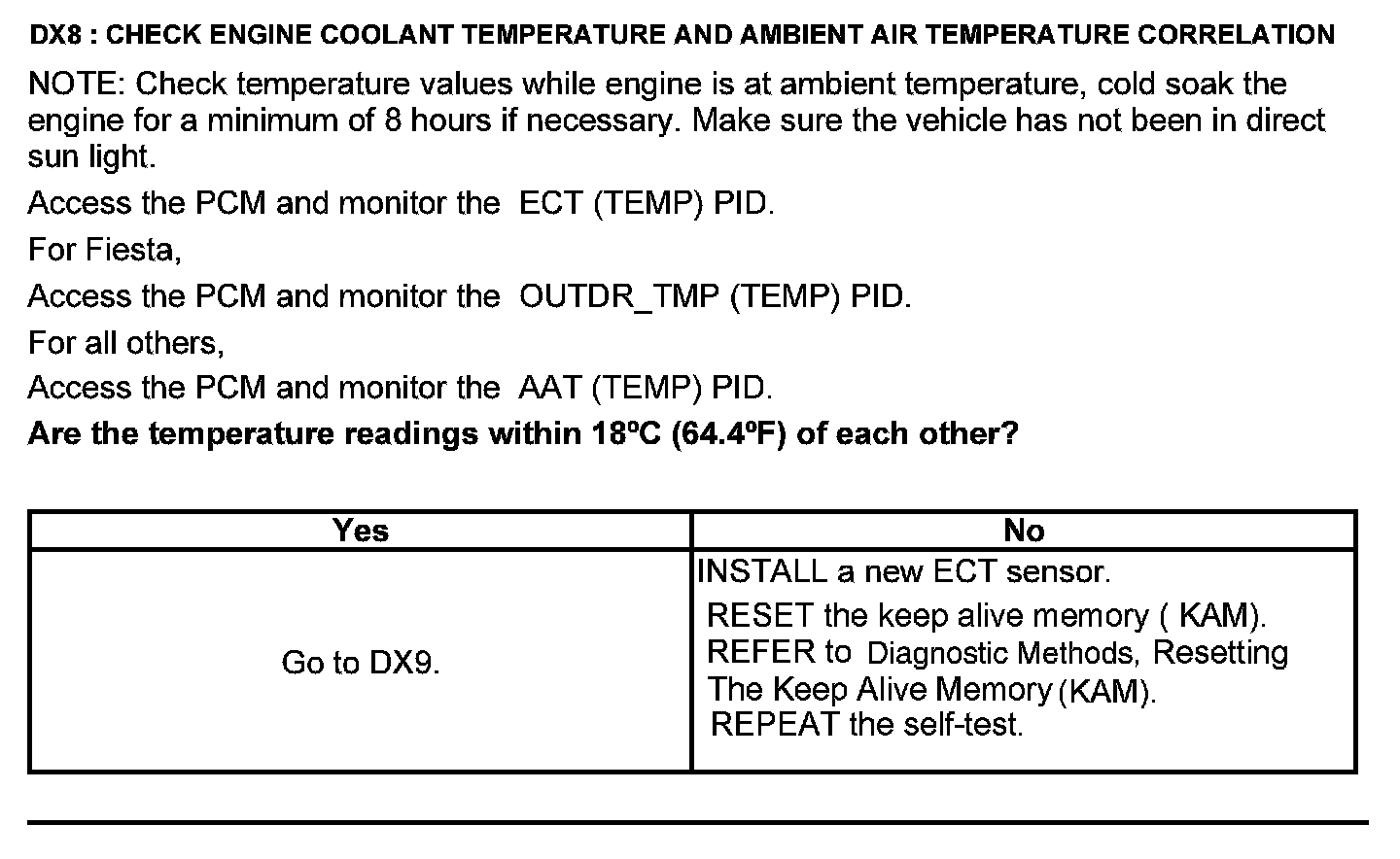

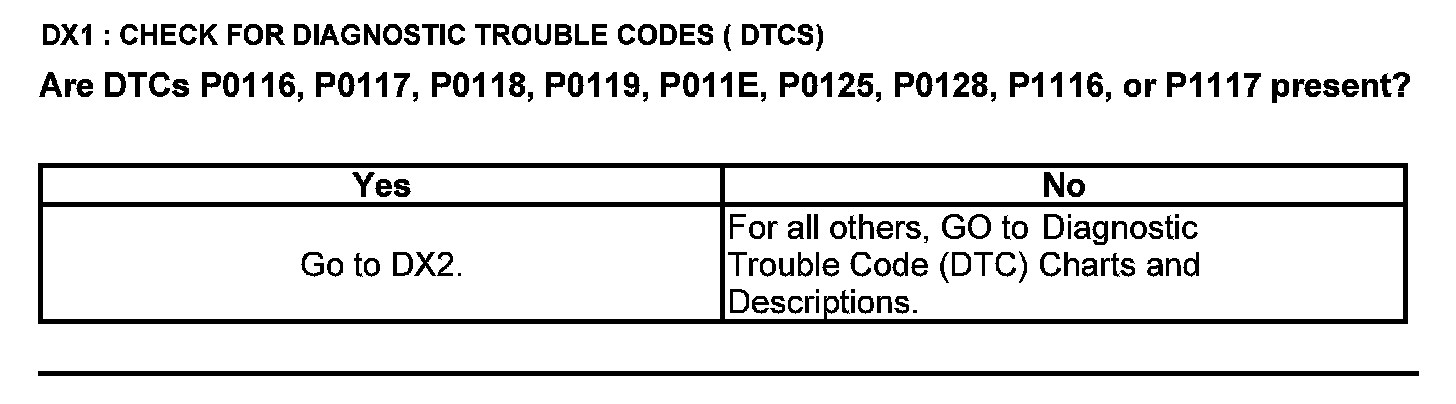

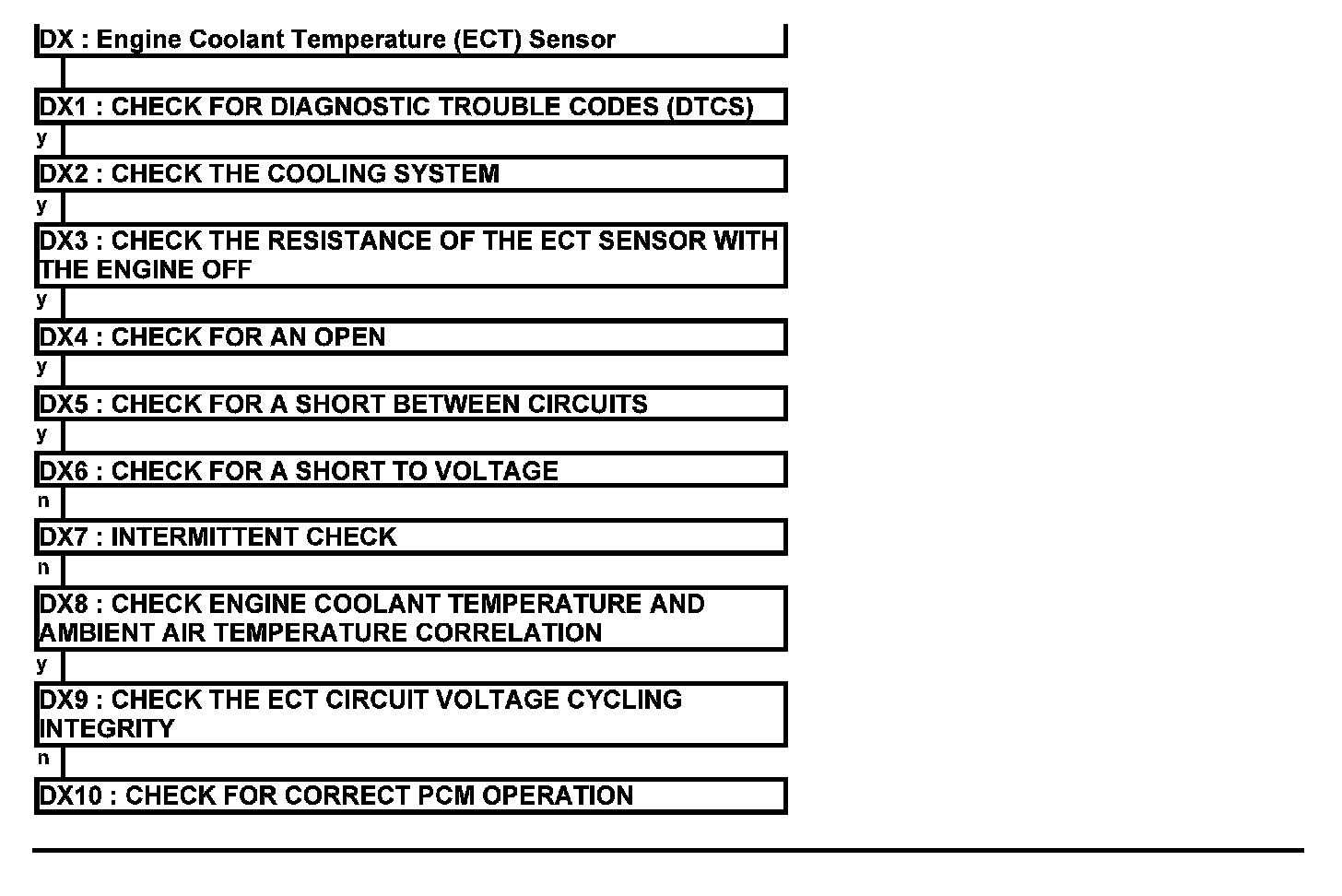

Test DX: Engine Coolant Temperature (ECT) Sensor

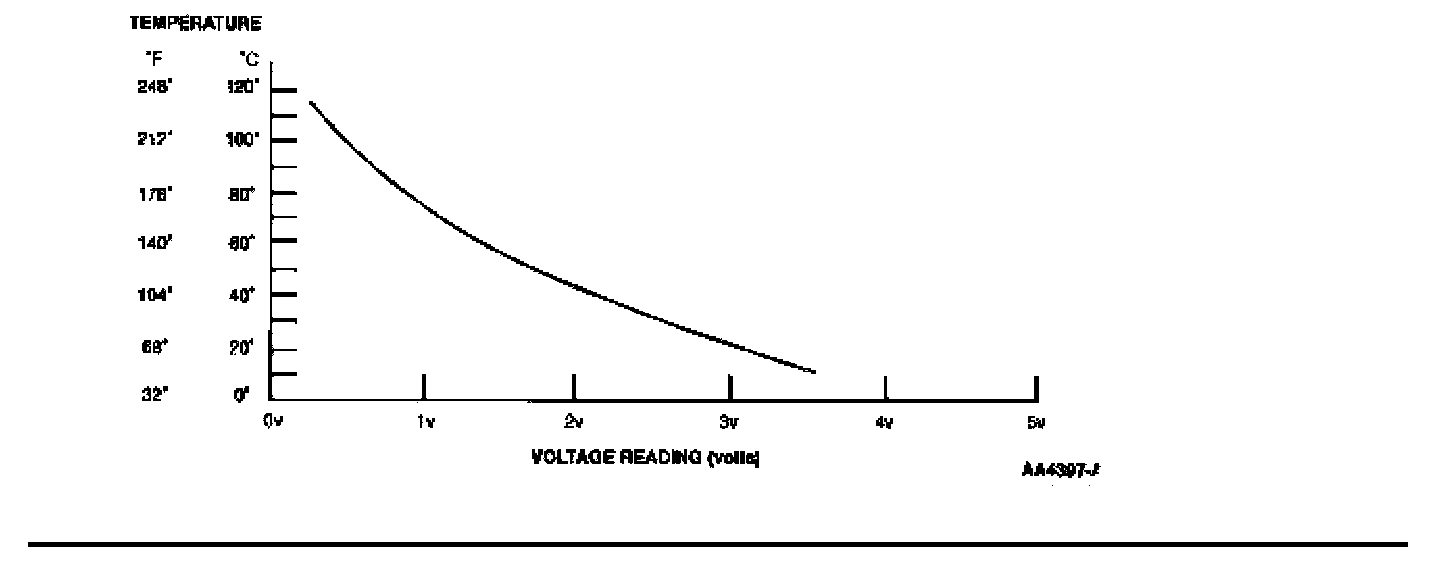

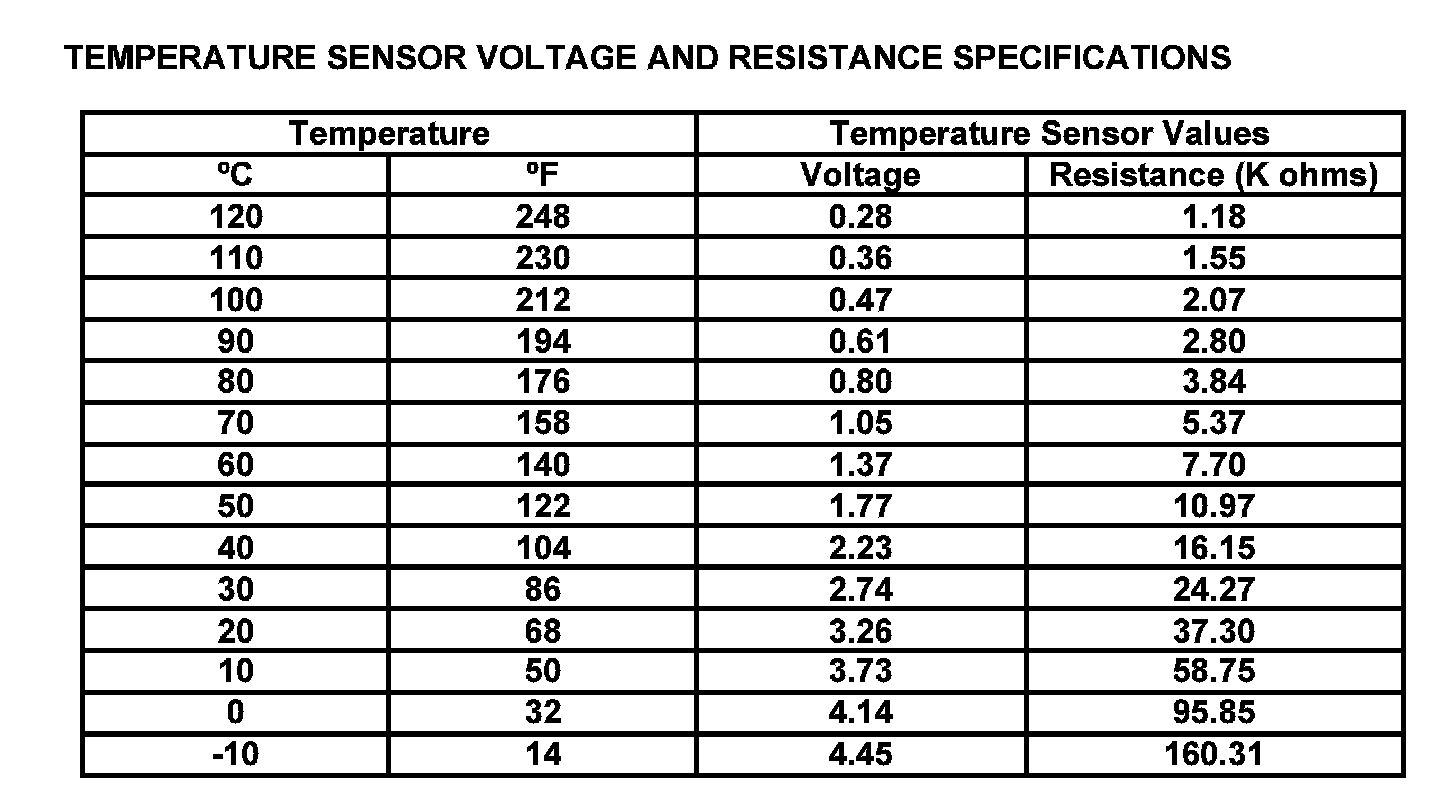

Engine Coolant Temperature (ECT) Sensor

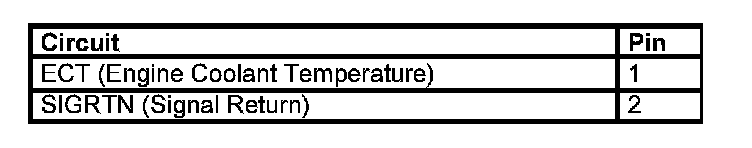

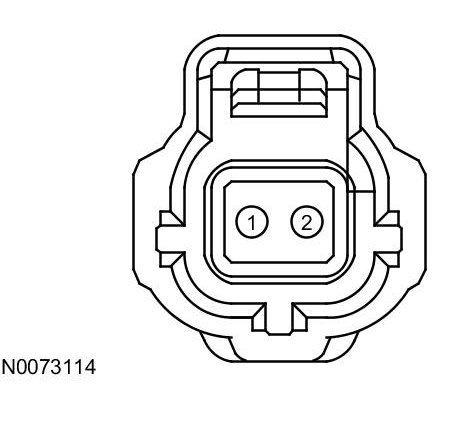

Engine Coolant Temperature (ECT) Sensor Connector





Harness Side

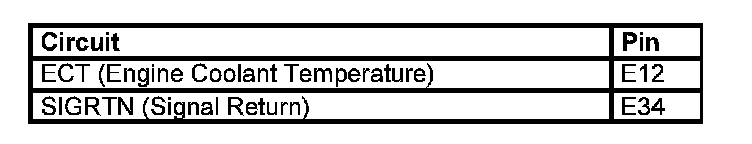

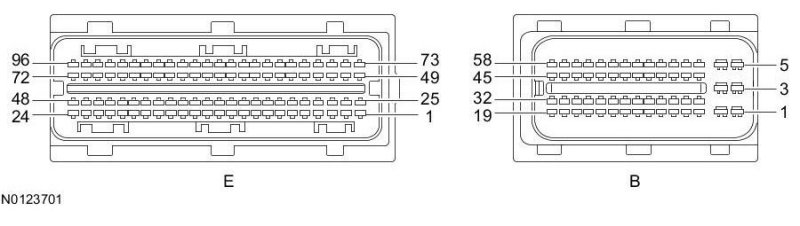

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
