Vehicles That Start

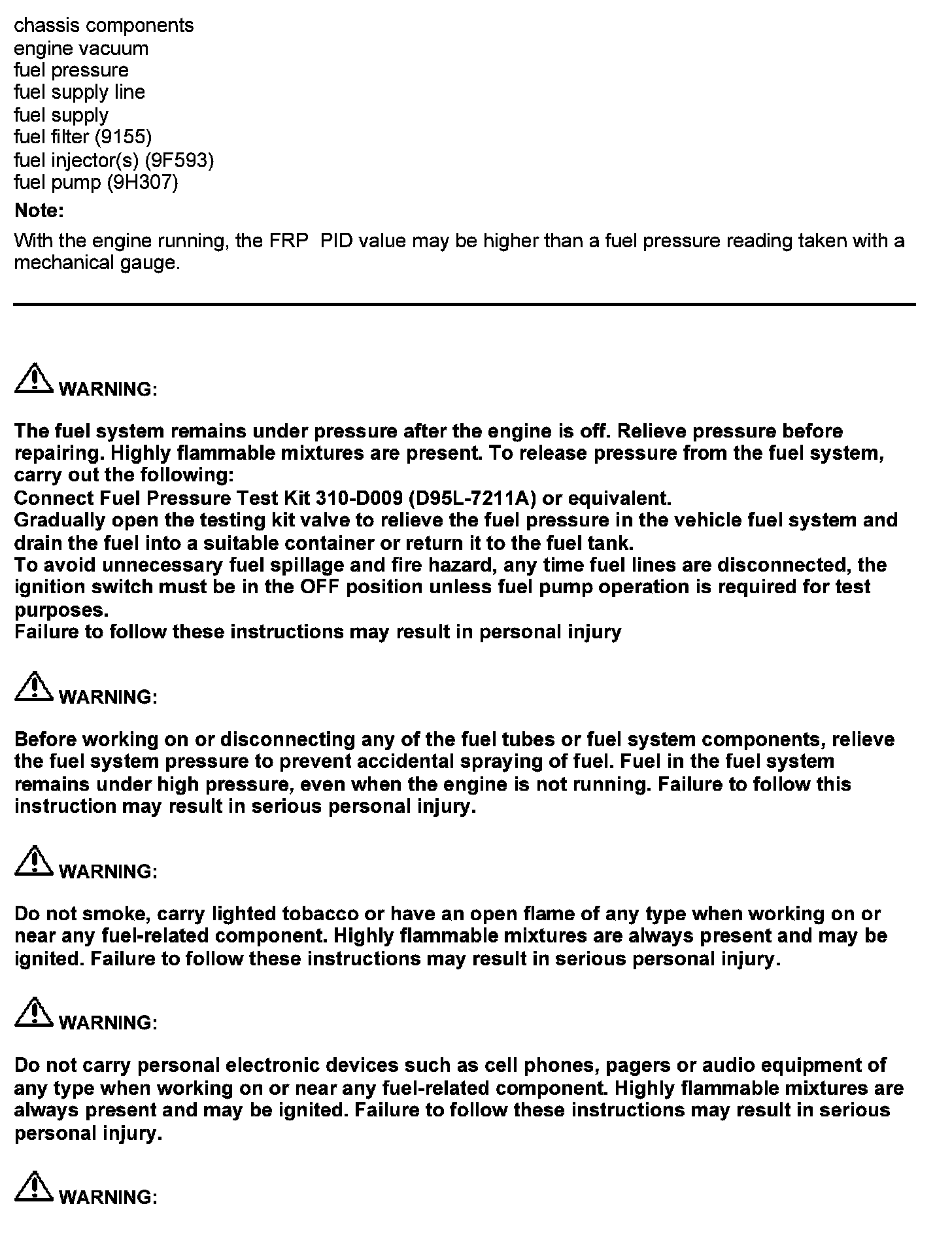

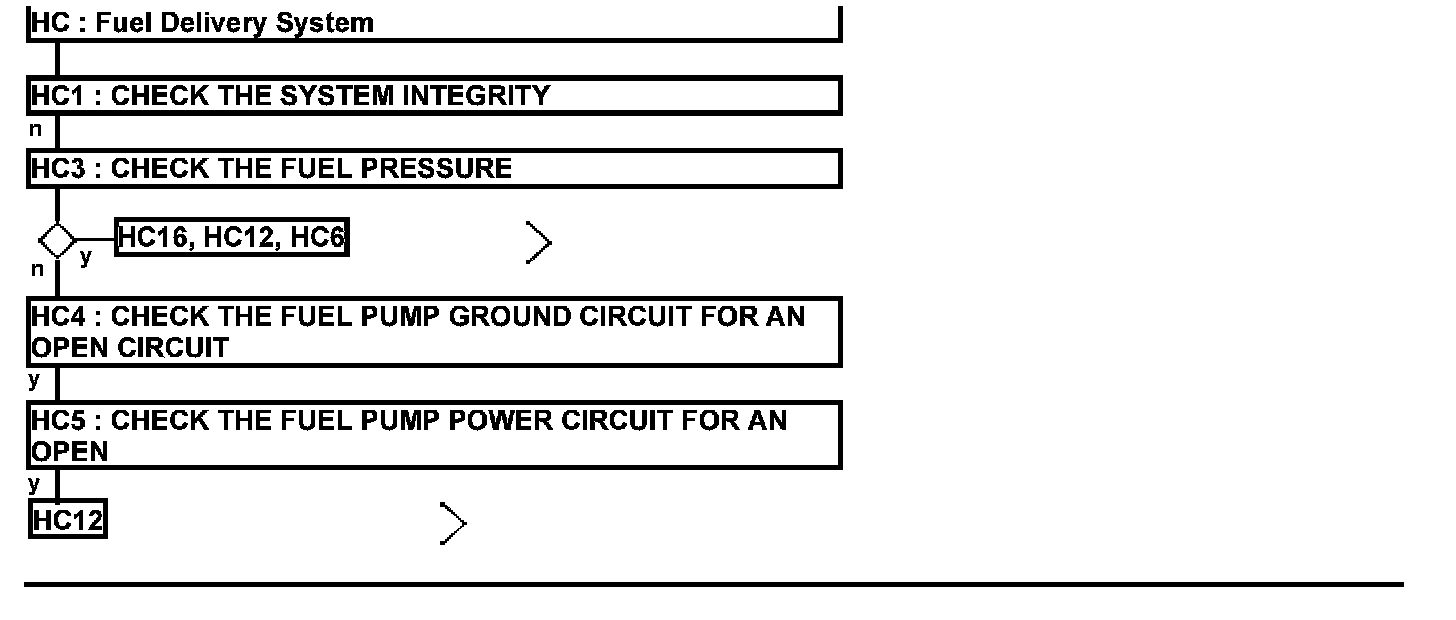

Fuel Delivery System - Vehicles that start

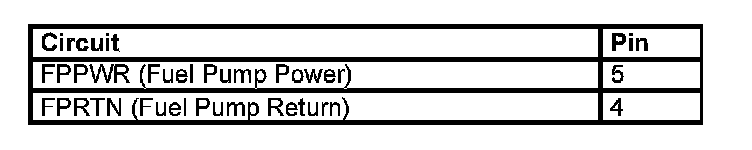

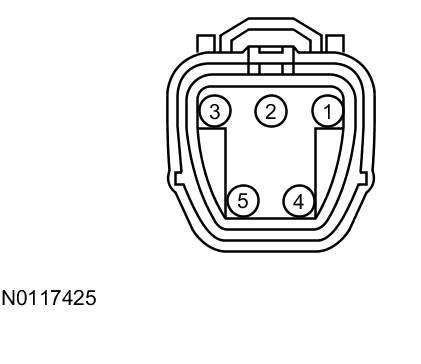

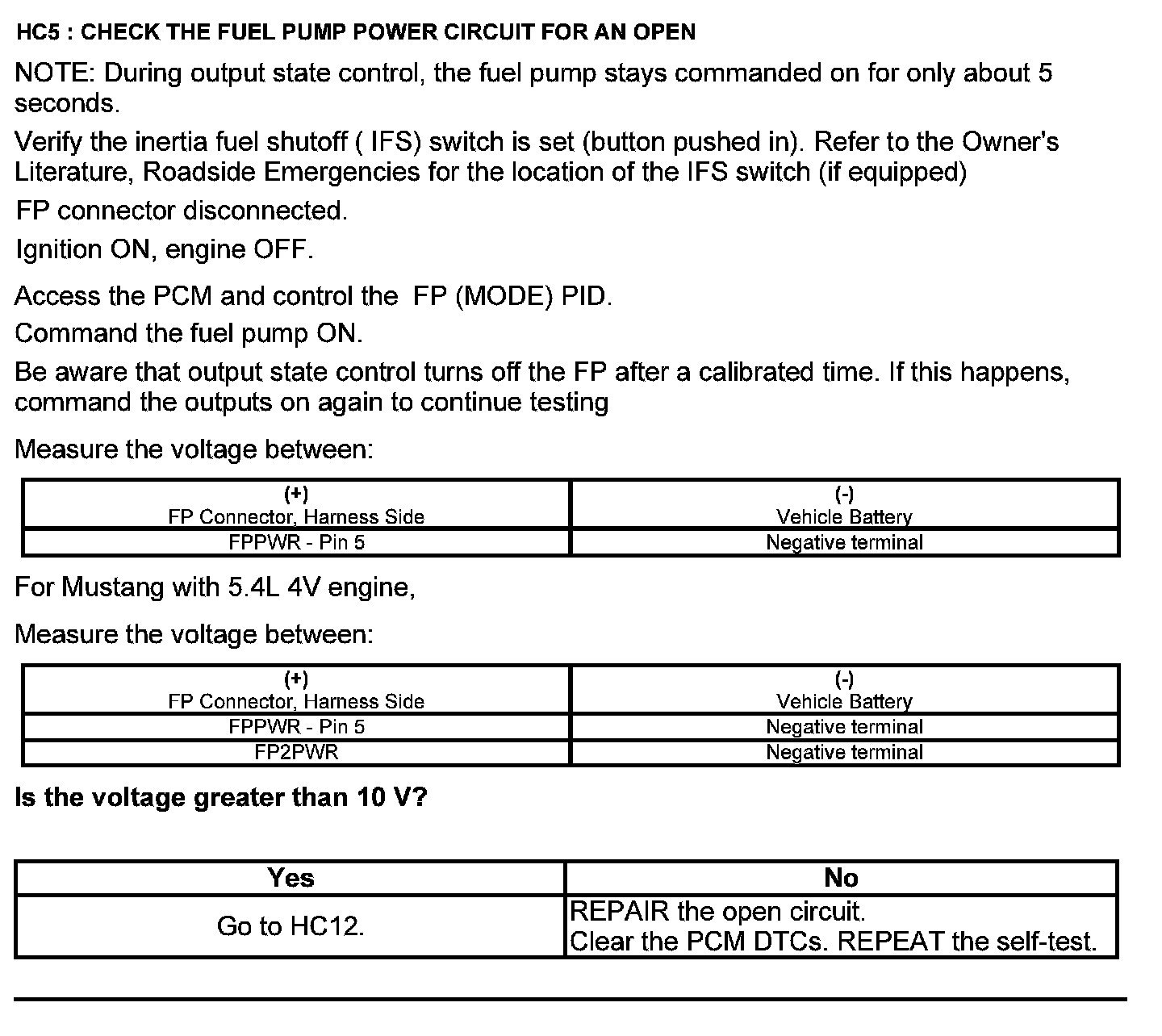

Fuel Pump (FP) Connector






Harness Side
