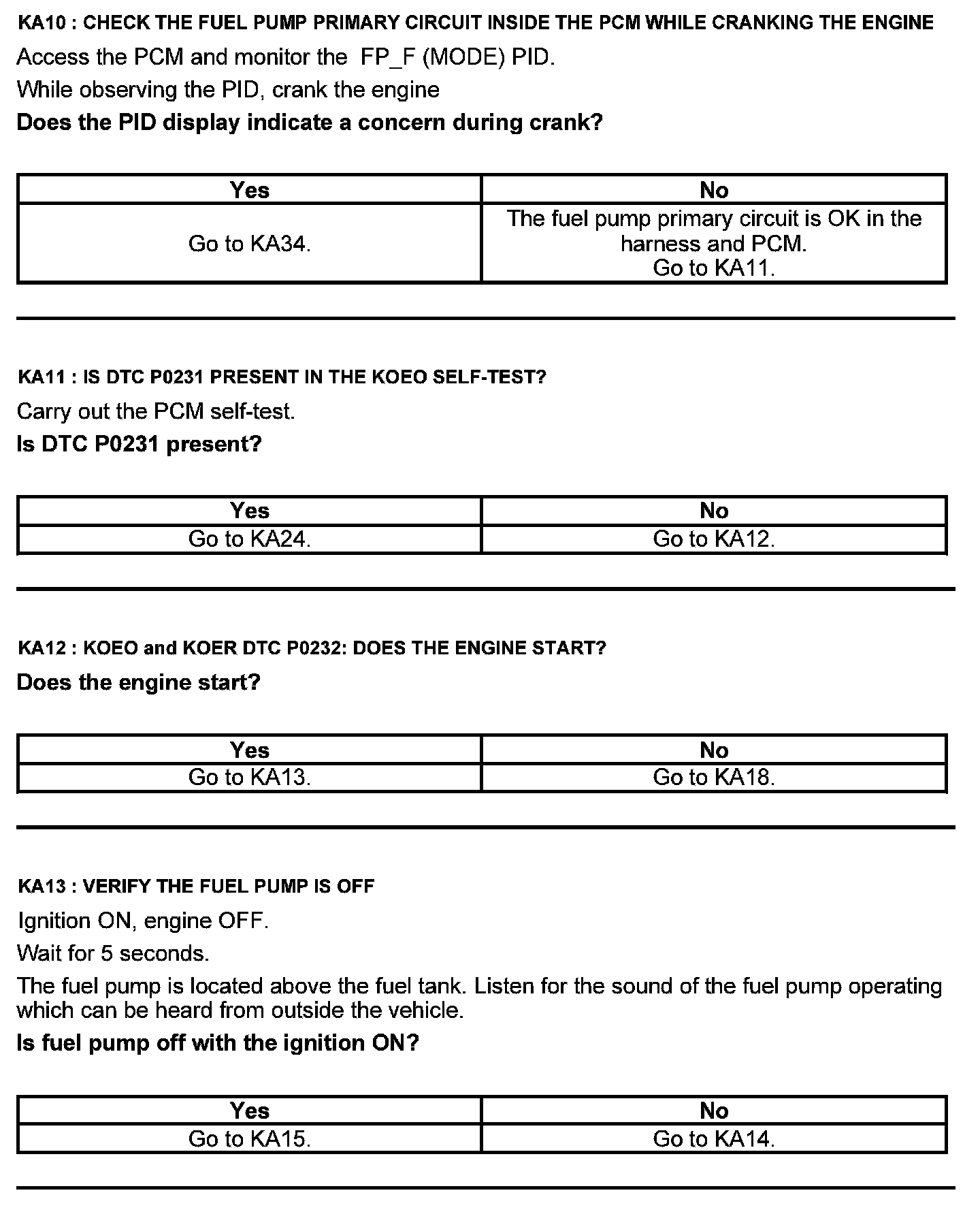

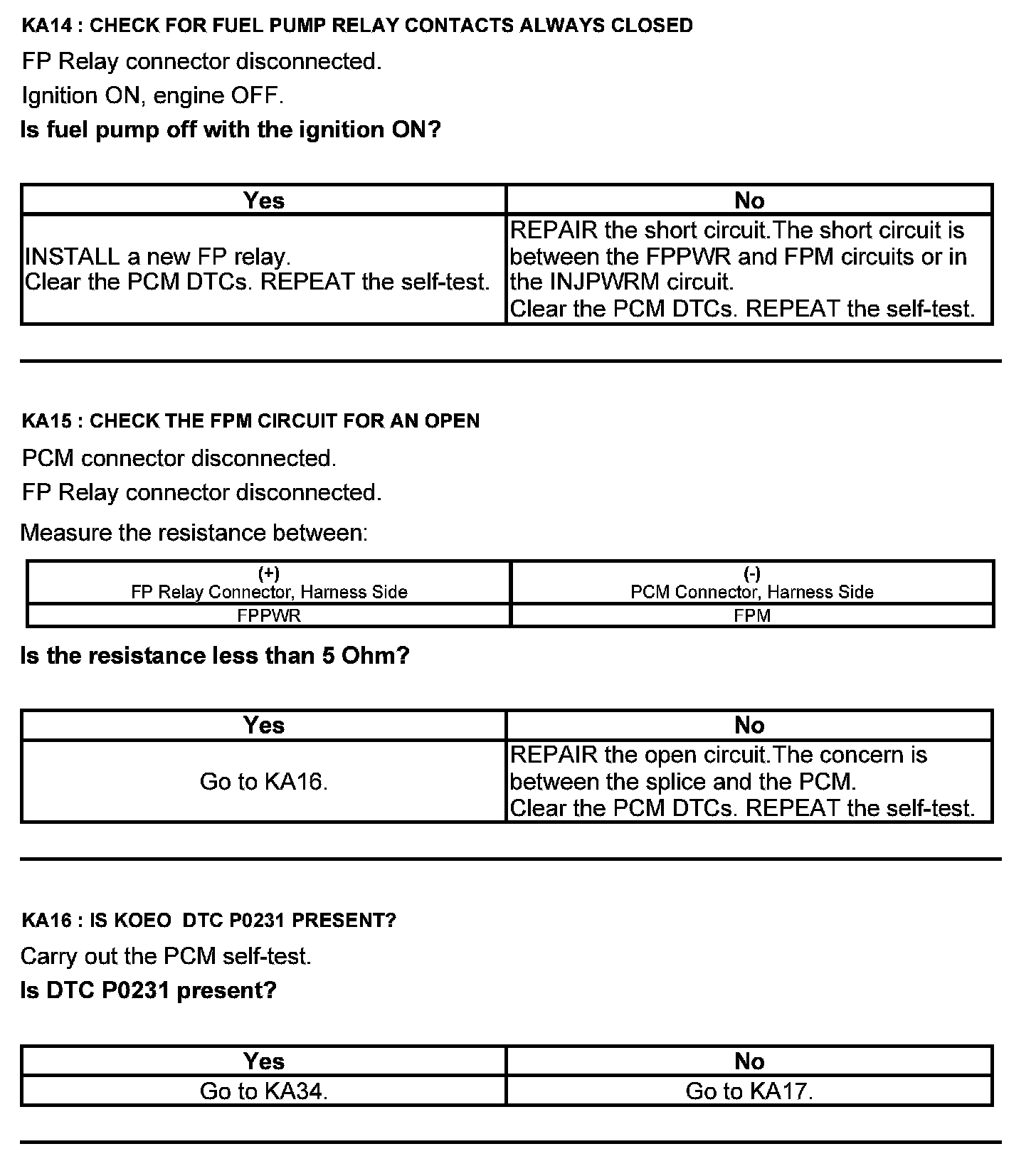

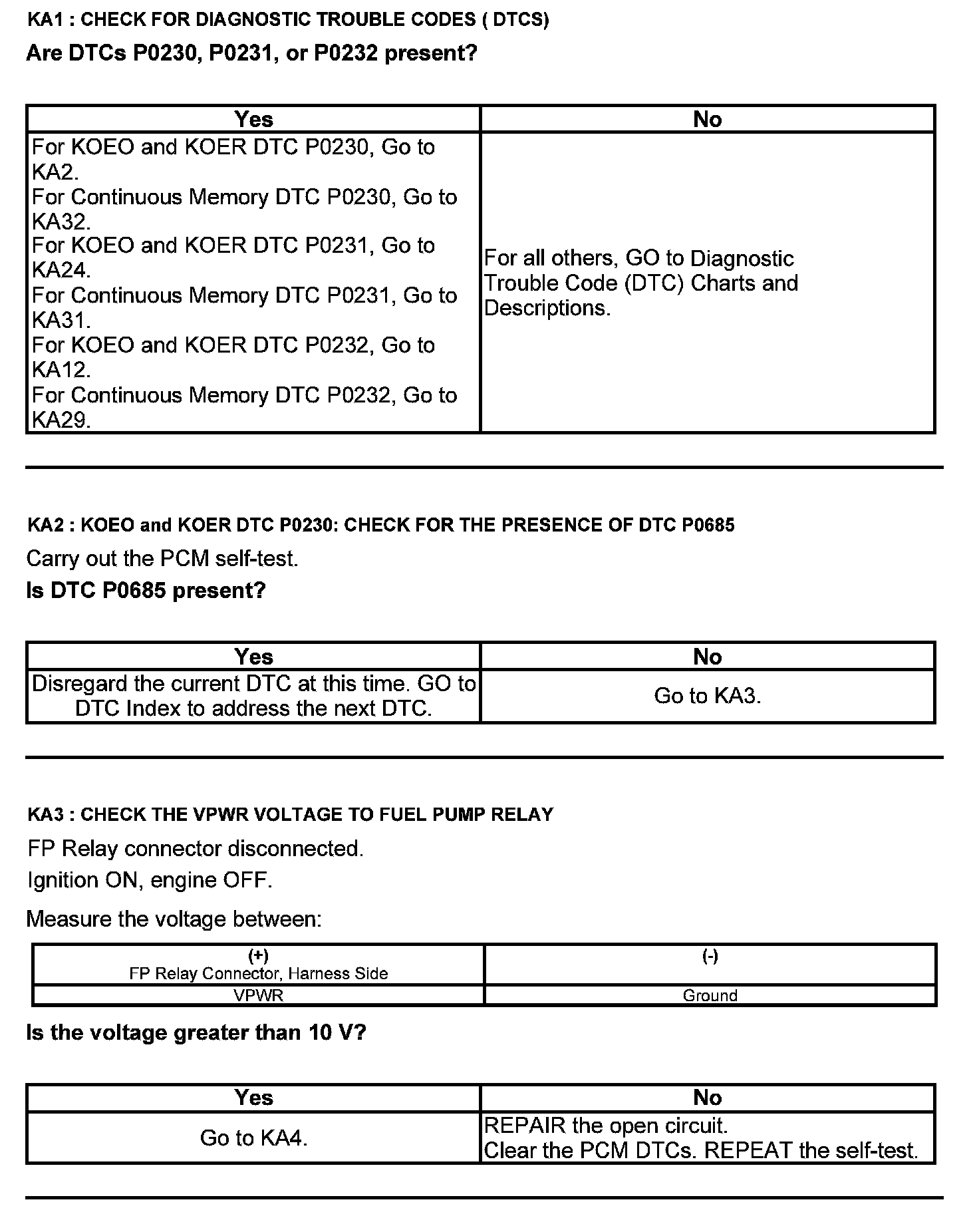

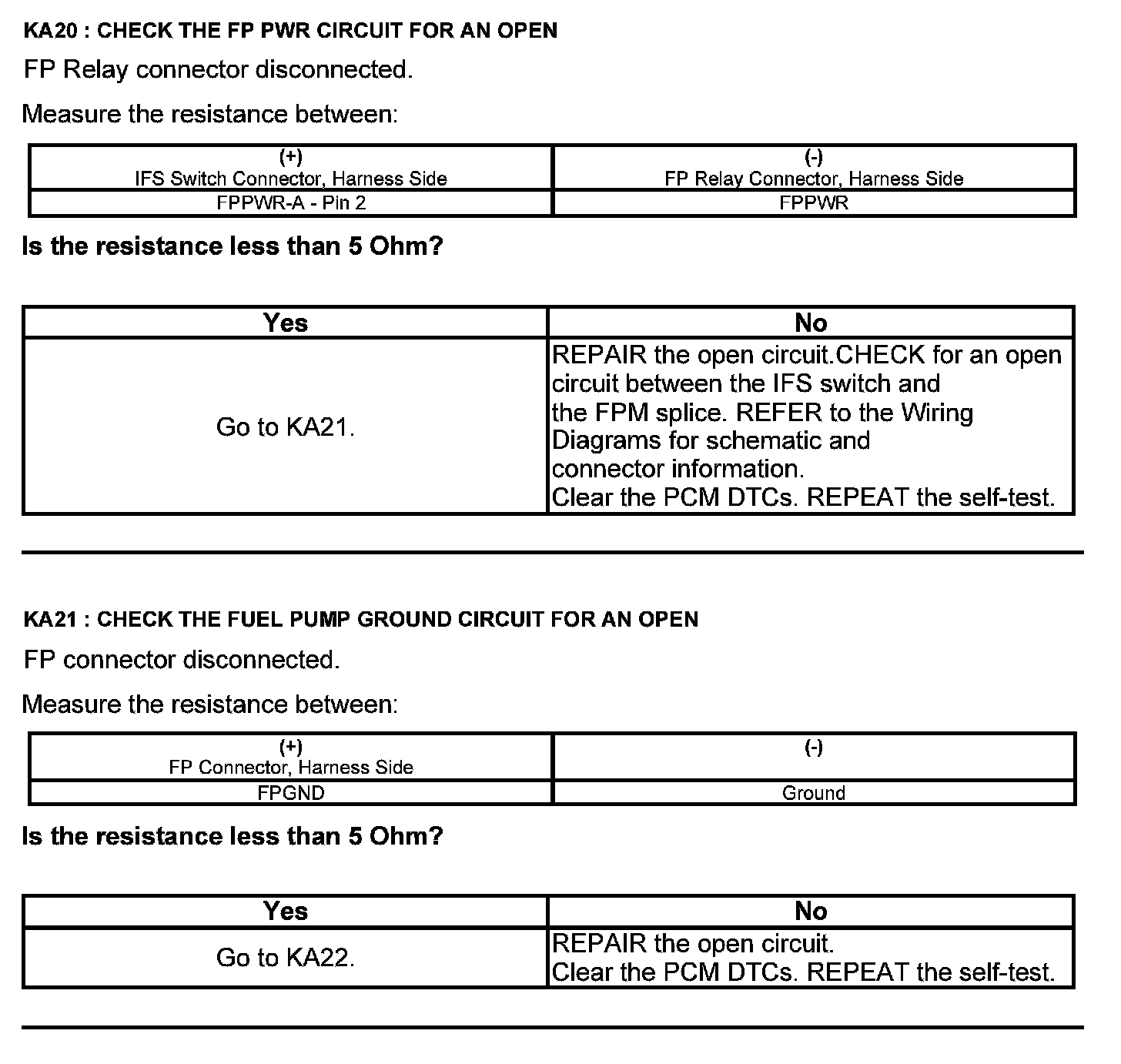

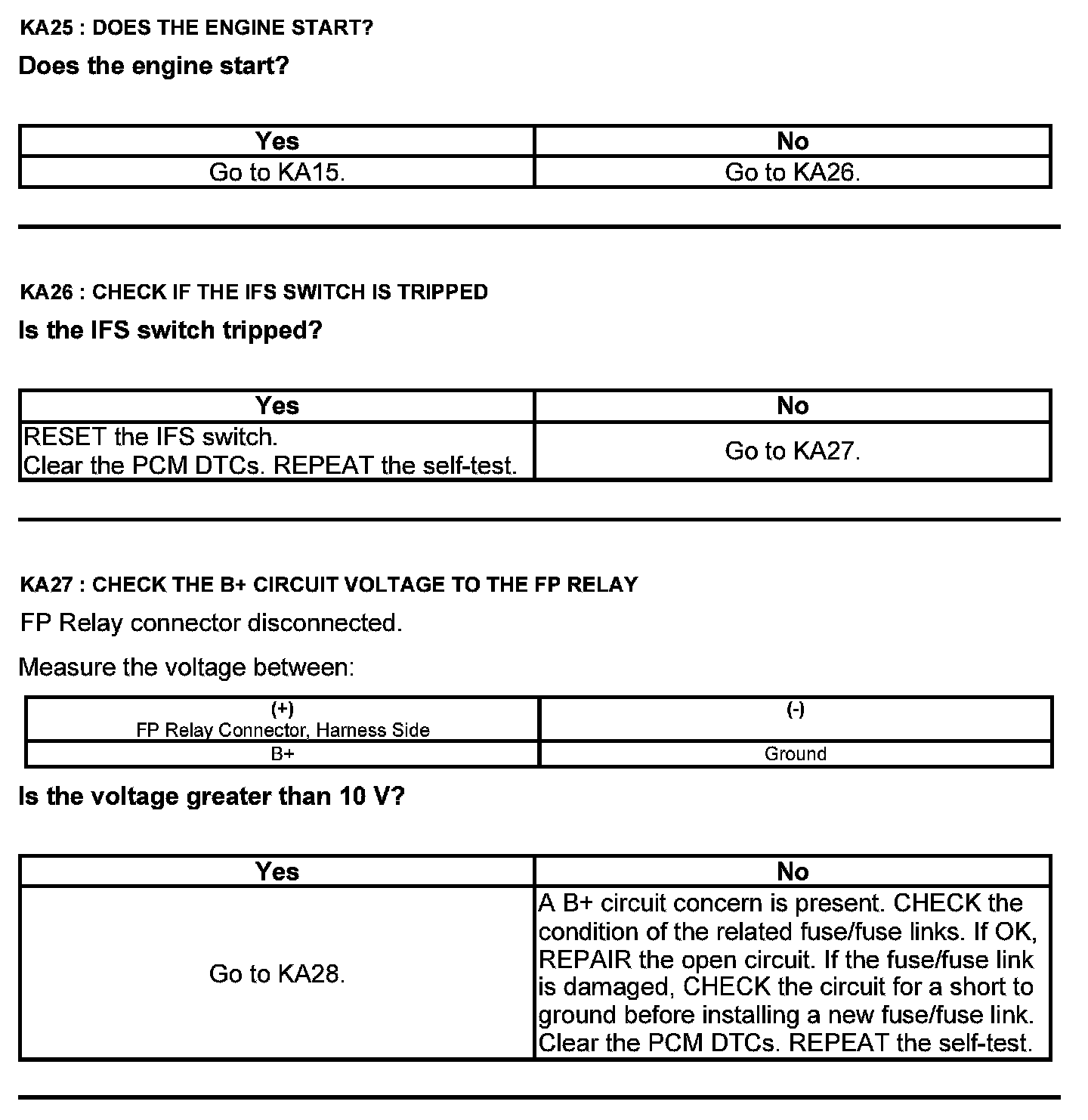

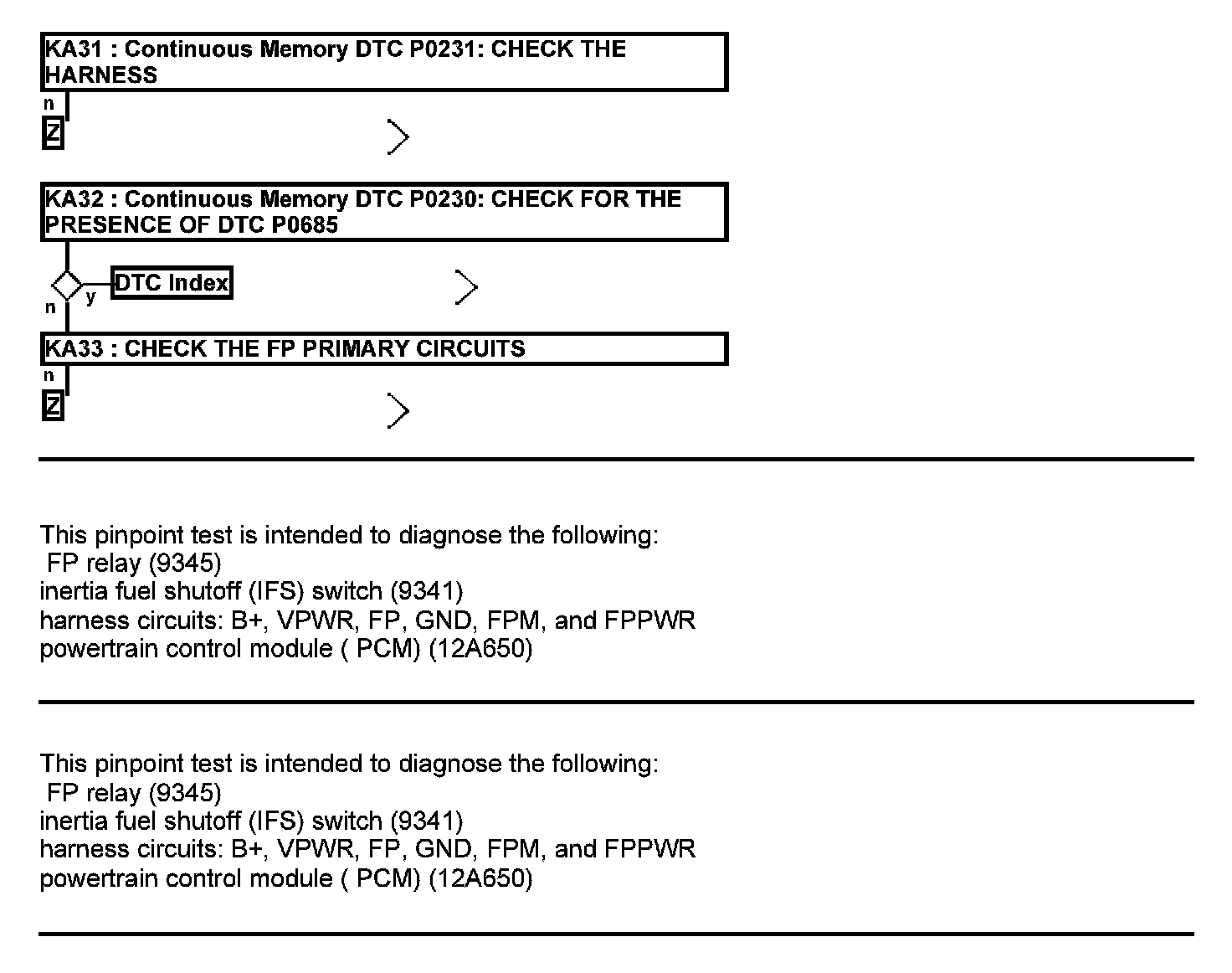

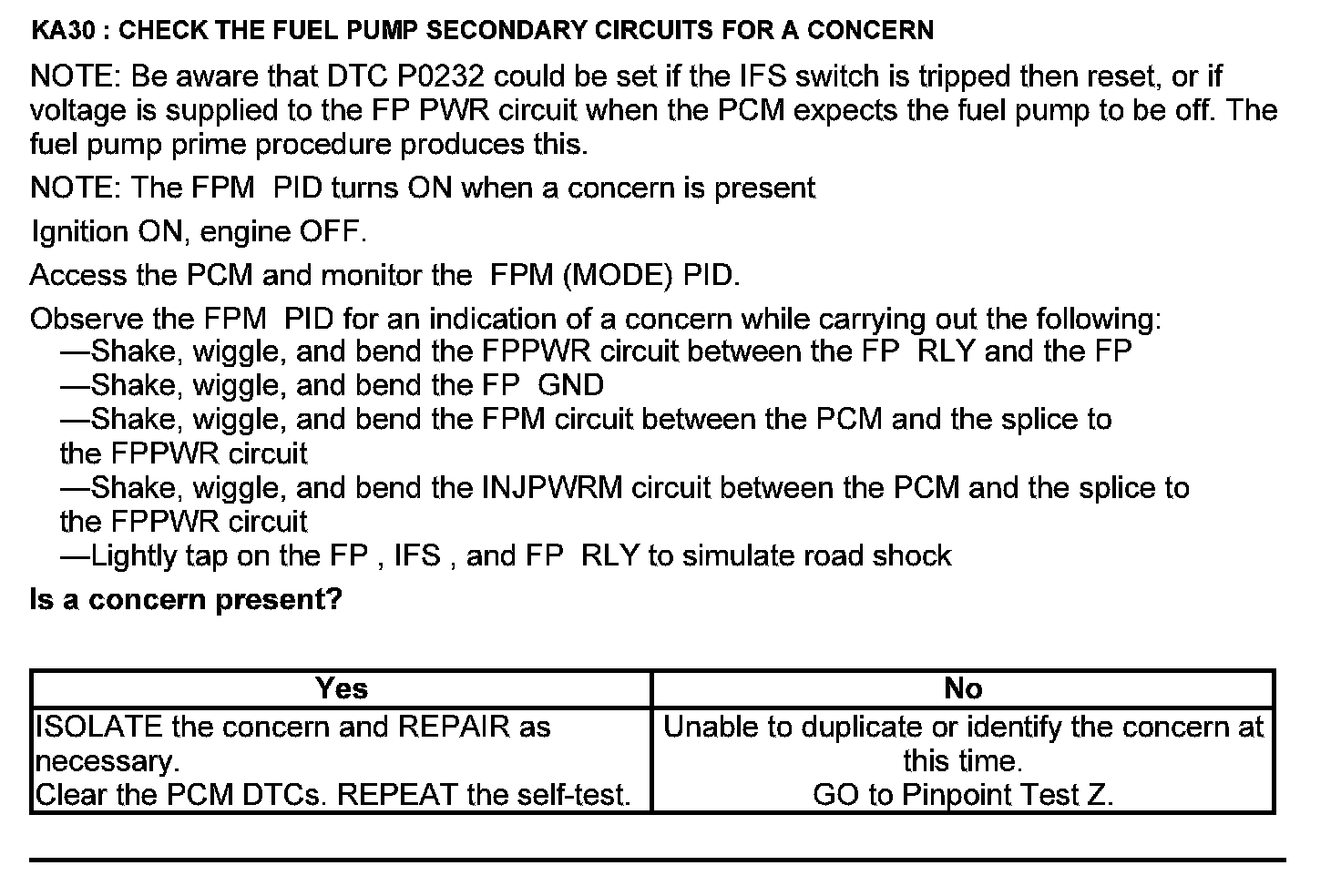

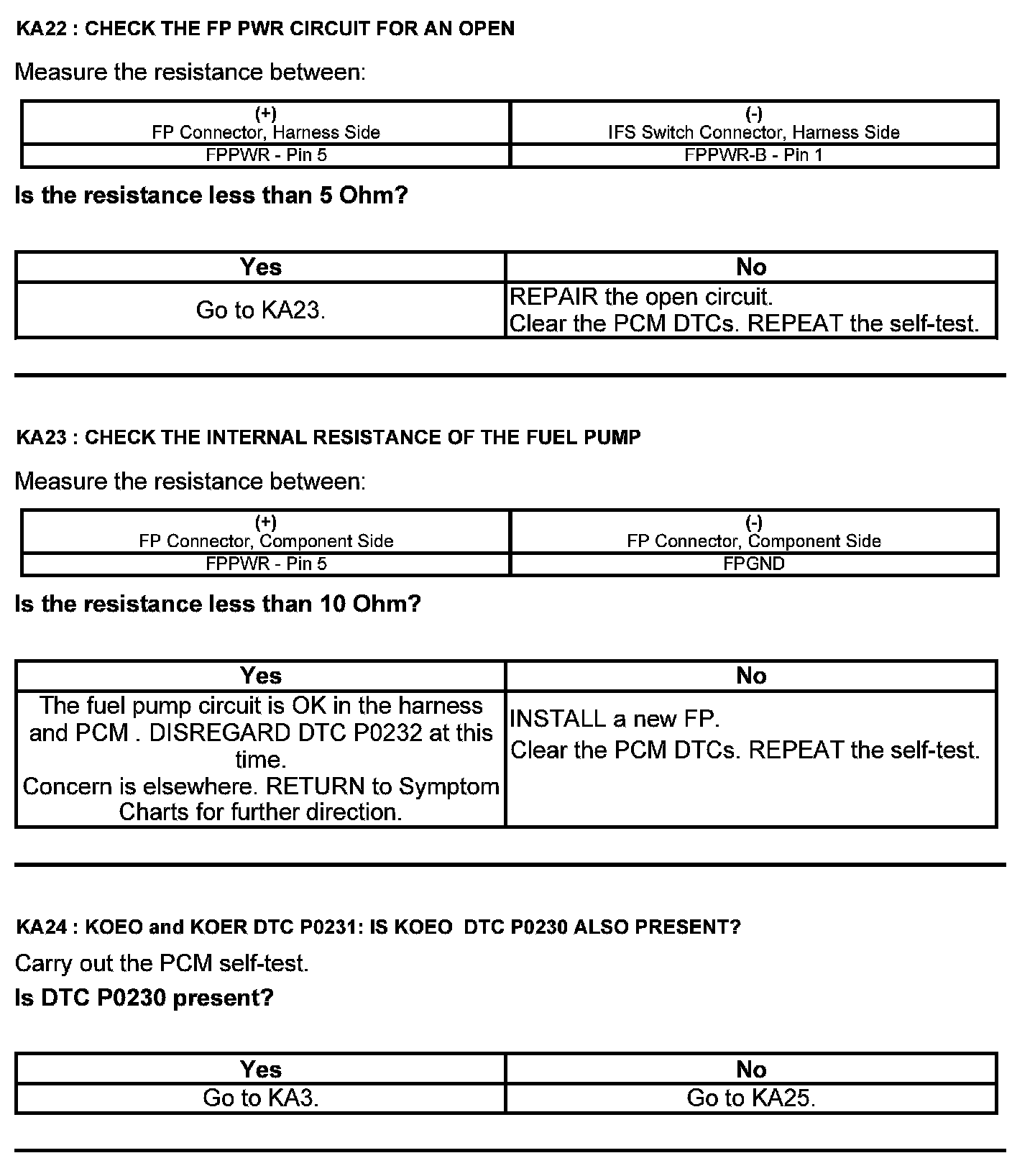

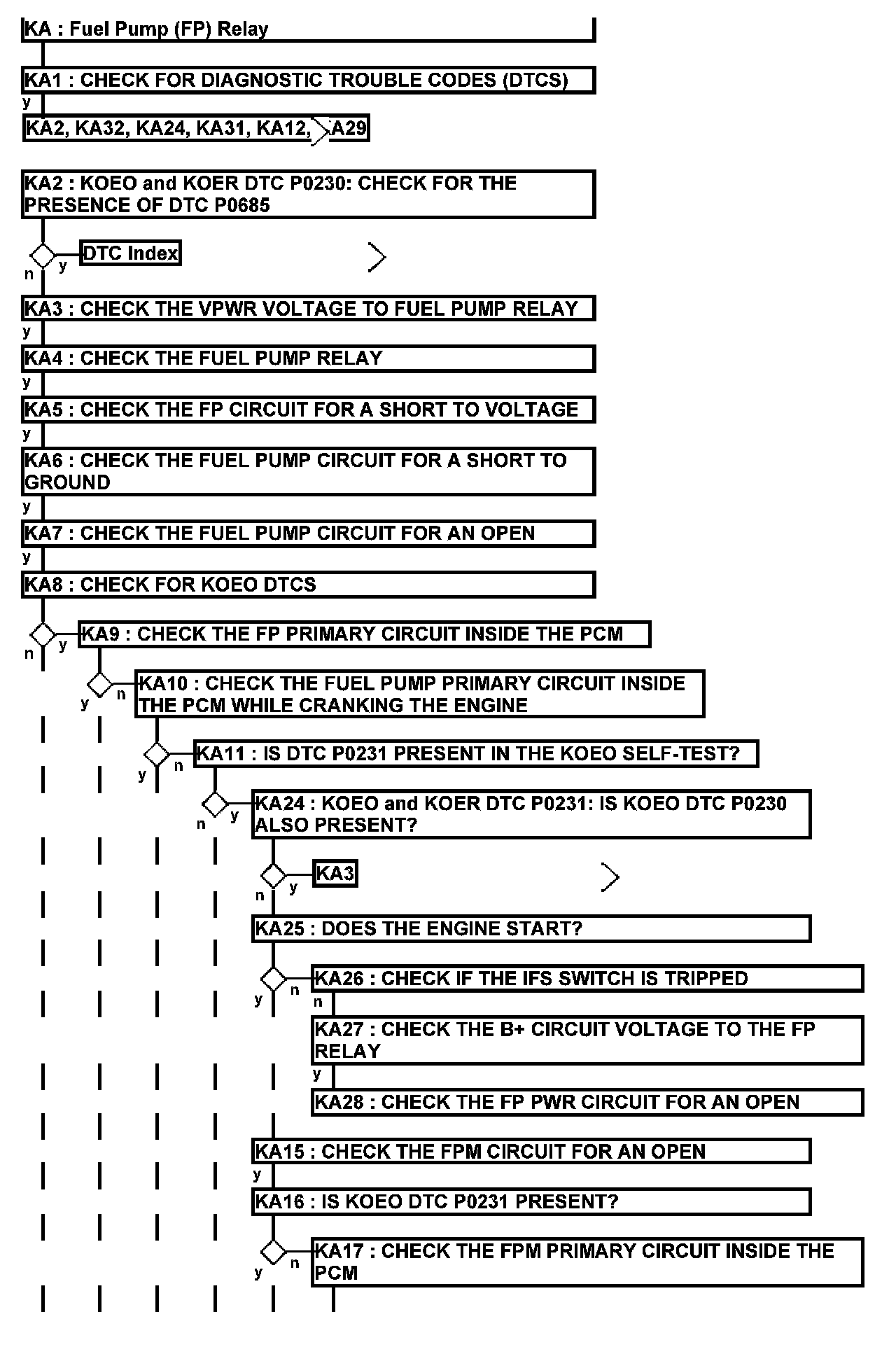

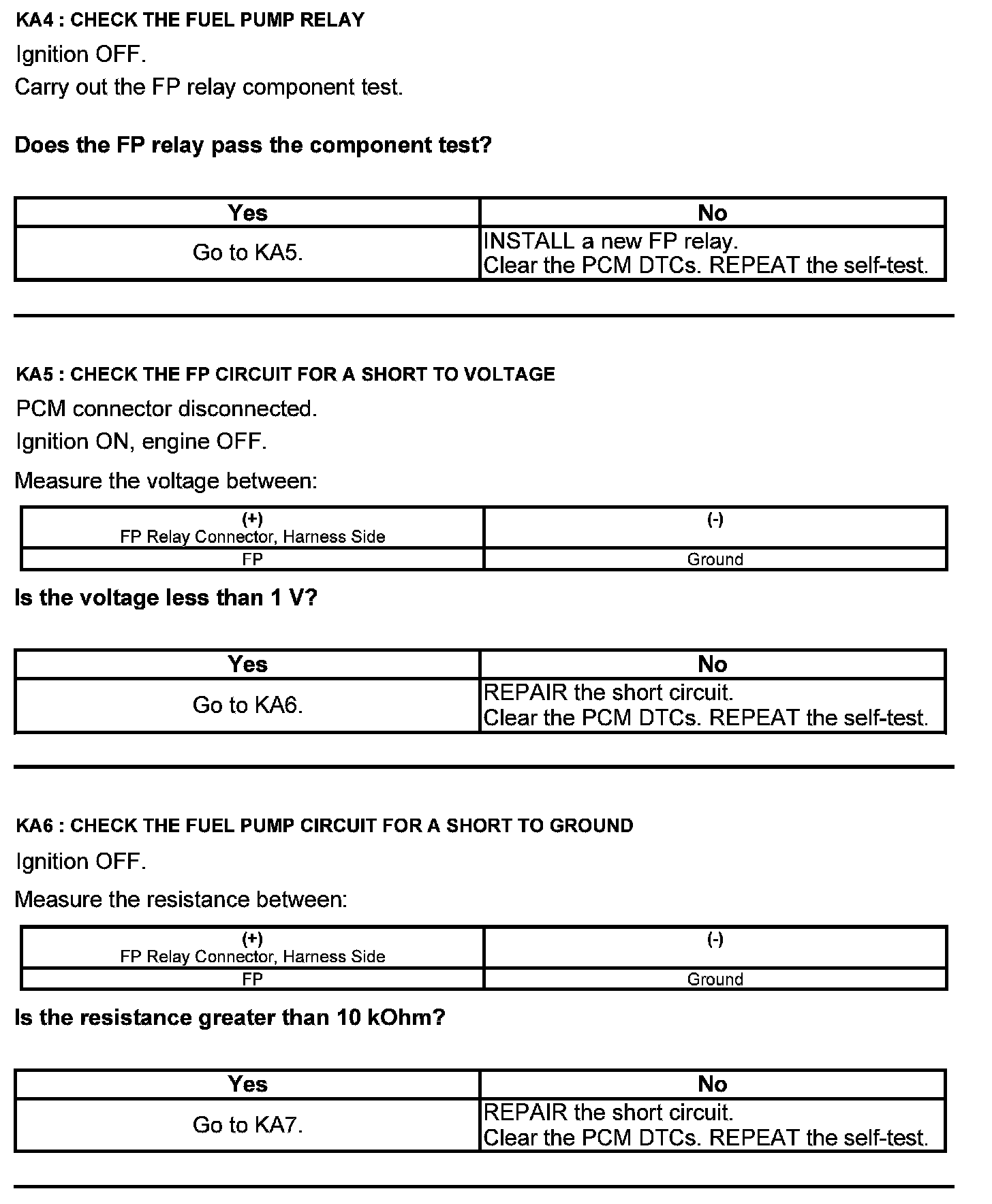

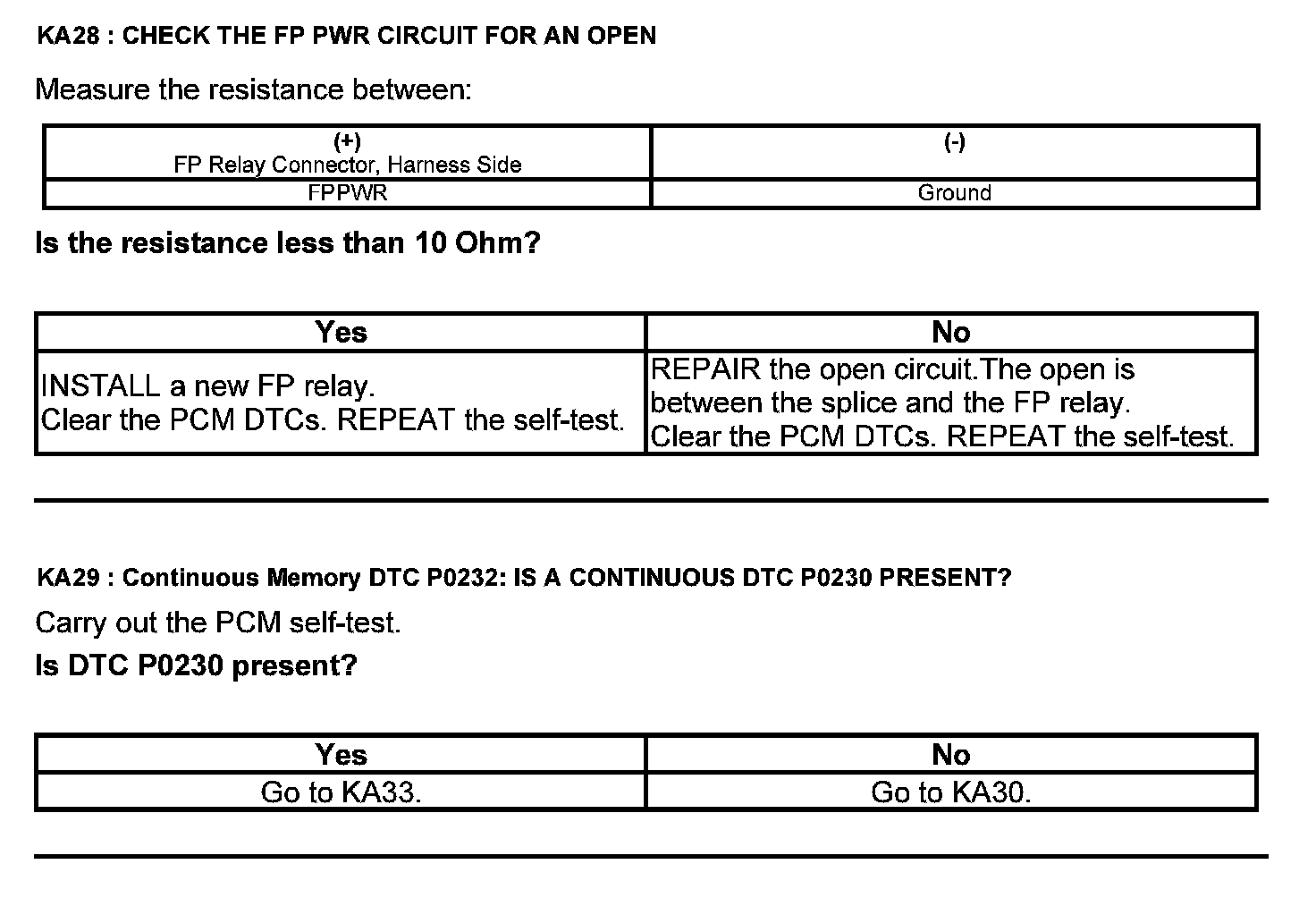

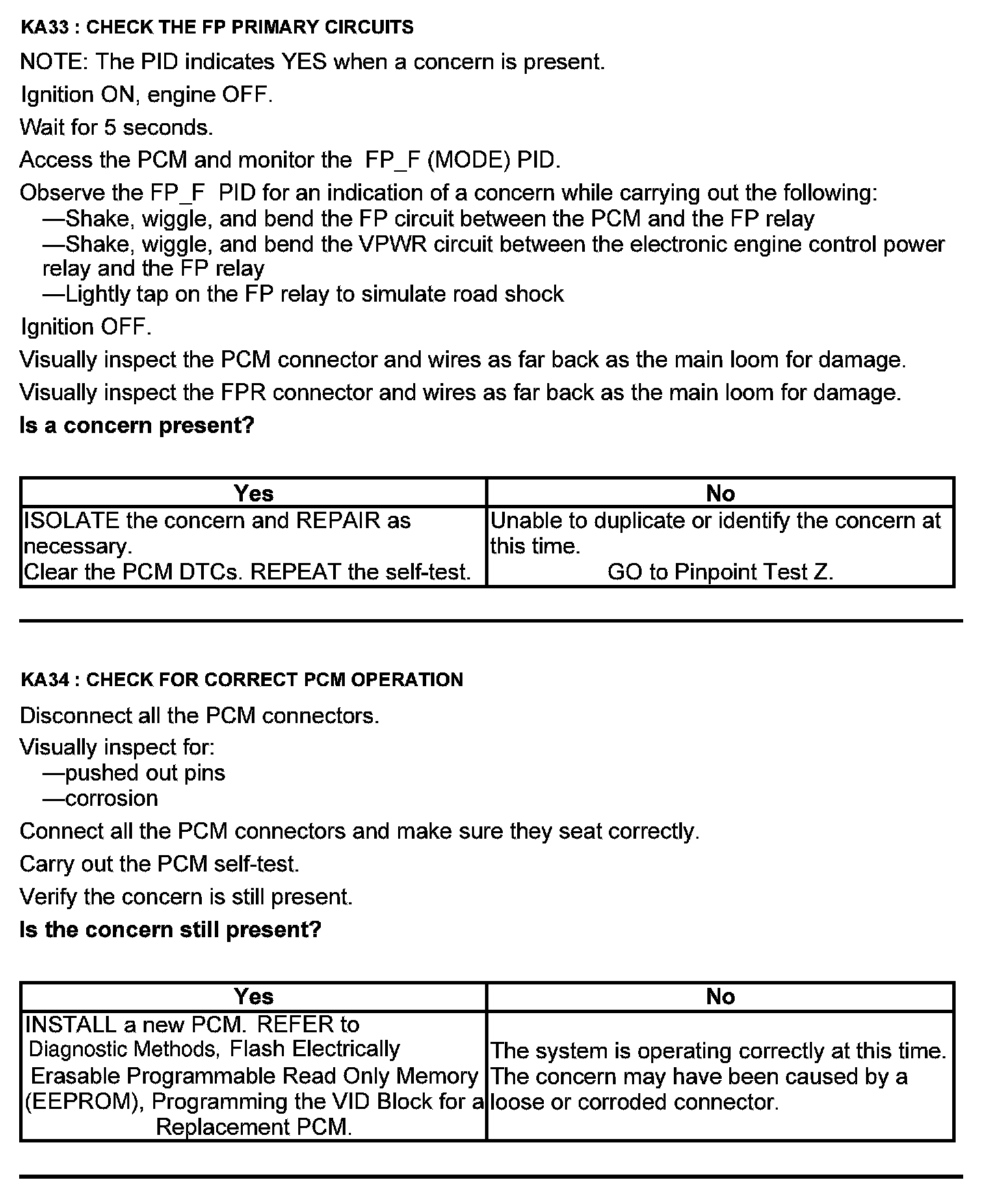

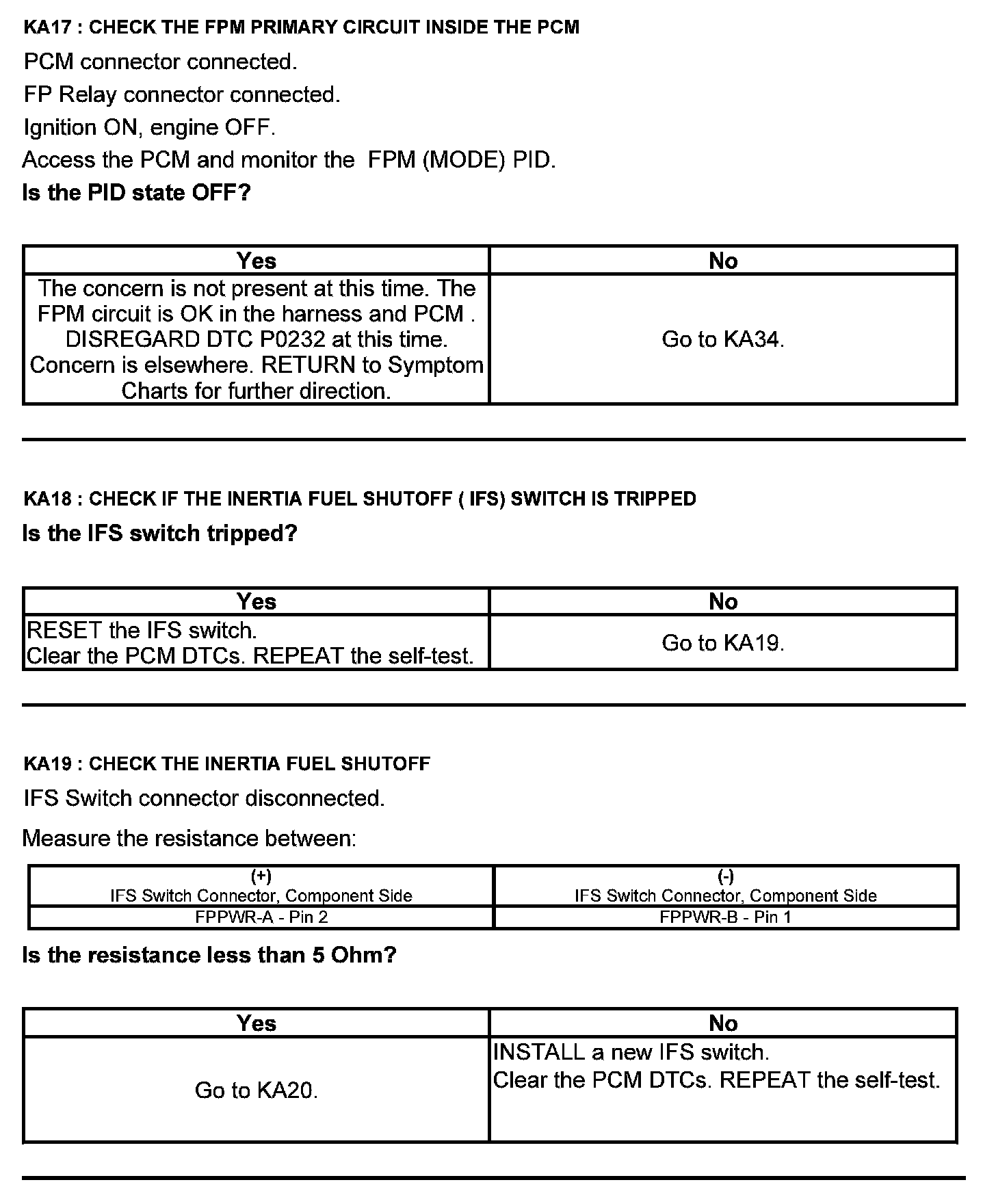

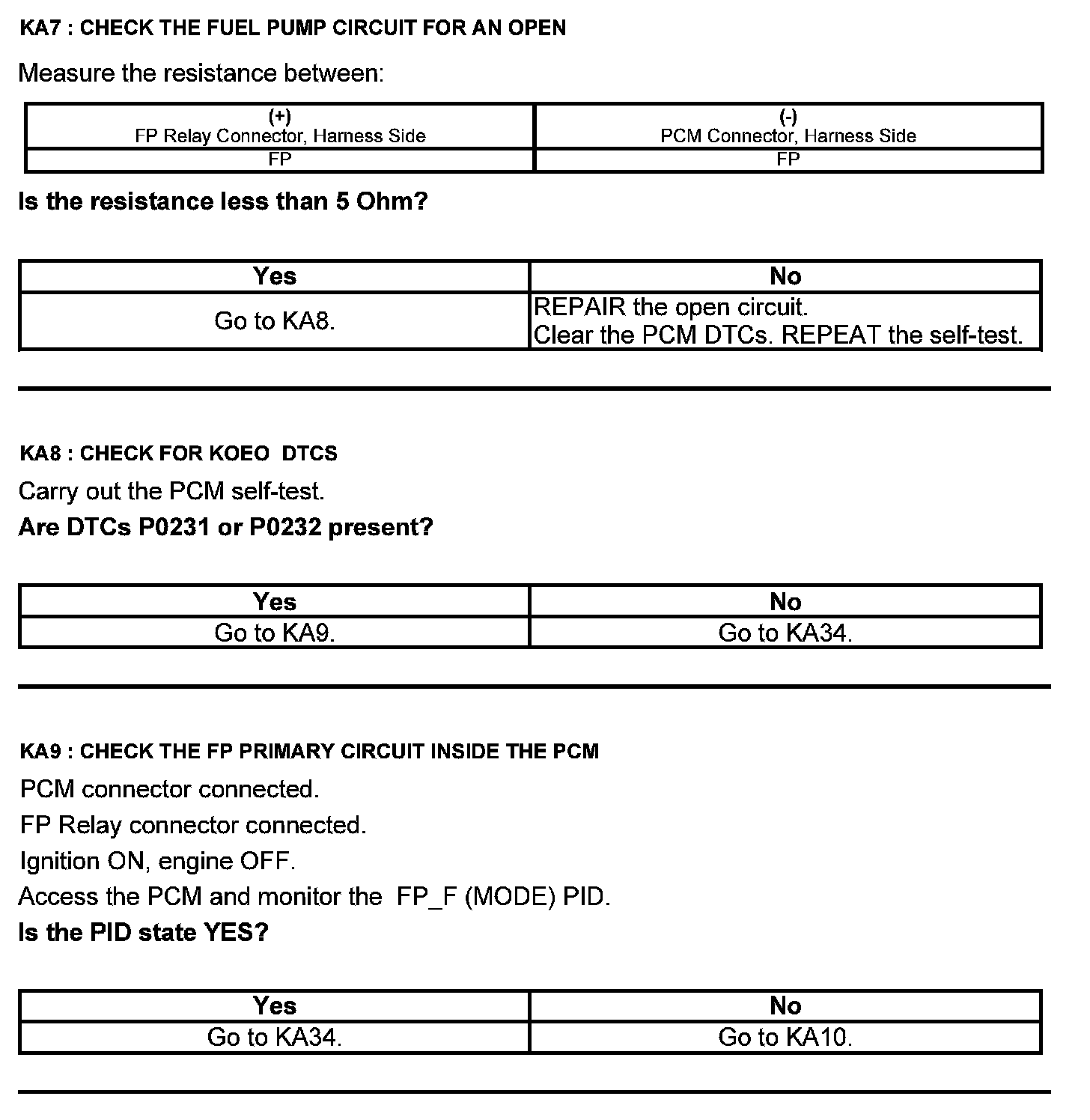

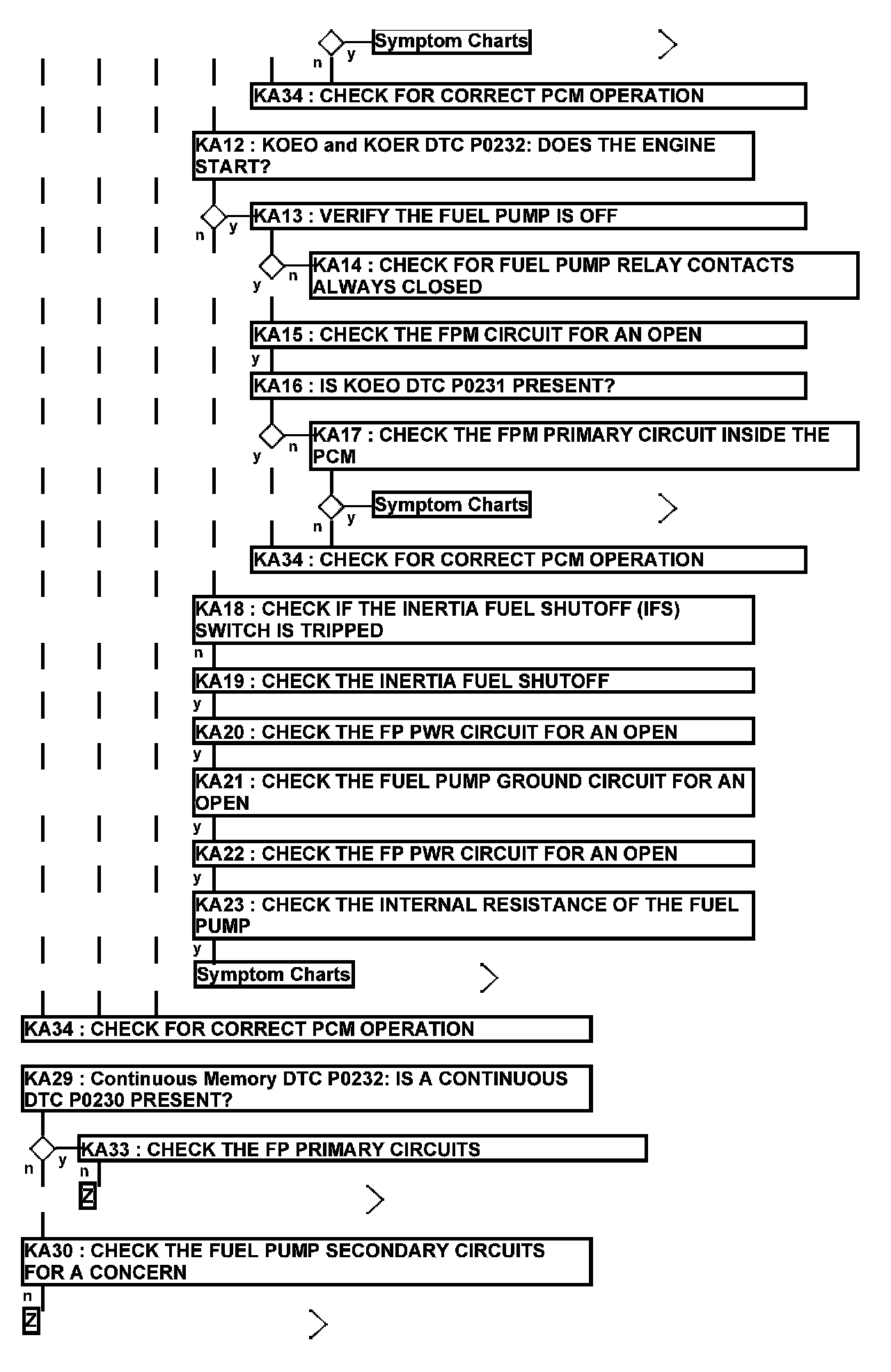

Test KA: Fuel Pump (FP) Relay



Fuel Pump (FP) Relay

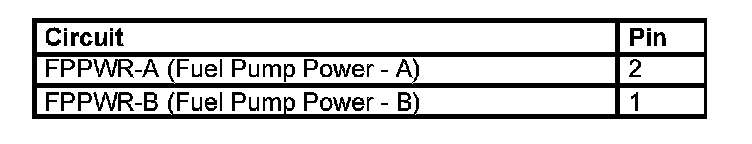

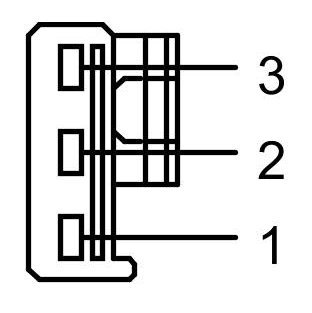

Inertia Fuel Shutoff (IFS) Switch Connector





Harness Side

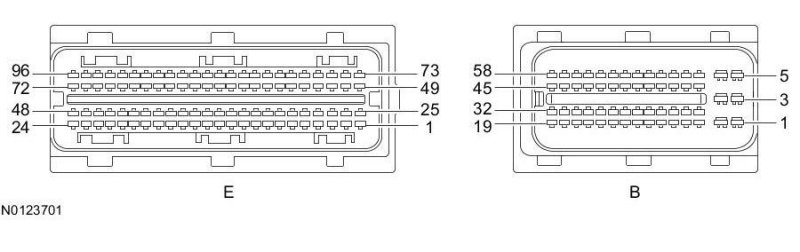

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
