Ignition Coil-On-Plug

Ignition Coil-On-Plug





Removal and Installation

1. Disconnect the 4 ignition coil-on-plug electrical connectors.

2. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
Remove the 4 bolts and the ignition coils.

- To install, tighten to 10 Nm (89 lb-in).


3. Inspect the coil boots for rips, nicks or tears. Remove and discard any damaged coil boots.
- To install, slide the new coil boot onto the coil until it is fully seated at the top of the coil.






4. To install, reverse the removal procedure.

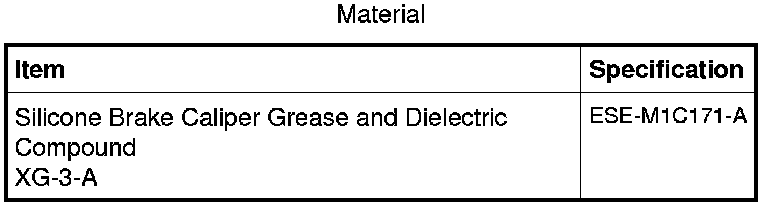

- Apply a small amount of dielectric compound to the inside of the ignition coil boots prior to attaching to the spark plugs.
