Quarter Window Glass: Service and Repair

Window Glass - Third Row









Removal and Installation

1. Remove the parcel shelf support panel.

2. NOTE: Have an assistant hold the rear quarter window glass.

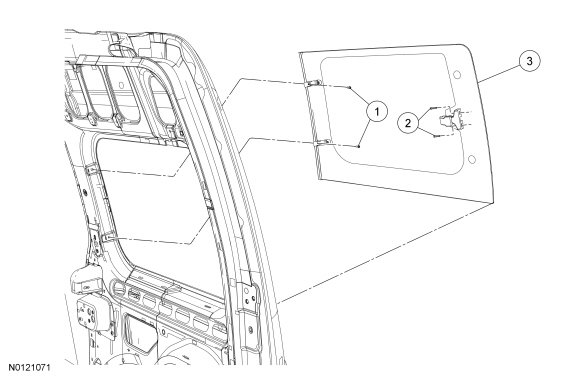

Remove the third row window glass in the following sequence:

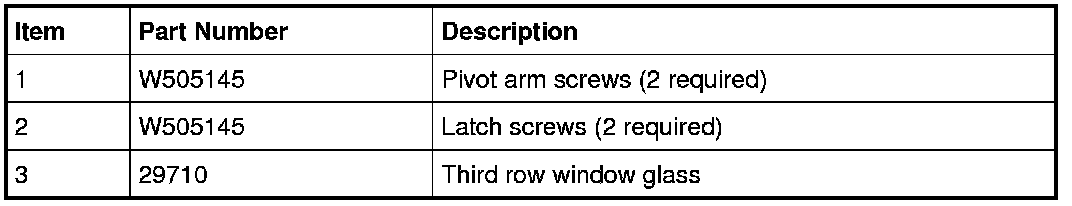

1. Remove the pivot arm screws.

2. Remove the latch screws.

3. Remove the third row window glass.


3. To install, reverse the removal procedure.
