Fuel Pump Driver Module (FPDM): Removal

NOTE: Removal steps in this procedure may contain installation details.

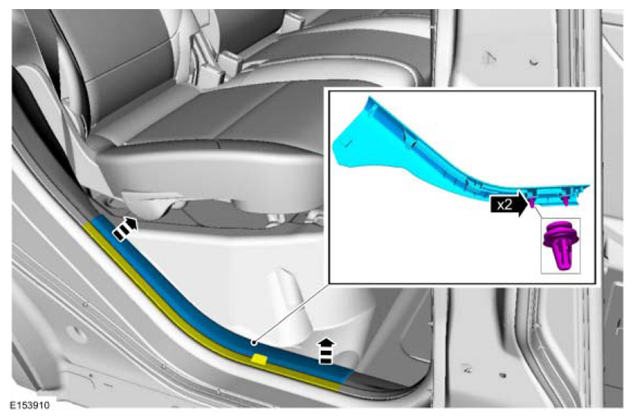

  1. G08408234Courtesy of FORD MOTOR CO.

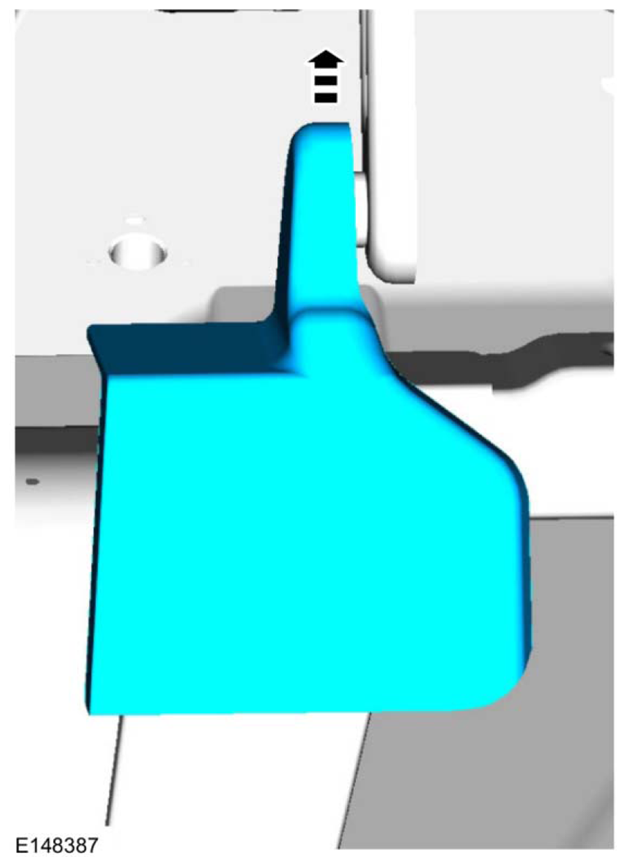

  2. G08408235Courtesy of FORD MOTOR CO.

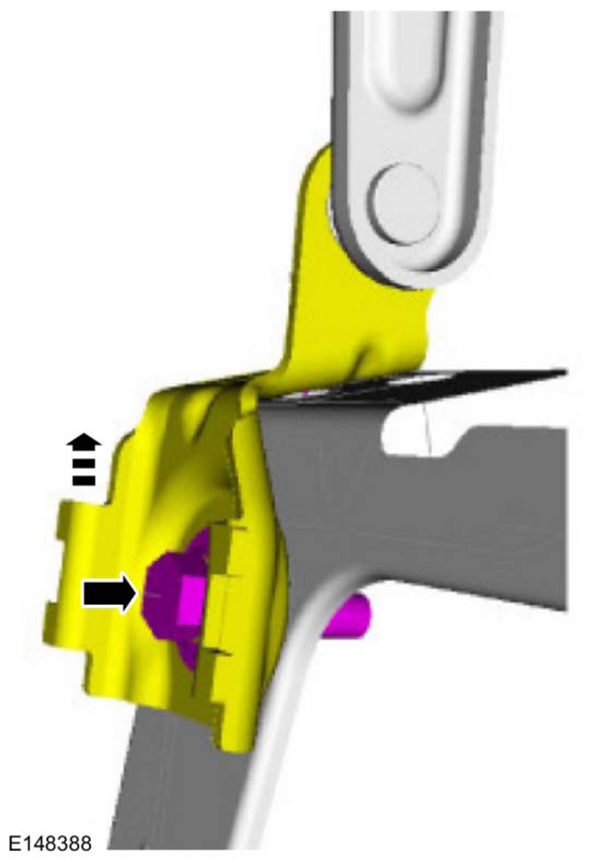

  3. Torque  : 40 Nm
    G08408236Courtesy of FORD MOTOR CO.
  4. NOTE: The FPDM  is held in place with an adhesive backing.
    G08408237Courtesy of FORD MOTOR CO.
