Tie Rod: Installation

NOTE: Place the steering gear at the center position and hold the steering gear rack while loosening or tightening the inner tie rod. Use an appropriate-sized wrench on the flat/teeth of the rack to resist rotation and to prevent damage during removal of the inner tie rod.

NOTE: Use an assistant to hold the steering gear rack on the Left Hand (LH) side when servicing the Right Hand (RH) inner tie rod.

NOTE: Crowfoot-style inner tie-rod tool shown in illustration.

General equipment: Inner tie-rod remover/installer.

Torque: 83 Nm

Courtesy of FORD MOTOR CO.
NOTE: Make sure to install the O-ring seal provided with the bellows boot kit or a leak may occur.

Courtesy of FORD MOTOR CO.
Apply the substance from the specified tube.
Material: Premium Long-Life Grease/XG-1-C or XG-1-K (ESA-M1C75-B)

Courtesy of FORD MOTOR CO.

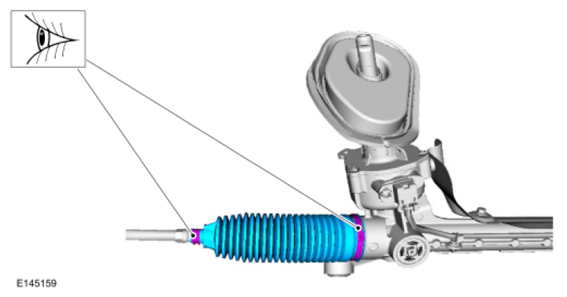

NOTE: Make sure the steering gear bellows is positioned correctly over the steering gear housing bead and the grooves in the inner tie-rod casting.
NOTE: Make sure the end of the steering gear bellows boot is positioned between the 2 grooves on the inner tie rod or an internal leak may occur.

Visual check. General equipment: Boot clamp installer.

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
NOTE: Install the outer tie rod the same number of turns recorded during removal.
1. Torque: 48 Nm
2. Torque: 90 Nm
Courtesy of FORD MOTOR CO.
If equipped.

Courtesy of FORD MOTOR CO.
Refer to: WHEEL AND TIRE .
Connect the battery ground cable.
Refer to: BATTERY DISCONNECT AND CONNECT - HYBRID ELECTRIC VEHICLE (HEV) .

Refer to: BATTERY DISCONNECT AND CONNECT - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV) .
Refer to: FRONT TOE ADJUSTMENT .
