Selector Lever Cable: Installation

Courtesy of FORD MOTOR CO.

Torque : 9 Nm

G08064467

Courtesy of FORD MOTOR CO.

Torque : 10 Nm

Torque : 25 Nm

G08064982

Courtesy of FORD MOTOR CO.

Torque : 7 Nm

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Refer to: FLOOR CONSOLE
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Torque : 10 Nm

Courtesy of FORD MOTOR CO.
Torque : 7 Nm

Courtesy of FORD MOTOR CO.
Refer to: AIR CLEANER

G08408571

Courtesy of FORD MOTOR CO.

Rotate the selector shaft lever clockwise until it stops.

Rotate the selector shaft lever counterclockwise 3 detents.

G08408574

Courtesy of FORD MOTOR CO.

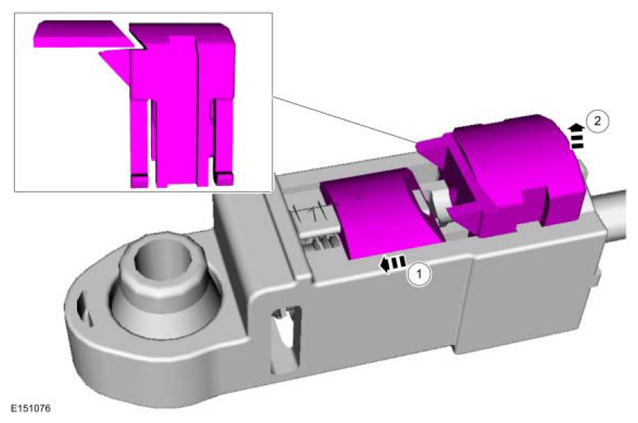

Move the slide to the left.

While holding the slide, position the adjuster lock upward.

G08408575

Courtesy of FORD MOTOR CO.

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Verify that the vehicle only starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE.
