Disassembly and Assembly of Subassemblies: Differential: Assembly

NOTE: Do not torque the 4 ring gear bolts.

Hand-start 4 ring gear bolts.

Courtesy of FORD MOTOR CO.
NOTE: Tighten all 16 bolts in 2 stages.

Torque:

Stage 1: 33 Nm

Stage 2: 60°

Courtesy of FORD MOTOR CO.

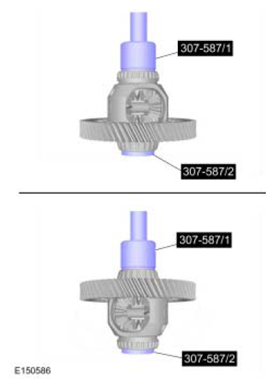

Special Tool(s): 307-587 Differential bearing installer and guide
General Equipment: Hydraulic Press

Courtesy of FORD MOTOR CO.
