Ignition Coil-On-Plug: Removal
WARNING:
Before beginning any service procedure in this information, refer to HEALTH AND SAFETY PRECAUTIONS
. Failure to follow this instruction may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: HEALTH AND SAFETY PRECAUTIONS .
- Refer to: AIR CLEANER
.NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
-
NOTE: If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.

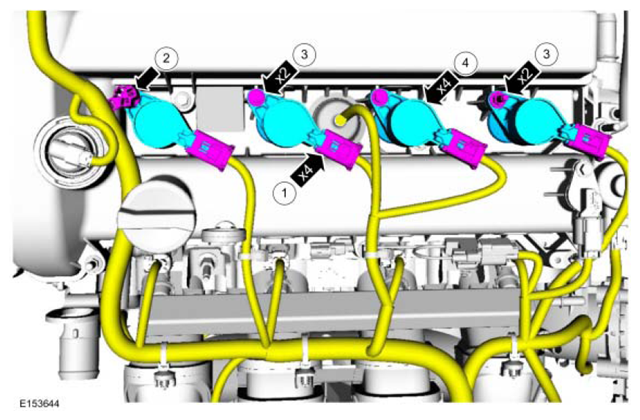

Depress the locking tab on the ignition coil-on-plug electrical connector, and disconnect the electrical connector from the ignition coil-on-plug.
- Torque : 10 Nm
-
NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.NOTE: When installing, apply a small amount of silicone brake caliper grease and dielectric compound to the inside of the ignition coil-on-plug boots before installation.
Material : Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
- Inspect the ignition coil-on-plug rubber boot for cracks, rips, or tears. Replace any damaged coil-on-plug rubber boots.
