Fuel Rail: Installation

  1. NOTE: Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.
    NOTE: Make sure that 8 new fuel injector O-ring seals and 4 new fuel injector retainer clips are installed.

    Material  : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil/XO-5W20-QSP (WSS-M2C945-A)

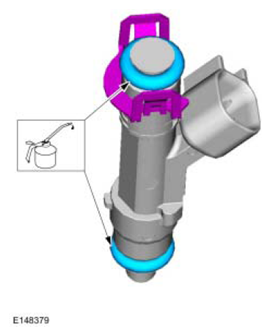

    G08408246Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
