Automatic Transaxle: Assembly: Transmission: Materials

Name	Specification
Ultra Silicone Sealant TA-29	-
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC	WSS-M2C938-A MERCON® LV

WARNING: Before beginning any service procedure, refer to HEALTH AND SAFETY PRECAUTIONS . Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
NOTE: When installing the bearing make sure to only press on the inner bearing race or damage may occur to the bearing.

General Equipment: Hydraulic Press

Courtesy of FORD MOTOR CO.
General Equipment: Hydraulic Press

Courtesy of FORD MOTOR CO.
Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV)

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.

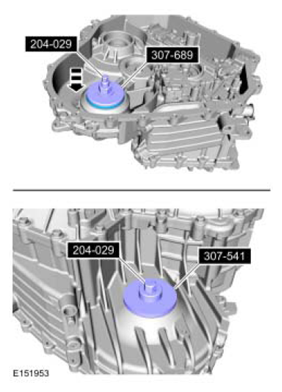

Special Tool(s): 204-029 Drawbar, 307-541 Installer, Transfer Gear Bearing , 307-689 Installer, Bearing Cup

Courtesy of FORD MOTOR CO.
Special Tool(s): 205-153 (T80T-4000-W) Handle , 307-693 Installer, Transfer Gear Bearing Cup

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.

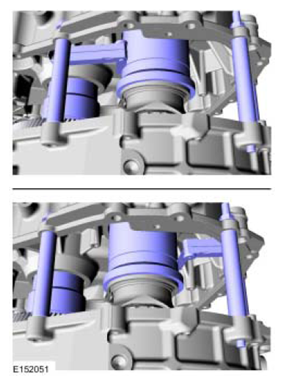

Special Tool(s): 307-591 Shim Gauge, Differential/Transfer Gear Bearing , 307-692 Tool, Transfer Gear Preload

Courtesy of FORD MOTOR CO.
Special Tool(s): 307-591 Shim Gauge, Differential/Transfer Gear Bearing

Courtesy of FORD MOTOR CO.
NOTE: Make sure that the silicone has been cleaned off the machined surface of the transmission case and the damper housing before installing the Differential/Transfer Gear Bearing Shim Gauge 307-591/3 (4 spacers) or the preload measurement may be inaccurate.

Special Tool(s): 307-591 Shim Gauge, Differential/Transfer Gear Bearing

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Special Tool(s): 307-591 Shim Gauge, Differential/Transfer Gear Bearing
Torque: 24 Nm

Courtesy of FORD MOTOR CO.
Rotate the transfer shaft and the differential several times to seat the bearing cups.

Courtesy of FORD MOTOR CO.
Measure and record the smallest and largest preload gap on the Shim Gauge, Differential/Transfer Gear Bearing 307-591/1. Average the 2 measurements to get the thickness of the differential bearing preload shim. For the differential bearing preload shim part number.
Refer to: SPECIFICATIONS .

General Equipment: Feeler Gauge

Courtesy of FORD MOTOR CO.
Measure and record the smallest and largest preload gap on the Transfer Gear Preload Tool 307-692. Average the 2 measurements to get the thickness of the transfer gear bearing preload shim. For the transfer bearing preload shim part number.
Refer to: SPECIFICATIONS .

General Equipment: Feeler Gauge

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Special Tool: 307-693 Transfer Gear Bearing Cup Installer
Special Tool(s): 205-153 (T80T-4000-W) Handle, 307-693 Installer, Transfer Gear Bearing Cup

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.

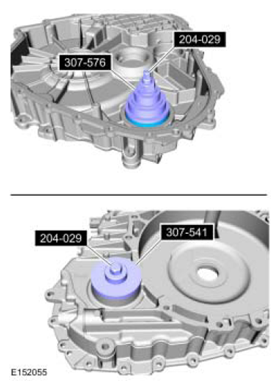

Special Tool(s): 204-029 Drawbar , 307-541 Installer, Transfer Gear Bearing, 307-576 Bearing Cup Installer

Courtesy of FORD MOTOR CO.
Special Tool(s): 307-435 Installer, Extension Housing Seal

Courtesy of FORD MOTOR CO.
Special Tool(s): 205-153 (T80T-4000-W) Handle, 307-626 Installer, Differential Seal

Courtesy of FORD MOTOR CO.
Torque: 11 Nm

Courtesy of FORD MOTOR CO.
Torque: 11 Nm

Courtesy of FORD MOTOR CO.
Special Tool(s): 205-153 (T80T-4000-W) Handle , 307-626 Installer, Differential Seal

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Material: Ultra Silicone Sealant / TA-29

Courtesy of FORD MOTOR CO.
Tighten in a crisscross pattern.
Torque: 25 Nm

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
