Steering Gear: Installation

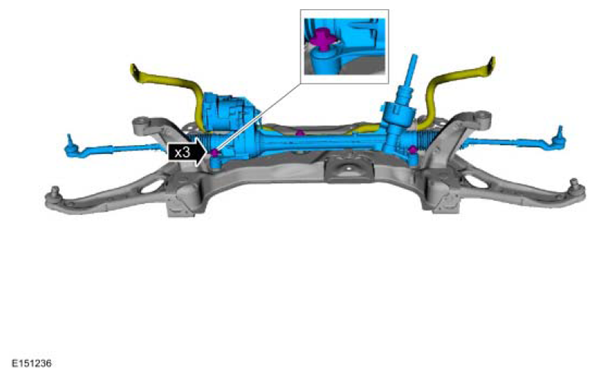

Finger tight at this stage.

Courtesy of FORD MOTOR CO.

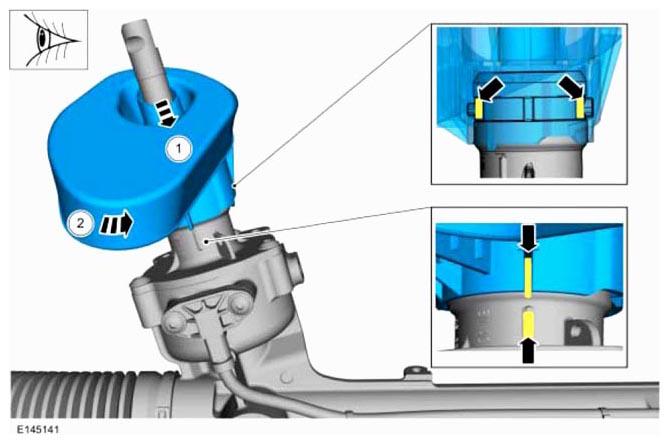

G08062158

Courtesy of FORD MOTOR CO.

Torque:
Stage 1: 110 Nm

Stage 2: Loosen: 360°

Stage 3: 56 Nm

Stage 4: 180°
Torque:
Stage 1: 110 Nm

Stage 2: Loosen: 360°

Stage 3: 56 Nm

Stage 4: 180°

Torque:

Stage 1: 110 Nm

Stage 2: Loosen: 360°

Stage 3: 56 Nm

Stage 4: 180°

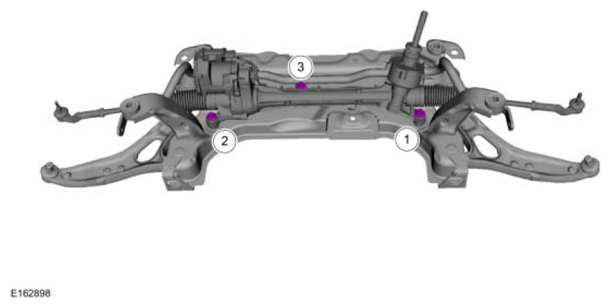

G08408082

Courtesy of FORD MOTOR CO.

Refer to: FRONT SUBFRAME .
