Anti-Lock Brake System (ABS) Module: Notes
NOTE:
On vehicles equipped with adaptive cruise control, the ABS module and Hydraulic Control Unit (HCU) are serviced as an assembly.

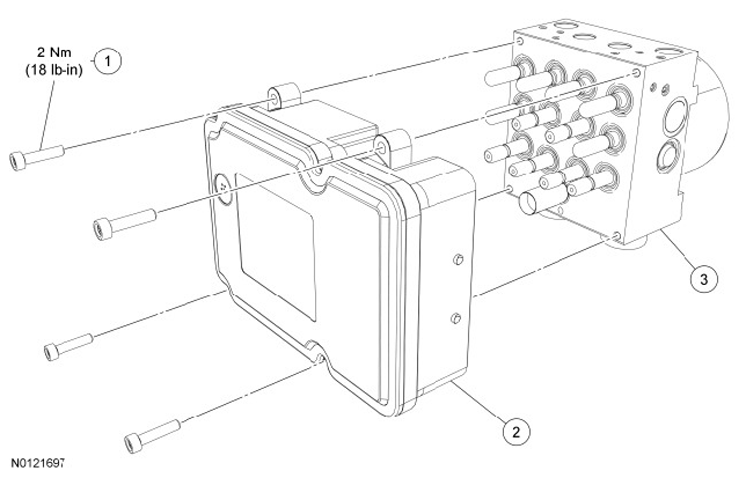

| Item | Part Number | Description |
|---|---|---|
| 1 | W302577 | ABS module screw (4 required) (also part of 2C219) |
| 2 | 2C219 | ABS module |
| 3 | 2C215 | Hydraulic Control Unit (HCU) (vehicles not equipped with adaptive cruise control) |
