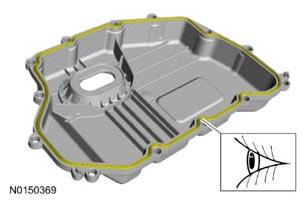

Main Control Cover: Installation

All vehicles

2. NOTE: Install the studbolts in the locations noted during removal.
   • Tighten to 12 Nm (106 lb-in).

3. Vehicles equipped with 1.6L engine

5. Vehicles equipped with 2.0L engine

6. Vehicles equipped with 2.0L and 2.5L eninge

7. All vehicles

9. Install the ACL assembly. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
10. Fill the transmission with transmission fluid. Refer to TRANSMISSION FLUID DRAIN AND REFILL .
