Partially mated connectors

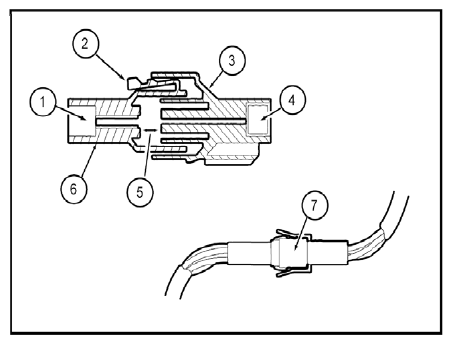

  1. = Seal
  2. = Displaced tab
  3. = Female half
  4. = Seal
  5. = Intermittent contact
  6. = Male half
  7. = Intermittent contact

Lock may be displaced into an unlocked position; pull on the connector to verify the lock.

Fig 1: Identifying Partially Mated Connectors
G08741515Courtesy of FORD MOTOR CO.
