OEM Ground Distribution: Grounds: G204

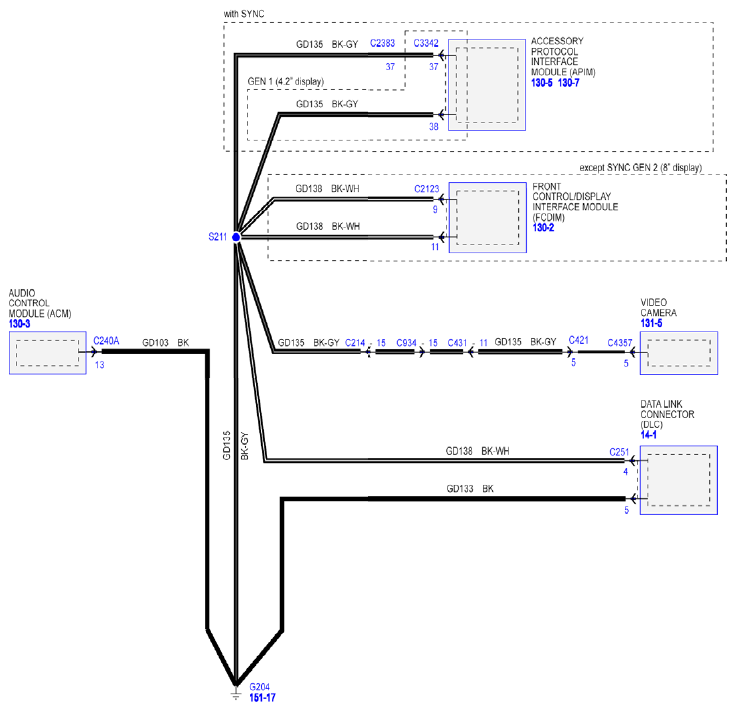

Fig 1: Ground Circuit Diagram - G204

G08741540

Courtesy of FORD MOTOR CO.
