Generator - 2.0L GTDI: Installation

NOTE: This step is only necessary when installing a new component.

If removed, finger tight.

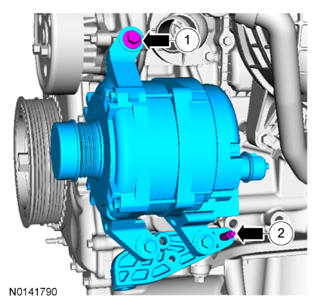

1. Finger tight.
2. Tighten to 7 Nm (62 lb-in).
Tighten to 25 Nm (18 lb-ft).

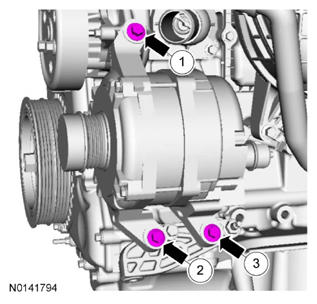

1. Tighten to 25 Nm (18 lb-ft).
2. If removed, tighten to 25 Nm (18 lb-ft).
3. If removed, tighten to 25 Nm (18 lb-ft).
Tighten to 17 Nm (150 lb-in).
Install the A/C compressor. Refer to CLIMATE CONTROL SYSTEM - ELECTRONIC MANUAL TEMPERATURE CONTROL (EMTC) or CLIMATE CONTROL SYSTEM - DUAL AUTOMATIC TEMPERATURE CONTROL (DATC) .
Visual check.
Connect the battery ground. Refer to BATTERY, MOUNTING AND CABLES .
