Generator - 2.5L: Installation
-

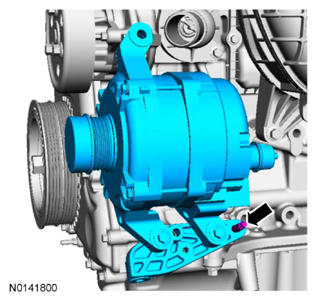

NOTE: This step is only necessary when installing a new component.
If removed, finger tight.

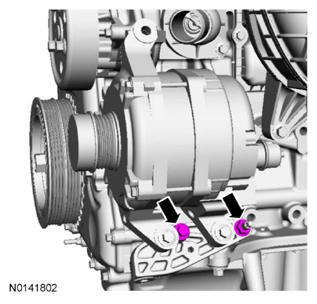

- Tighten to 7 Nm (62 lb-in).
- Tighten to 25 Nm (18 lb-ft).
- Tighten to 25 Nm (18 lb-ft).
- If removed, tighten to 25 Nm (18 lb-ft).
- Tighten to 17 Nm (150 lb-in).
- Tighten to 9 Nm (80 lb-in).
- Tighten to 25 Nm (18 lb-ft).

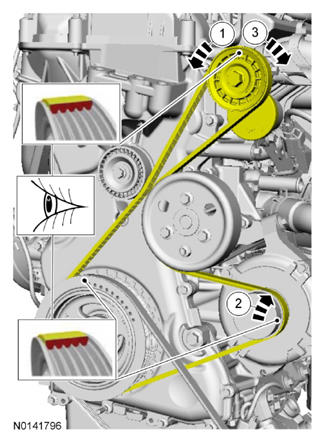

- Install the A/C compressor belt. Refer to ACCESSORY DRIVE .
- Visual check.
- Connect the battery ground. Refer to BATTERY, MOUNTING AND CABLES .
