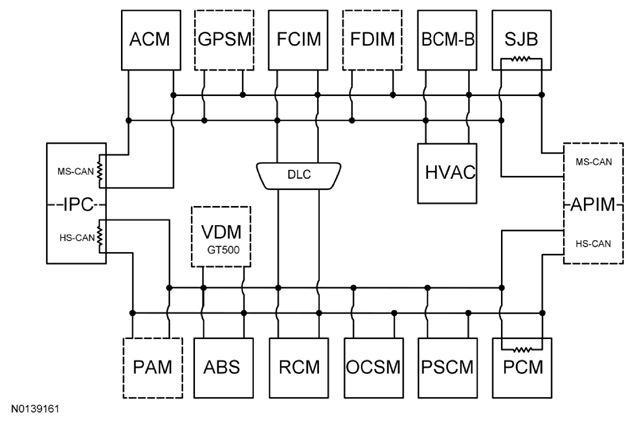

Network Topology
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Module Name | Network Type | Termination Module |
|---|---|---|
| ABS module | HS-CAN | No |
| Accessory Protocol Interface Module (APIM) (if equipped) | HS-CAN MS-CAN | No |
| Audio Front Control Module (ACM) | MS-CAN | No |
| Body Control Module B (BCM-B) | MS-CAN | No |
| Front Controls Interface Module (FCIM) | MS-CAN | No |
| Front Display Interface Module (FDIM) (without navigation) | MS-CAN | No |
| Global Positioning System Module (GPSM) (if equipped) | MS-CAN | No |
| HVAC module | MS-CAN | No |
| Instrument Panel Cluster (IPC) (gateway module) | HS-CAN MS-CAN | Yes Yes |
| Occupant Classification System Module (OCSM) | HS-CAN | No |
| Parking Aid Module (PAM) | HS-CAN | No |
| PCM | HS-CAN | Yes |
| Power Steering Control Module (PSCM) | HS-CAN | No |
| Restraints Control Module (RCM) | HS-CAN | No |
| Smart Junction Box (SJB) | MS-CAN | Yes |
| Vehicle Dynamics Module (VDM) (GT500) | HS-CAN | No |
