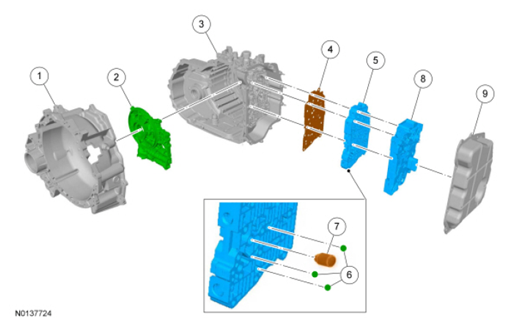

Main Control Components

G08411525
Item Description
1 Torque converter housing
2 Pump assembly
3 Transmission case
4 Main control-to-transmission case separator plate
5 Valve body
6 Check balls
7 Solenoid damper (SSA)
8 Solenoid body assembly
9 Main control cover
