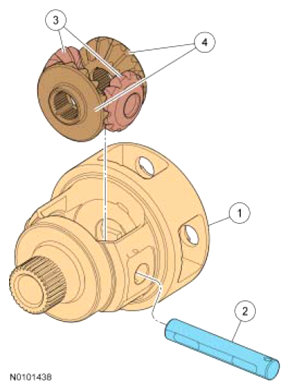

Differential Exploded View

G08411567
Item Part Number Description
1 7F465 Differential housing
2 - Pinion shaft
3 - Pinion gears
4 - Side gears
