Differential Gear Assembly: Disassembly

  1. Pin punch. Discard the specified component. Follow local disposal regulations.
    G08412237
  2. G08412238
  3. NOTE: Do not mix up the washers from the side or spider gears that they were originally assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.
    1. Side gear
    2. Spider gear
      G08412239

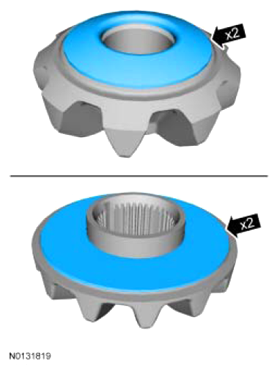

  4. NOTE: Do not mix up the washers from the side or spider gears that they are assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.
    G08412240
